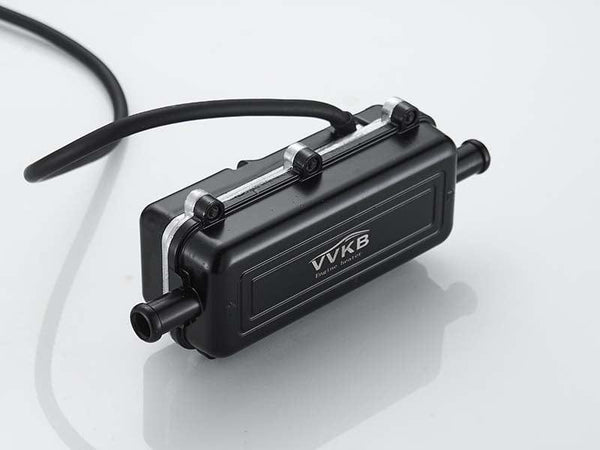

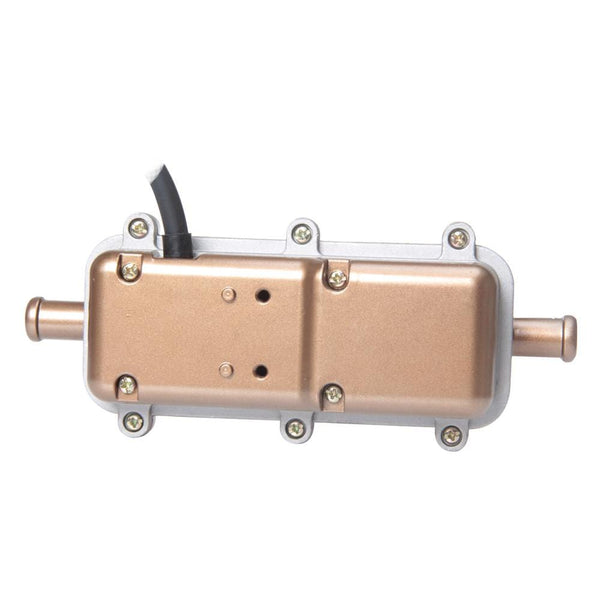

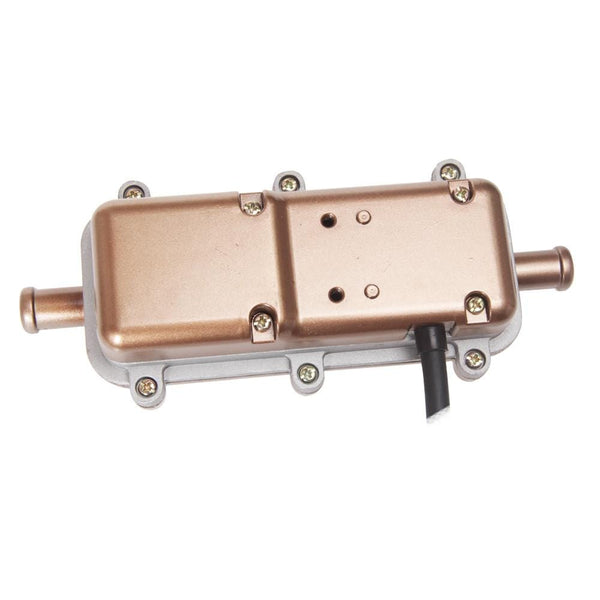

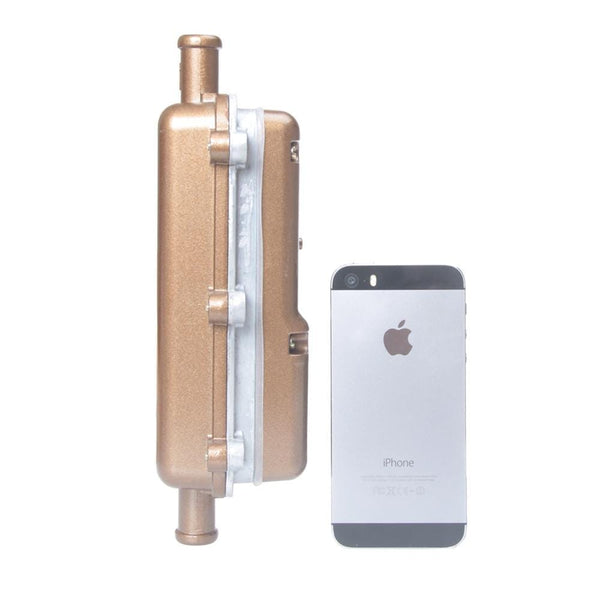

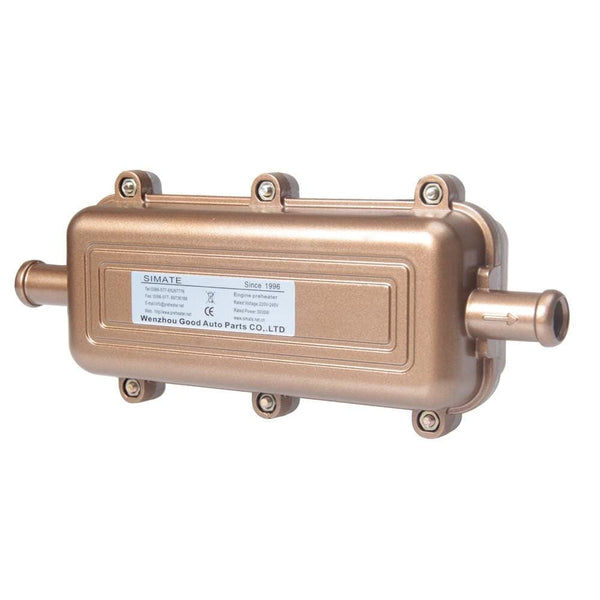

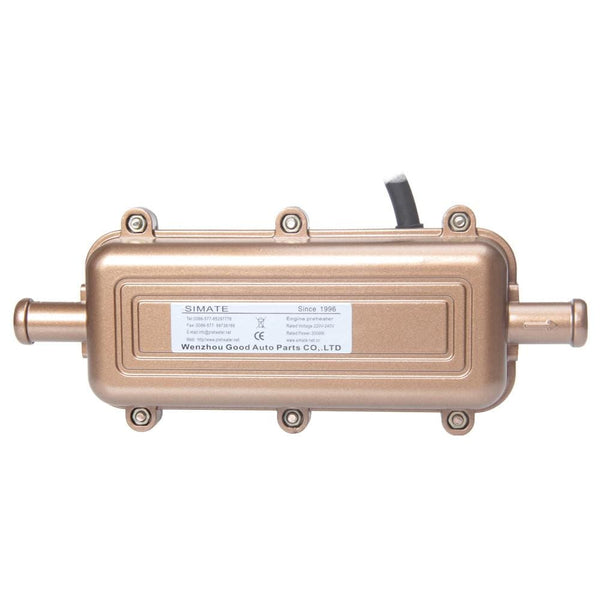

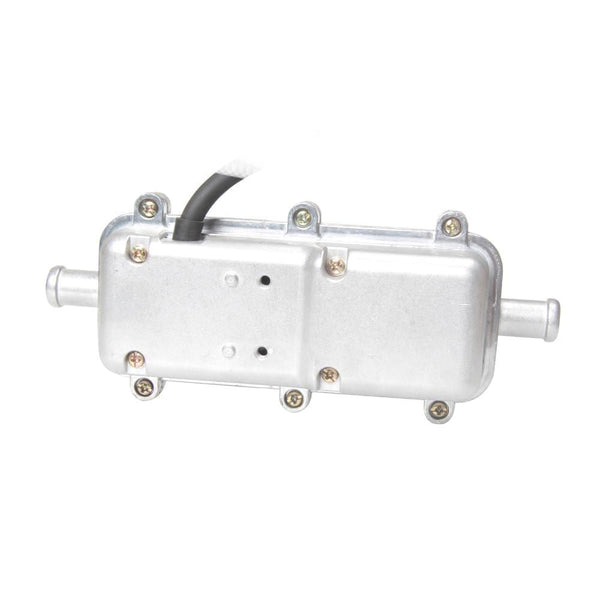

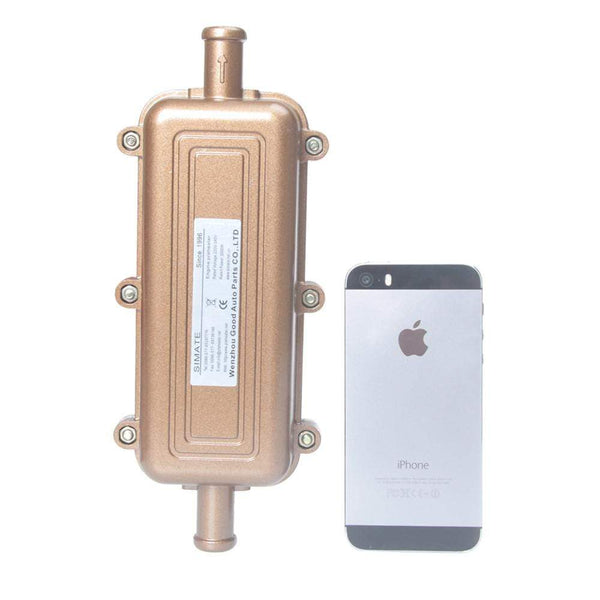

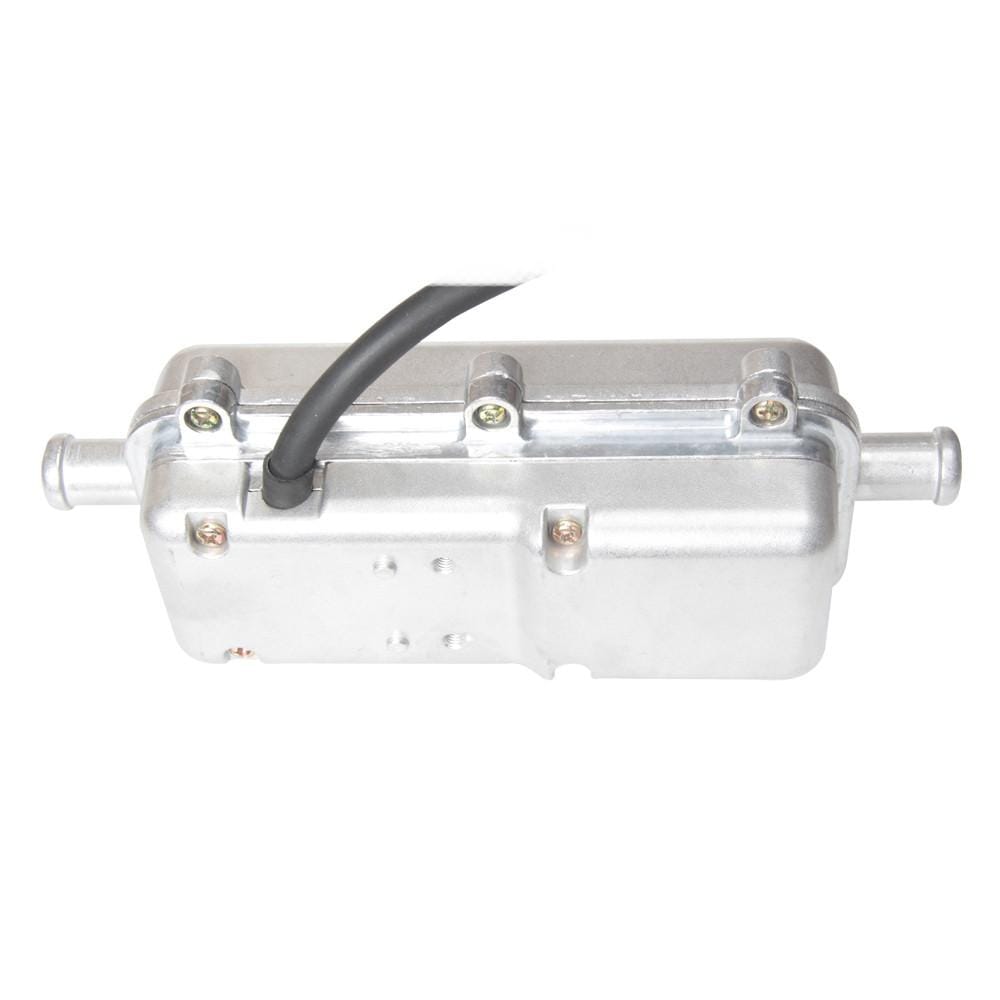

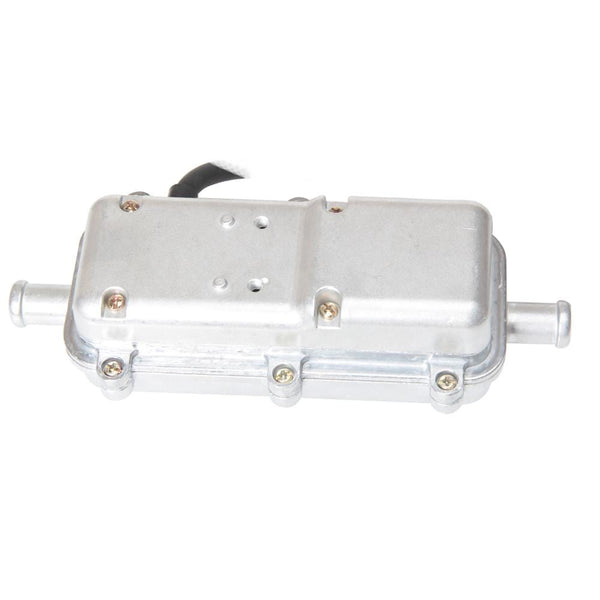

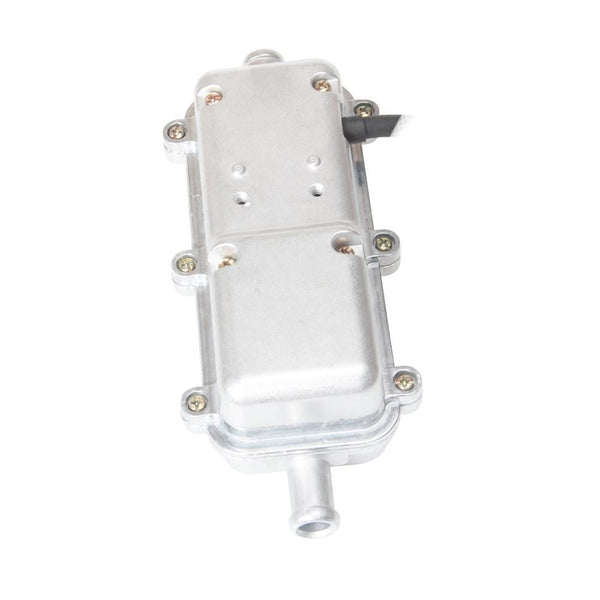

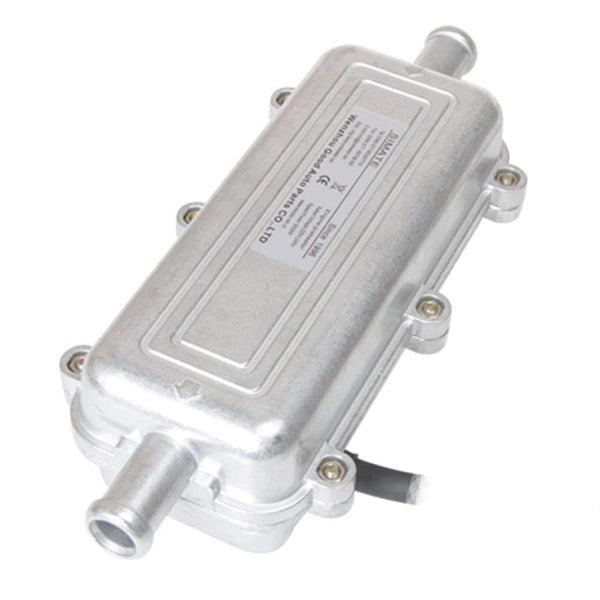

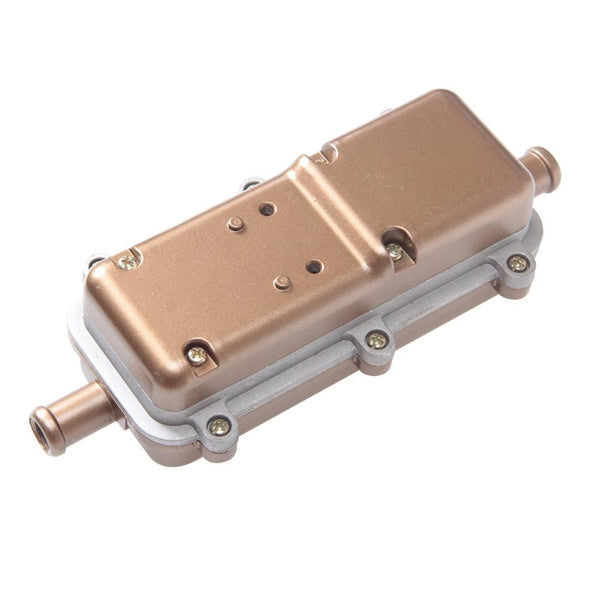

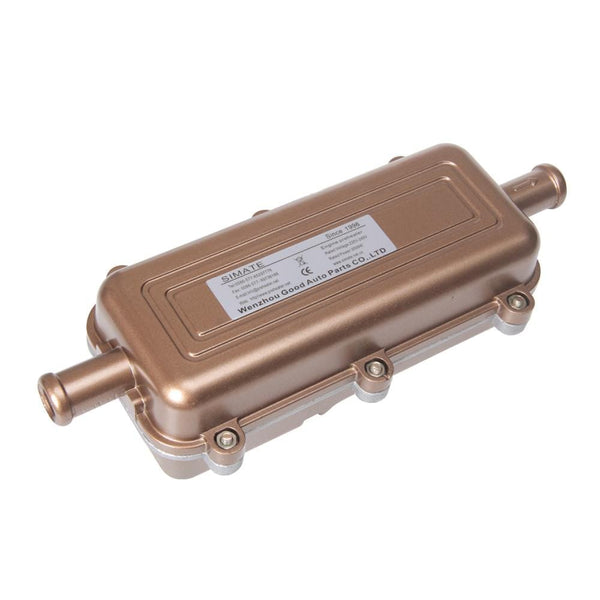

VVKB Car Heater With the Pump S-8005 110V/230V Engine Heater

Regular price $126.52 Sale price $166.87
On Sale

voltage
power

43 in stock

Benefits of Vvkb Engine Block Heater Titan-P4

  • Optimized Water Port Design: The Titan-P4 engine heater features uniquely positioned inlet and outlet water ports, providing enhanced compatibility with various vehicle systems, ensuring an even more efficient heating flow for engines.
  • Universal Fit for Heavy Vehicles: Designed to cater to tractors, large trucks, off-road vehicles, and various engineering machinery, the Titan-P4 offers a versatile solution for any heavy-duty vehicle needing reliable engine preheating.
  • Robust Heating Capability: With power options ranging from 1000W to 2500W, Titan-P4 heats up your engine quickly, ensuring immediate readiness even in the coldest temperatures.
  • Integrated Water Pump: The built-in water pump promotes a consistent heat distribution throughout the engine, improving performance and extending the life of your engine.
  • Durable and Reliable: The Titan-P4 features a durable casing made from high-quality aluminum alloy, designed to withstand harsh conditions. Its aluminum die-cast heating elements are reliable, ensuring your investment is well-protected.

Data of Vvkb Engine Block Heater Titan-P4

Rated Voltage 110V/230V
Rated Power 1000W/1500W/2000W/2500W
Rated Frequency 60Hz/50Hz
Weight 2.6 lbs (1.2 kg)
Dimension 222mm X 65mm X 90mm (8.7” X 2.6” X 3.5”)
Interface Diameter 5/8" (16mm)
With Built-in Pump Yes
Pump Type Magnetic Pump
Pump Life 5000hr
Pump Flow 900L/Hr
Built-in Thermostat Two thermostats 45℃ - 65℃(113℉ - 149℉)
Waterproof Rating IP X4
Heating Tube Material and Process Stainless steel, aluminum die-casting
Heating Tube Life 8000hr
Shell Material Aluminum alloy die-casting
Shell Treatment Process Plastic painting and laser engraving
Certification TUV, CE, RoHS, FCC
Installation Method Connected in series or parallel to coolant hoses
Warranty One year






      Engine Block Heater Titan-P4 Introduction

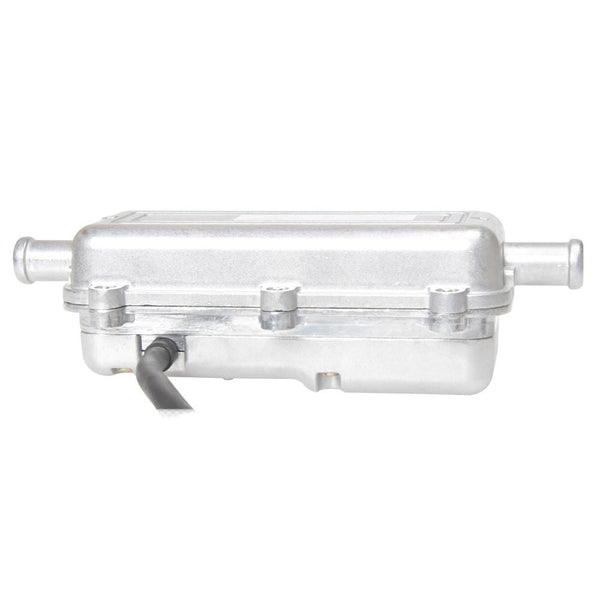

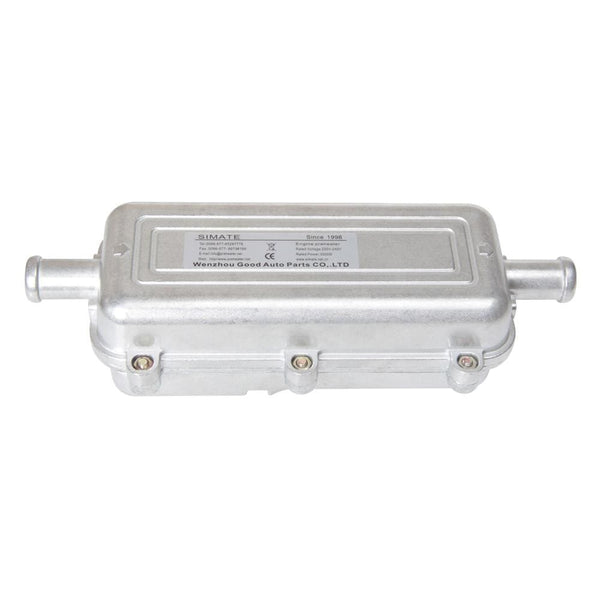

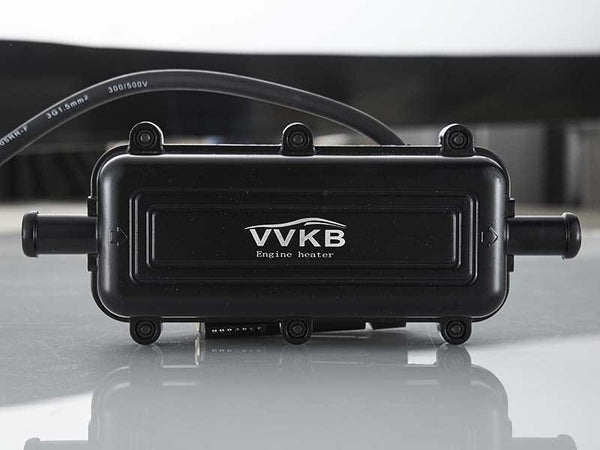

      The video features the Titan-P4 with a silver casing; however, we updated the color of the Titan-P4 casing to black in 2019. Despite this change in appearance, the heater's specifications and performance remain largely unchanged.

      Engine block heater Titan-P3 installation diagram

      Installation Position of Engine Heater Titan-P4

      The Titan-P4 is mounted in exactly the same position as the Titan-P3 and can also be mounted in series or parallel.

      Vvkb Engine Heater Titan-P4 External Dimensional

      Titan-P4 External Dimensional

      The engine block heater Titan-P4 is our largest sized engine heater with a maximum power of 2500W, it is perfect for larger vehicles.

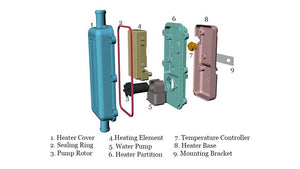

      Vvkb Engine Heater Titan-P4 Structural Drawing

      Vvkb Engine Heater Titan-P4 Structural Drawing

      The structural diagram of the Vvkb engine block heater Titan-P4 provides a clear visual representation. Its design is very similar to that of the Titan-P3.

      Vvkb Engine Block Heater Titan-P4 Inlet & Outlet Schematic

      Vvkb Engine Block Heater Titan-P4 Inlet & Outlet Schematic

      The 180-degree inlet and outlet design allows for a faster flow of coolant to heat the engine quickly.
