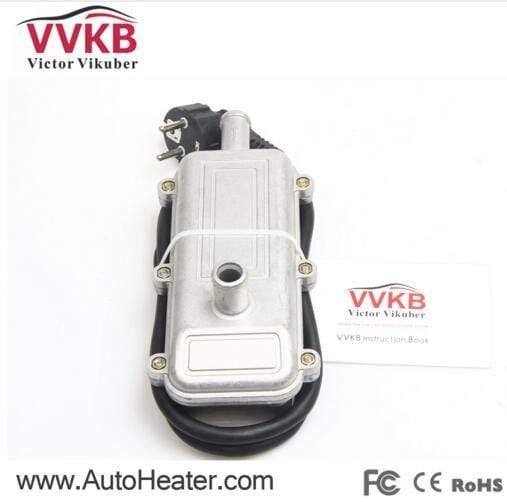

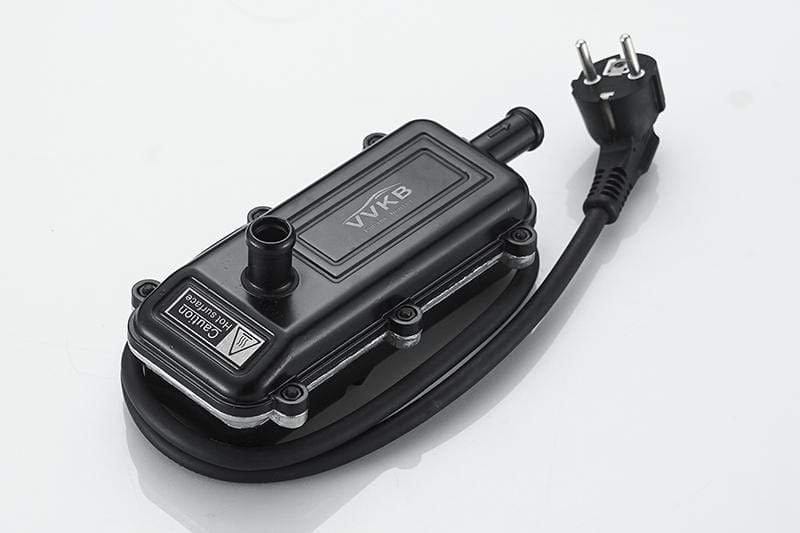

VVKB Hose Heater Titan-P3 110V/230V truck heater

Write a review

$138.88

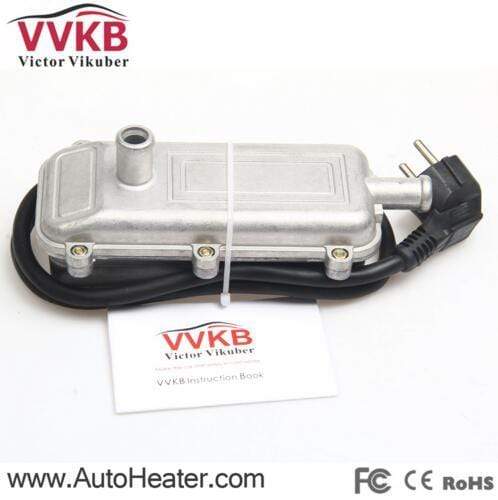

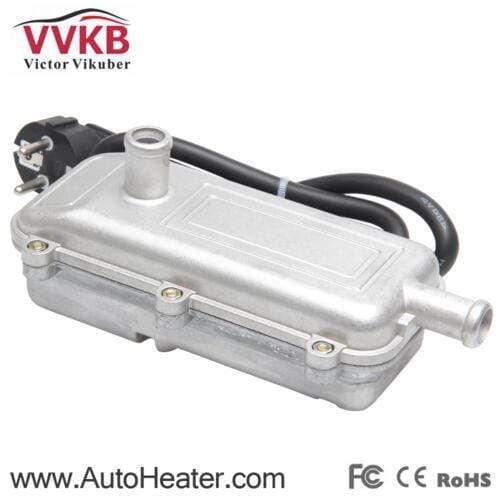

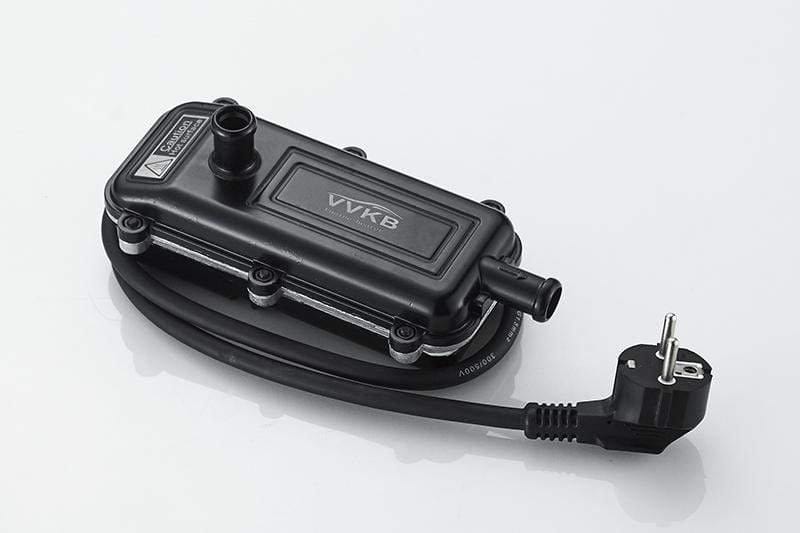

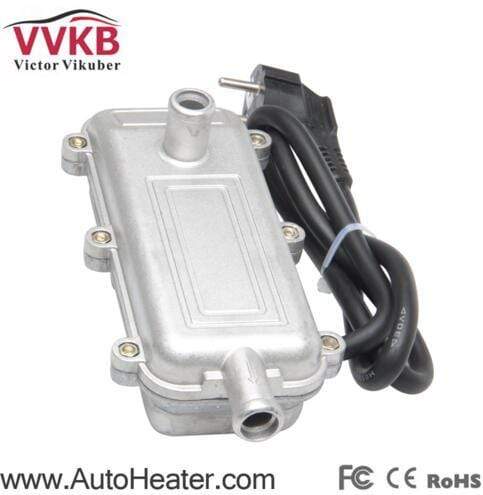

VVKB Engine Block Heater Titan-P3 110V/230V

When the Titan-P5 went on sale, a small percentage of customers installed it in an elevated position—higher than the engine. These heaters were more prone to failure. To solve this problem, our engineers redesigned the heater and called it the Titan-P3.

The new design incorporated an aluminum block containing the electric heater tube, which is mounted on a base with two ceramic housing thermostats. If there is a lack of coolant inside the heater, when the temperature rises in this tube, the temperature is transmitted directly to the thermostats; then power is cut off by them.

The Titan-P3 engine block heater has been on the market since 2005 and is a top-selling product among consumers. The Titan-P3 is suitable for use on trucks, tractors and boats as well as generator sets and other equipment.

Since its release, more than 2 million units of the device have been sold.

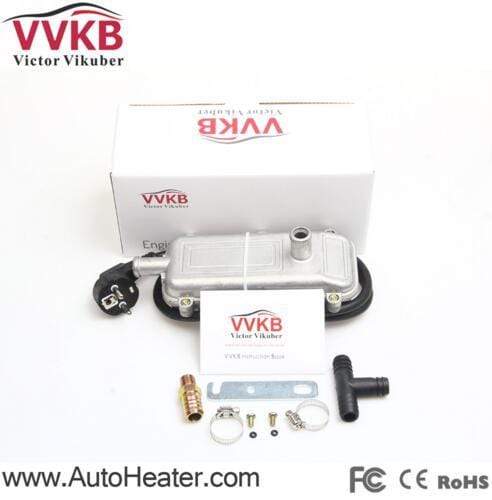

We will provide you with American standard, European standard and Australian standard plugs.

Advantages of Vvkb engine block heater:

Easy to install
Vibration resistant
With two thermostats
With built-in water pump
Wide range of applications
All accessories are replaceable
Multiple power options available
Aluminum die-cast electric heaters with extra long service life.

DATA OF VVKB ENGINE BLOCK HEATER TITAN-P3

Rated Voltage	110V/230V
Rated Power	1000W/1500W/2000W/2500W
Rated Frequency	60Hz/50Hz
Weight	2.6 lbs (1.2 kg)
Dimension	205mm X 83mm X 90mm (8.1” X 3.3” X 3.5”)
Interface Diameter	5/8" (16mm)
With Built-in Pump	Yes
Pump Type	Magnetic Pump
Pump Life	5000hr
Pump Flow	900L/Hr
Built-in Thermostat	Two thermostats 45℃ - 65℃(113℉ - 149℉)
Waterproof Rating	IP X4
Heating Tube Material and Process	Stainless steel, aluminum die-casting
Heating Tube Life	8000hr
Shell Material	Aluminum alloy die-casting
Shell Treatment Process	Plastic painting and laser engraving
Certification	TUV, CE, RoHS, FCC
Installation Method	Connected in series or parallel to coolant hoses
Warranty	One year

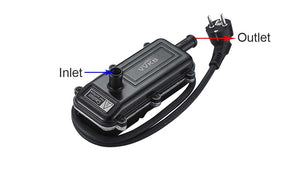

Vvkb engine block heater Titan-P3 inlet and outlet schematic

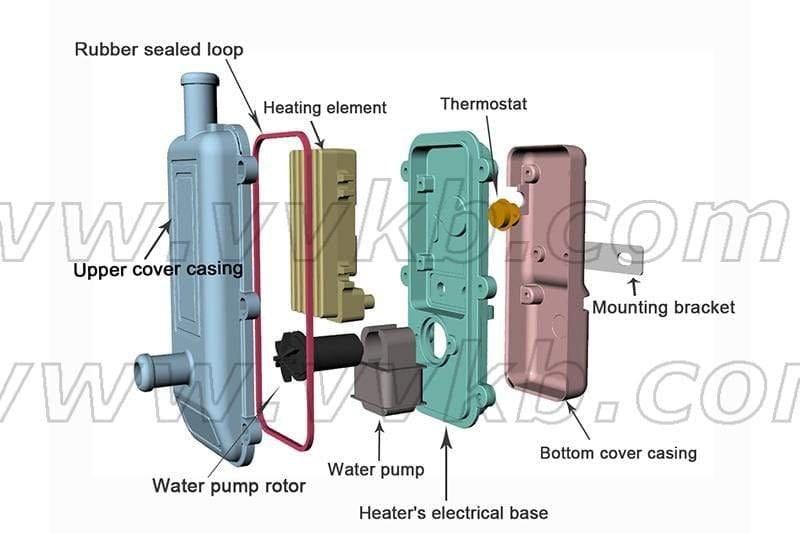

Vvkb Engine Heater Titan-P3 3D structural drawing

Vvkb Engine Heater Titan-P3 External Dimensional Drawing

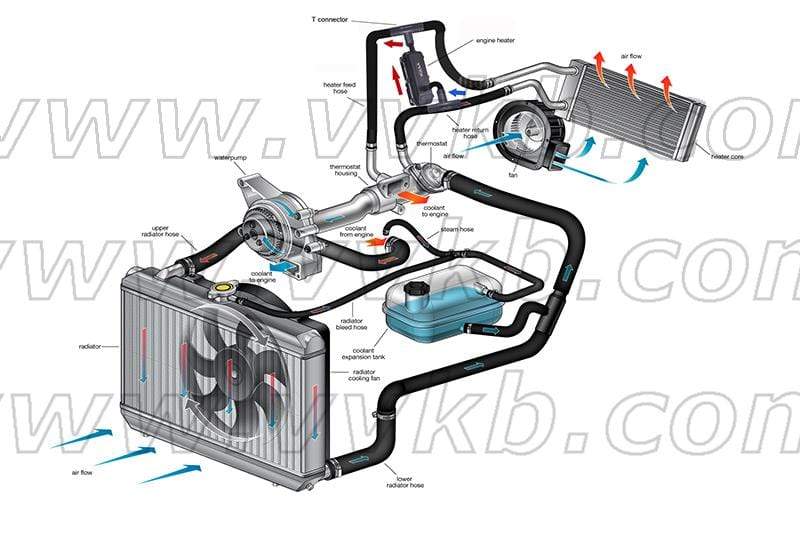

Engine block heater Titan-P3 installation diagram

Engine heater heating effect

If you buy Vvkb engine heater Titan-P3, your engine will not be afraid of the cold and it will start at low temperatures.

Vvkb engine heater reduces emissions and helps protect the environment. It also greatly reduces the chance of failure in winter.
