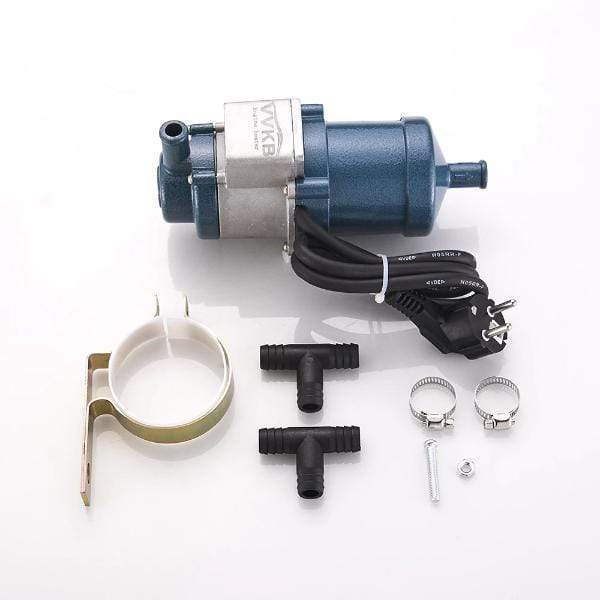

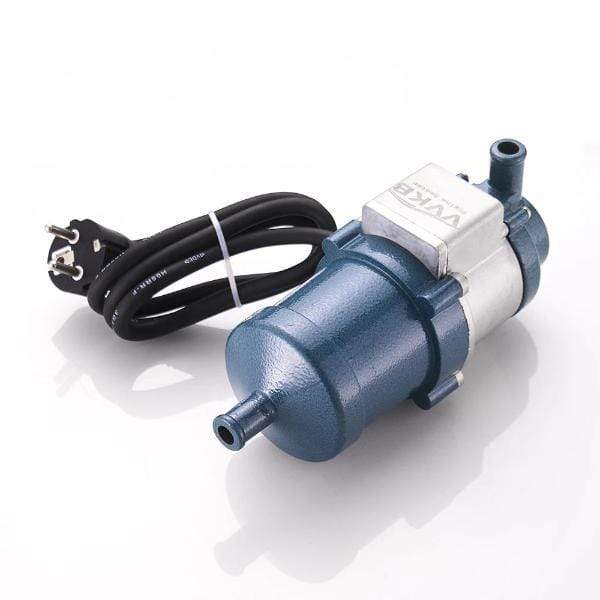

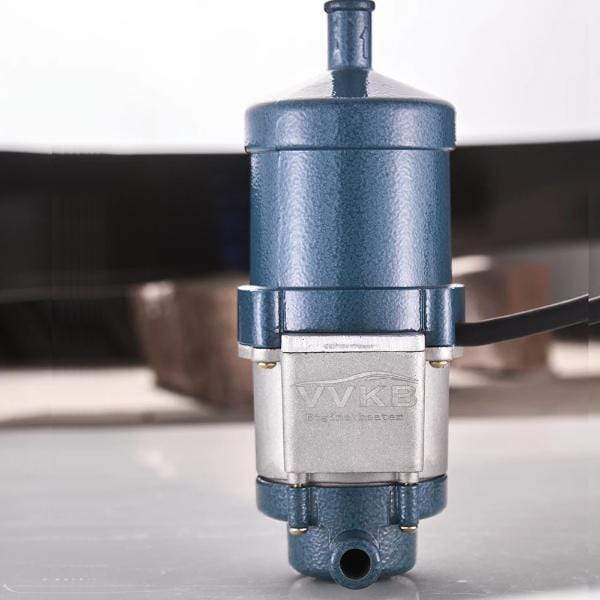

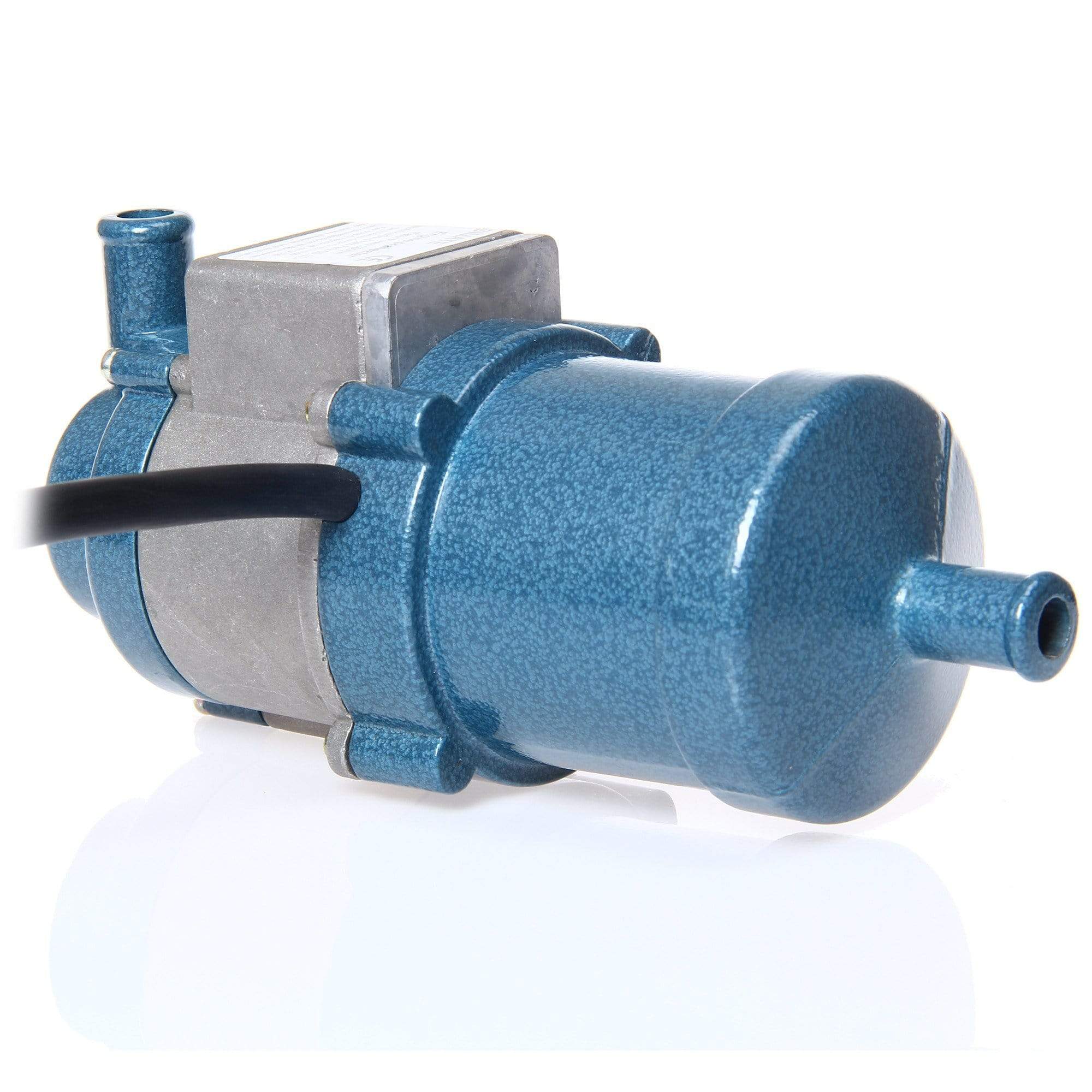

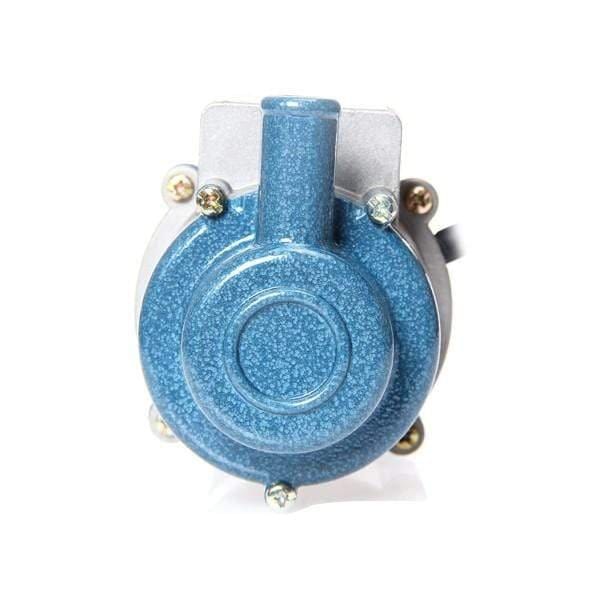

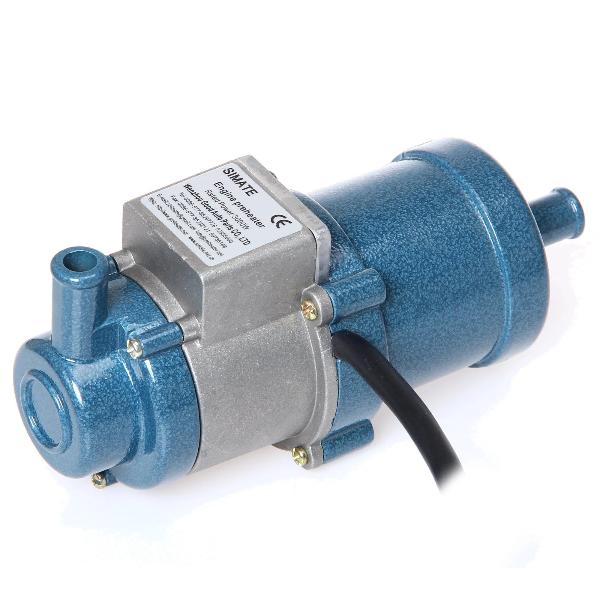

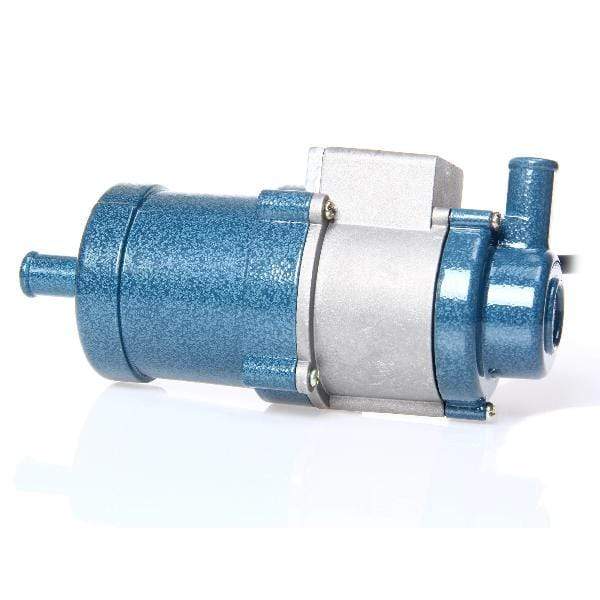

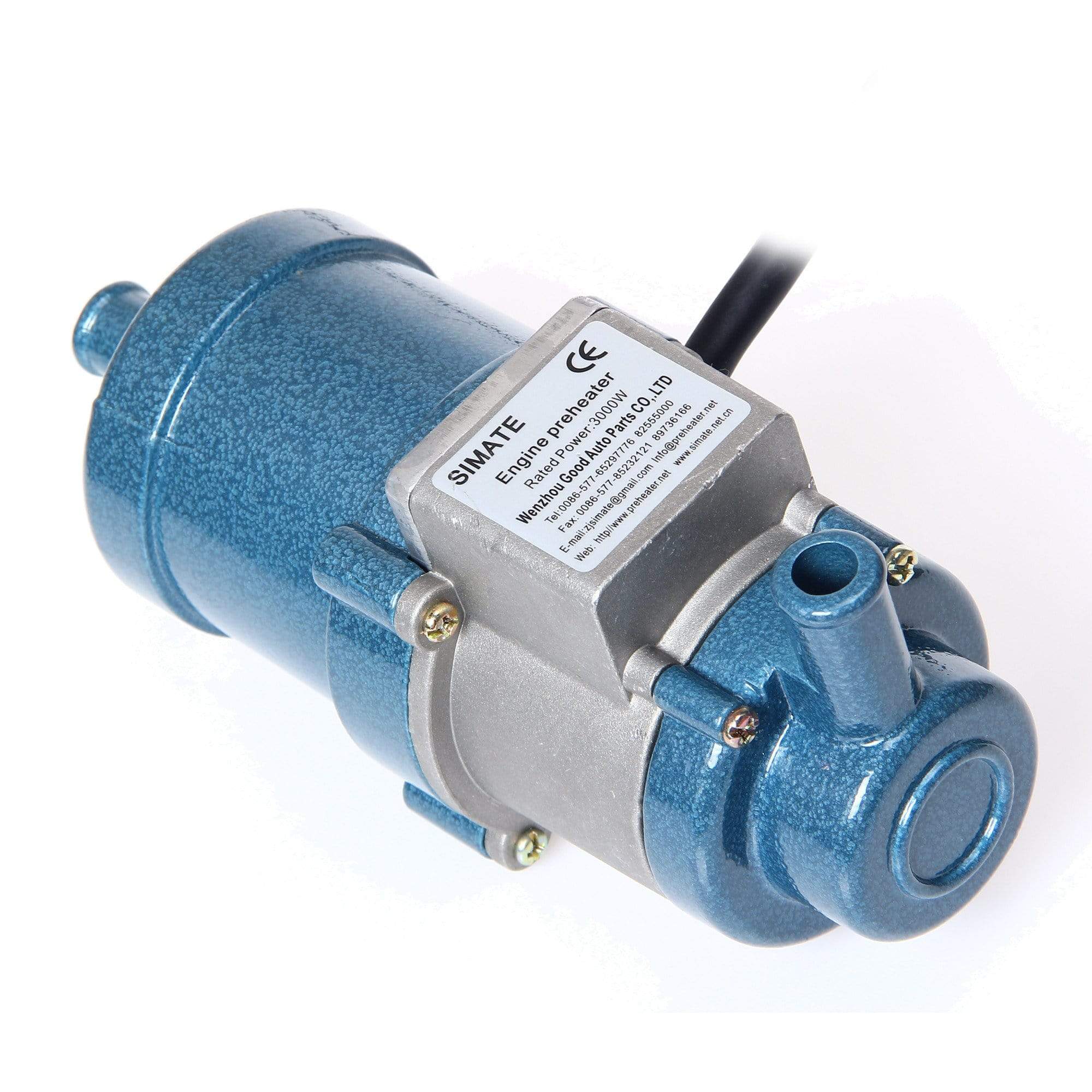

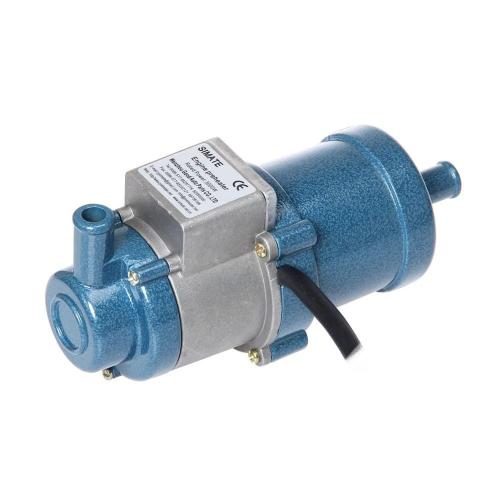

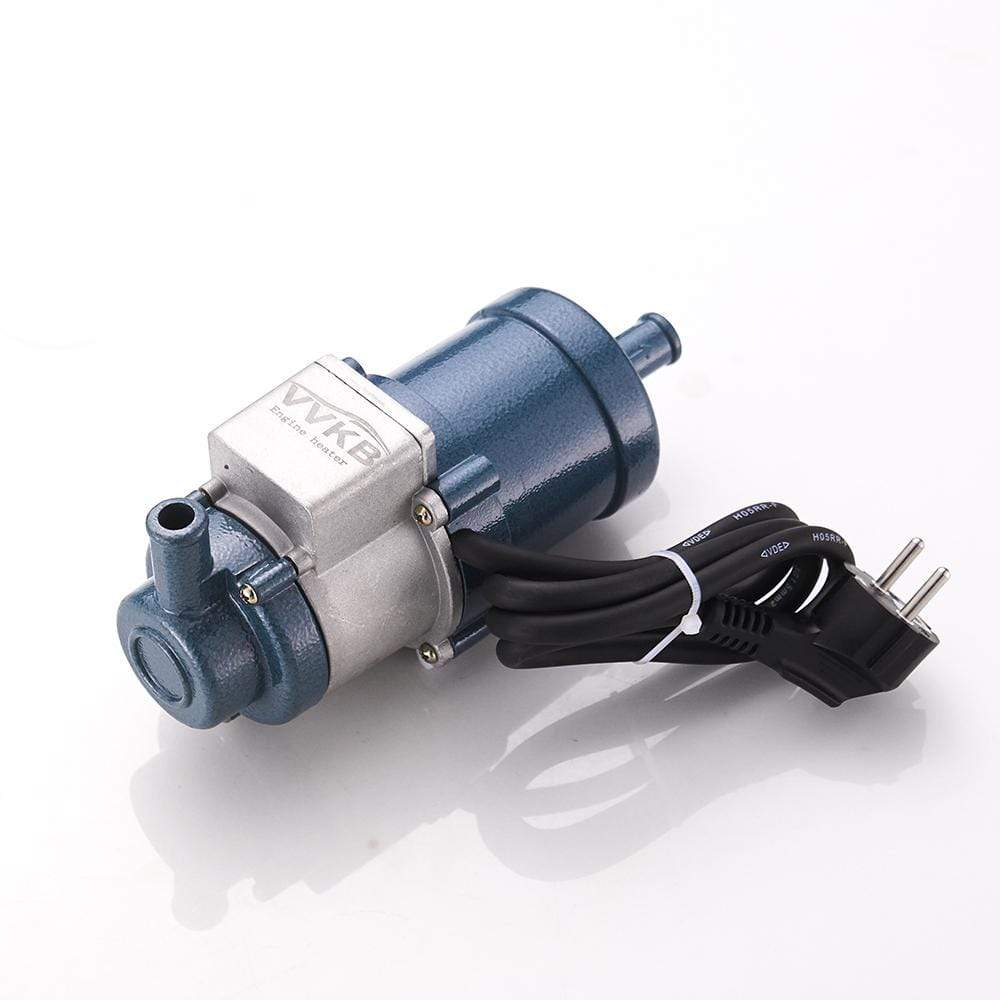

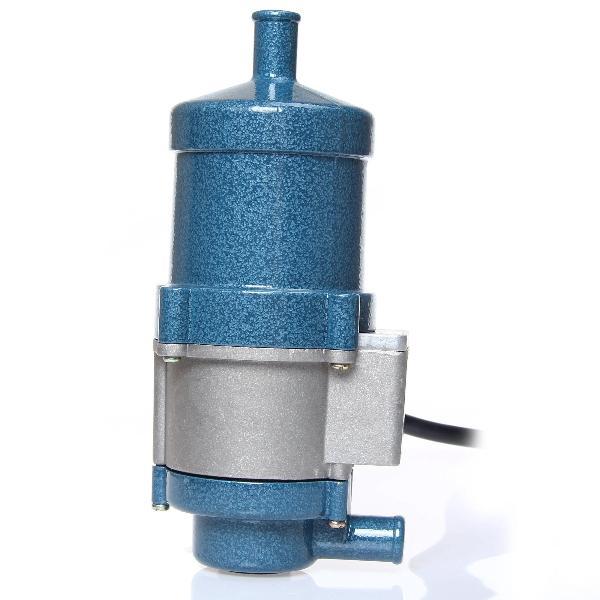

Vvkb engine heater Titan-P5 for Trucks, Generators

Write a review
  • $115.52


Why choose Vvkb engine block heaters?

There are various types of engine block heaters on the market, each varying in form factor and structure. Among them are ones that resemble Vvkb engine block heaters, but why should you choose Vvkb engine block heaters?

Vvkb engine block heaters have the following 7 advantages.

  1. Vvkb has 27 years of experience in engine block heater manufacturing.
  2. Over the past 27 years, more than 10 million customers have chosen Vvkb engine block heaters to solve their engine hard starting problems.
  3. Whether your vehicle is a small ATV, or a large truck and genset, Vvkb can provide engine block heaters in different power and form factors to fit your engines.
  4. Whether you are in Europe, or North America, Vvkb can provide engine block heaters for 110V and 230V voltages. And, depending on your country, we will provide you with European standard or North American standard and Australian standard plugs. So you can easily use Vvkb engine block heaters.
  5. Vvkb engine block heaters are TUV, CE, RoHS, and FCC certified. You will be satisfied with the quality of the Vvkb Engine Block Heater like our more than 10 million customers.
  6. We will also provide attentive service. No matter if you encounter any problem during the installation of the engine block heater or during the use of the Vvkb engine co-cylinder heater, you can send us an email and we will reply to you within 6-8 hours.
  7. We will also provide customization service. If you are a bulk buying customer and our regular engine block heater does not fit your requirements well, please tell us your requirements, our experienced engineers, will design your exclusive engine block heater according to your requirements so that you can use Vvkb engine block heater most easily.



Vvkb engine heater Titan-P5 for Trucks, Generators

Two years after Titan-P6 was released, many customers told us that they wanted the heating cycle to be faster and for it to be easier to start their engines in cold weather.
Although the Titan-P6 relies on gravity for its heating cycle, it does so at a relatively slow rate.
However, if we were to add a water pump to Titan-P6, it would increase its size significantly, which would make it harder for some small vehicles to install the engine heater.
Our engineers suggested redesigning the magnetic pump so that it would fit inside Titan-P6’s structure and still have a smaller profile.

In 1998, Titan-P5 became the first engine block heater with a built-in water pump in China and probably in the world.

The product caused a sensation in the market, and within two years of its launch sales exceeded 700,000 sets.

Nearly six million units of Titan-P5 have been sold since then.

ADVANTAGES OF THE VVKB ENGINE BLOCK HEATER TITAN-P5:

  • Easy to install
  • Vibration resistant
  • With one thermostats
  • With built-in water pump
  • Wide range of applications
  • All accessories are replaceable
  • Multiple power options available
  • Durable copper heating tube

DATA OF VVKB ENGINE BLOCK HEATER TITAN-P5

Rated Voltage 110V/230V
Rated Power 1000W/1500W/2000W/2500W/3000W
Rated Frequency 60Hz/50Hz
Weight 3.3 lbs (1.5 kg)

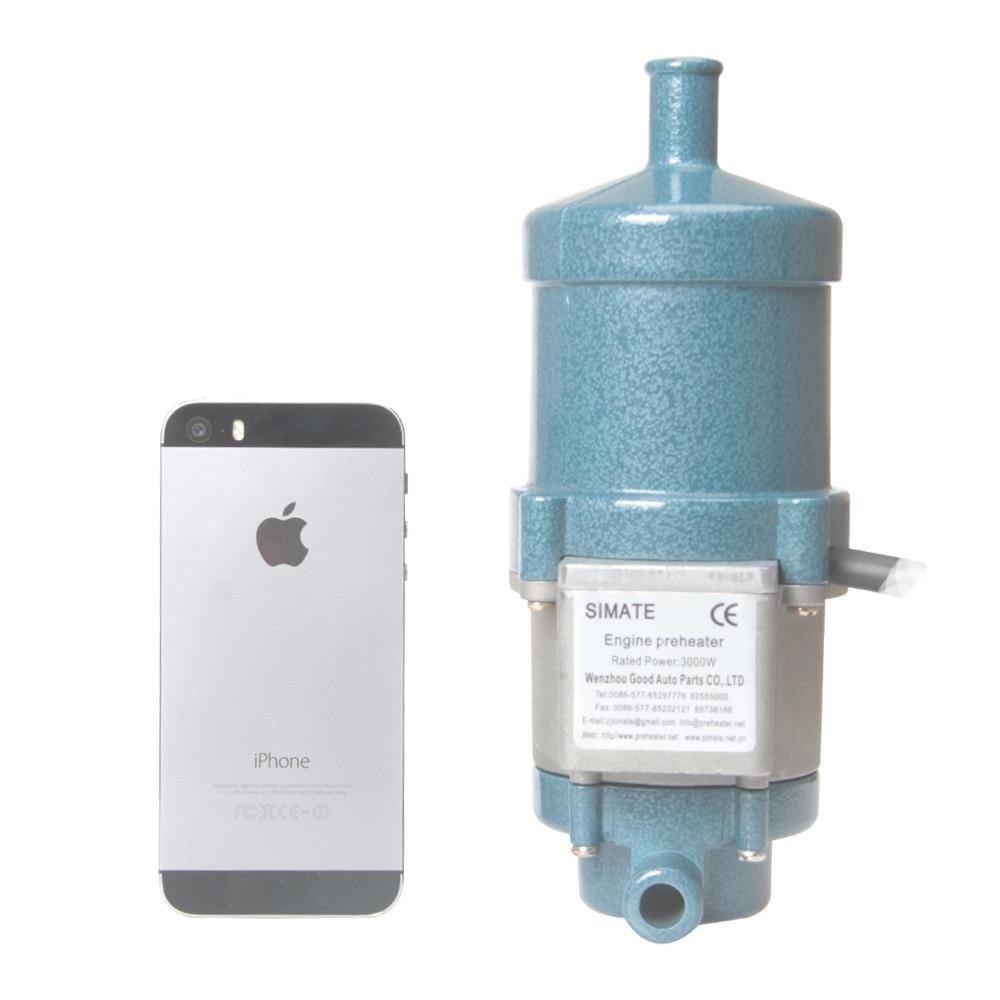

Dimension 202mm X 95mm X 82mm (8" X 3.7” X 3.2”)
Interface Diameter 5/8" (16mm)
With Built-in Pump Yes
Pump Type Magnetic Pump
Pump Life 5000hr
Pump Flow 900L/Hr
Built-in Thermostat Two thermostats 45℃ - 65℃(113℉ - 149℉)
Waterproof Rating IP X4
Heating Tube Material and Process Stainless steel, without processing
Heating Tube Life 8000hr
Shell Material Aluminum alloy die-casting
Shell Treatment Process Plastic painting and laser engraving
Certification TUV, CE, RoHS, FCC
Installation Method Connected in series or parallel to coolant hoses
Warranty One year

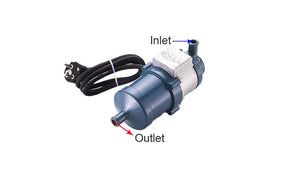

Vvkb engine block heater Titan-P5 inlet and outlet schematic

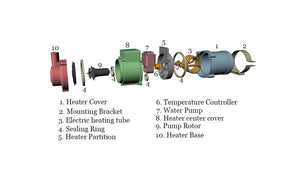

Vvkb Engine Heater Titan-P5 3D structural drawing

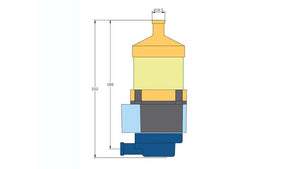

Vvkb Engine Heater Titan-P5 External Dimensional Drawing

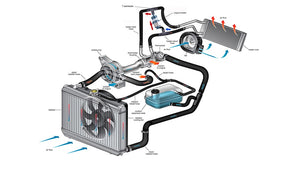

Engine block heater Titan-P5 installation diagram



Engine block heater heating effect

Buy Titan-P5 today, and you won't have to worry about your engine when winter comes.
It will start easily in cold weather, and it will reduce pollution.
Titan-P5 will help prevent engine failure and contribute to a greener environment.
