Diesel Fuel Filter Heater — Stops Ice and Wax Before Your Engine Quits
Only 9 in stock
At 32°F, two things start attacking your diesel filter at the same time. Most drivers only know about one of them — and find out about the second one when their engine won't start.
Two Reasons Your Diesel Filter Dies in Winter
Frozen water: Water in diesel fuel freezes at 32°F (0°C). Modern fuel filters catch particles down to 2 microns — fine enough to trap ice crystals. Once those crystals build up on the filter paper, fuel stops flowing. Your engine quits.
Paraffin wax: Diesel contains paraffin wax. At 32°F (0°C), it starts crystallizing. By 14°F (-10°C), it turns semi-solid. Those wax crystals clog the filter just as effectively as ice — and this one catches most drivers off guard.
The Zeus-F1 wraps around the outside of your filter housing. It keeps the filter warm enough that neither ice nor wax can form. Fuel flows. Engine starts.

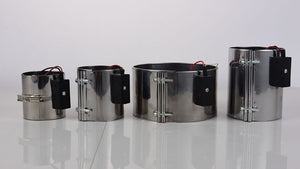

Which Size Fits Your Filter?
Measure the outer diameter of your fuel filter housing. That's the only number you need.
| Size | Fits Filter Diameter |
|---|---|
| Small | 2.9"–3.4" (73–86mm) |
| Medium | 3.1"–3.6" (78–91mm) |
| Large | 3.4"–4.1" (86–105mm) |
Not sure how to measure? Wrap a piece of string around the widest part of your filter housing, mark where it meets, then measure the string and divide by 3.14. That gives you the outer diameter in inches.
If your filter falls in the overlap between two sizes, go with the larger one — it clamps more securely.

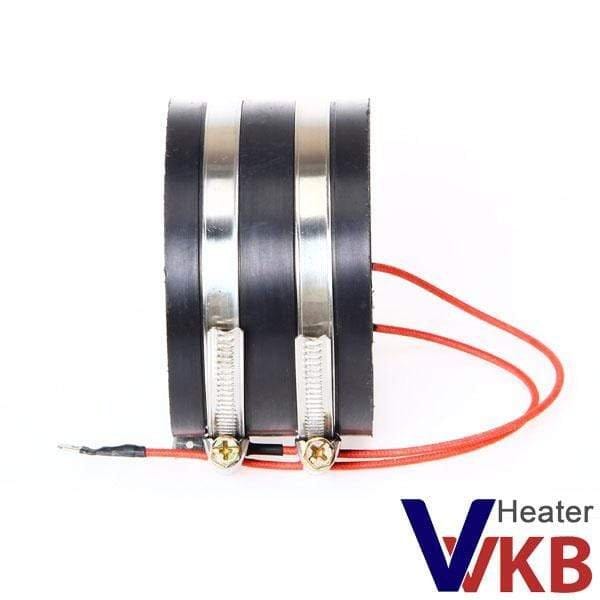

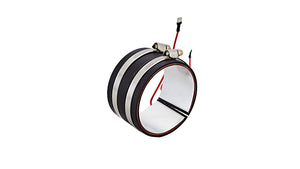

Three Layers That Keep Your Filter Warm — Not Just Wrapped
The Zeus-F1 isn't a simple wrap. It has three layers, each doing a specific job.

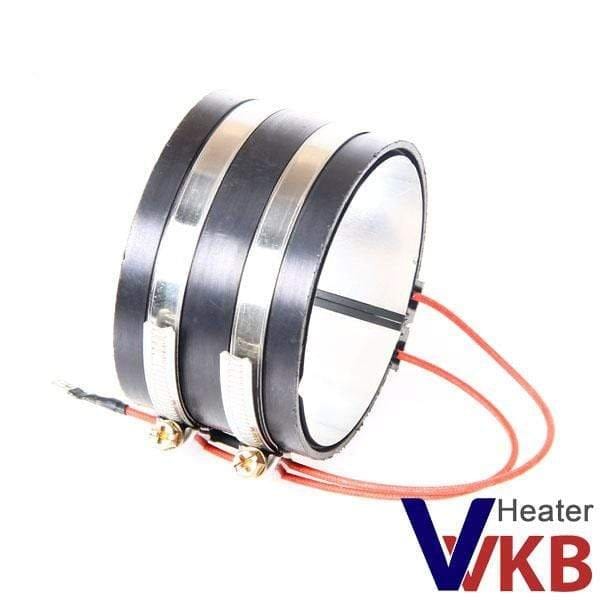

The innermost layer is a thin aluminum plate that sits flush against your filter housing. Aluminum conducts heat faster than most materials — the warmth transfers evenly across the entire filter surface, no hot spots.
Behind the aluminum is a silicone heater pad. It generates steady, consistent heat at 75W — low enough that no thermostat is needed. The outer layer is a plastic shell that closes the circuit: it insulates the outside so heat goes into the filter, not into the air around it.
The result: working temperature in 3–6 minutes, with no complex electronics to fail.
The Zeus-F1 also fits diesel oil-water separators — same clamp, same wiring, same result.
Fits Trucks, RVs, Tractors, and Generators
Long-haul trucks run through the coldest stretches of a winter route with no option to stop. A blocked filter at 14°F (-10°C) doesn't just cost time — it costs the load.
RV owners park far from help. Tractor drivers can't push their morning schedule back because the engine won't start. Both need a filter that works the first time, every time.
Diesel generators sit dormant in cold storage and need to fire up on demand. A clogged filter at the wrong moment means no backup power when you actually need it.

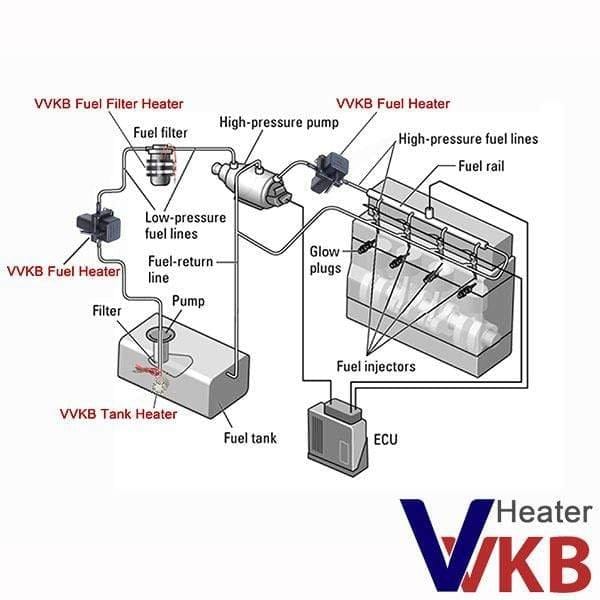

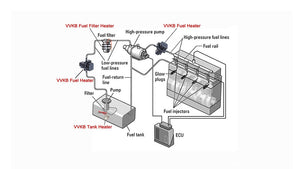

For complete cold-weather protection, pair the Zeus-F1 with the Zeus-F3 Diesel Fuel Tank Heater. It stops fuel from gelling in the tank before it even reaches the filter.
How to Install the Zeus-F1
The Zeus-F1 installs in under an hour with basic hand tools. No cutting fuel lines, no drilling.
Step 1: Wrap and clamp
Open the heater band and position it around your fuel filter housing. The aluminum plate should sit flush against the filter surface. Tighten the included hose clamps until the band is secure.
Step 2: Connect the wiring harness
Route the cable from the heater band to the relay. Connect the relay to the 15A fuse box, then run the positive wire to your battery's positive terminal. Connect all chassis ground wires to your vehicle's body.
Step 3: Connect the ignition trigger
Connect the ignition trigger wire to a switched +12V source — a wire that goes live when the key is in the ignition position. This activates the relay automatically when the engine runs.
Step 4: Mount the indicator button
Install the indicator button inside the cab at a comfortable height. It shows when the heater is active and lets you switch it on manually before starting the engine.
Turn the ignition on, press the button, and wait 3–6 minutes. Your filter is at working temperature.
⚠️ Do not run the heater for more than 15 minutes with the engine off.
Specifications
| Specification | Detail |
|---|---|
| Brand | Vvkb |
| Model | Zeus-F1 |
| Rated Power | 75W (±10%) |
| Voltage | 12V / 24V |
| Fit Size — Small | 2.9"–3.4" (73–86mm) |
| Fit Size — Medium | 3.1"–3.6" (78–91mm) |
| Fit Size — Large | 3.4"–4.1" (86–105mm) |
| Preheat Time | 3–6 minutes |
| Operating Temperature | -40°F to +104°F (-40°C to +40°C) |
| Heating Element | Silicone heater pad with aluminum plate |
| Warranty | 6 months |

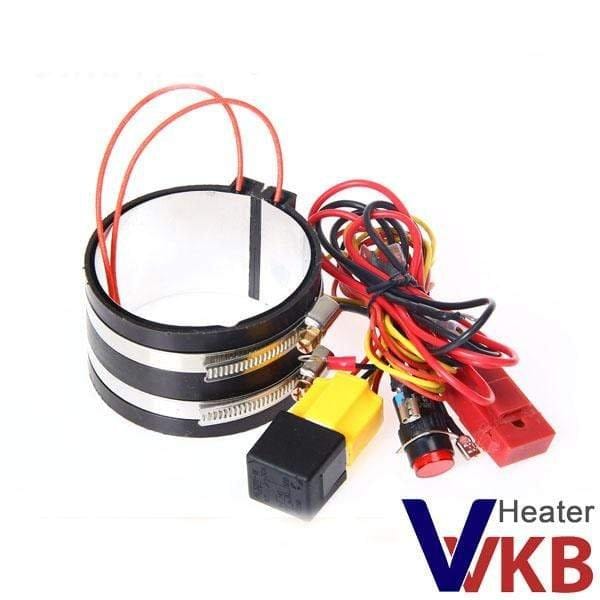

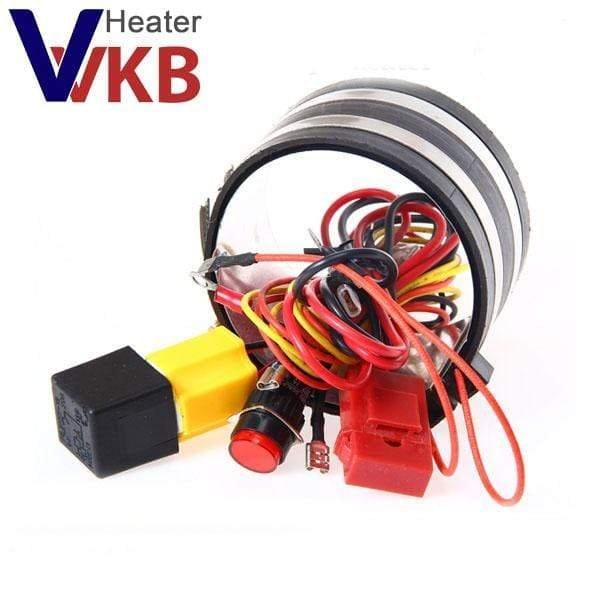

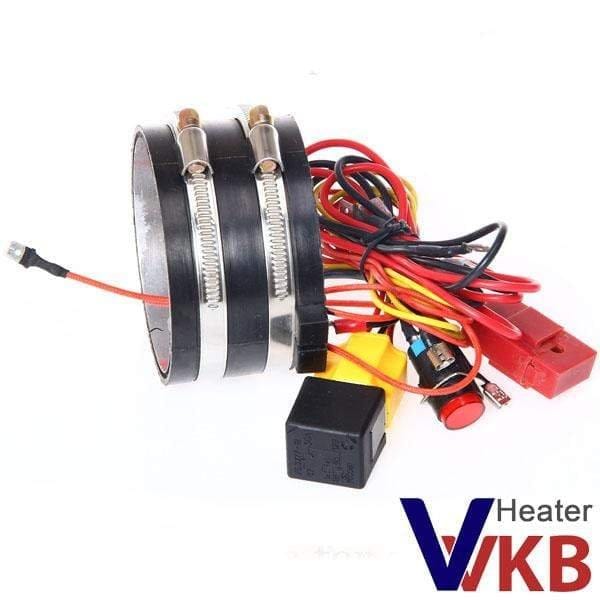

What's in the Box
- Zeus-F1 heater band ×1
- Wiring harness ×1
- Relay ×1
- Fuse box with 15A fuse ×1
- Indicator button ×1
- Hose clamps ×2
- Installation manual ×1
Frequently Asked Questions
How do I choose the right size?
Measure the outer diameter of your fuel filter housing. Under 3.4" (86mm), choose Small or Medium. Over 3.4" (86mm), choose Large. If your measurement falls in the overlap between two sizes, go with the larger one — it clamps more securely.
Does it protect my fuel lines and tank as well?
No — the Zeus-F1 heats the filter housing only. If fuel in your tank or lines gels, a filter heater won't solve that. For full cold-weather protection, pair it with the Zeus-F3 Diesel Fuel Tank Heater, which stops fuel from gelling before it reaches the filter.
My filter is already clogged — will the heater unblock it?
No. Once paraffin wax has crystallized inside the filter media, heat won't clear it — the filter needs to be replaced. The Zeus-F1 is a preventive tool. It keeps the housing warm so crystals never form in the first place.
Do I still need anti-gel additives if I have a filter heater?
In moderate cold, the Zeus-F1 alone handles the filter area. In extreme cold below -4°F (-20°C) — or if you're running biodiesel blends — a quality anti-gel additive throughout the tank gives you an extra layer of protection.
How long before starting should I turn it on?
3–6 minutes is enough. In severe cold, allow the full 6 minutes before cranking. The indicator button in your cab shows when the heater is active.
Does it work on diesel oil-water separators?
Yes. The Zeus-F1 fits any cylindrical oil-water separator housing between 2.9" and 4.1" (73–105mm). Same clamp, same wiring, same result.
