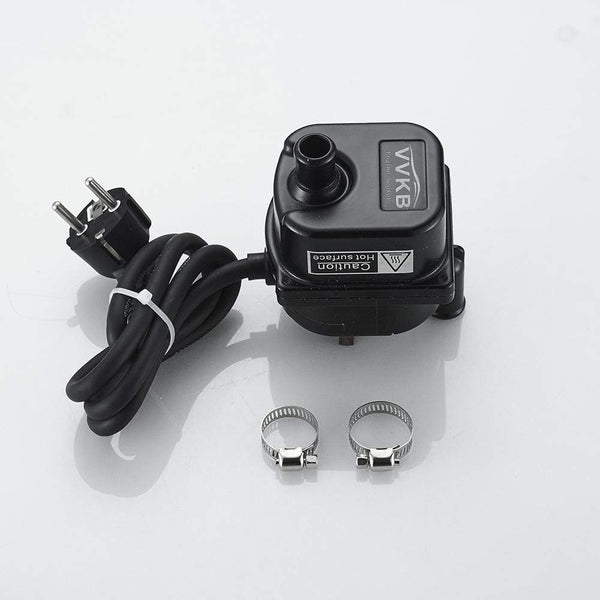

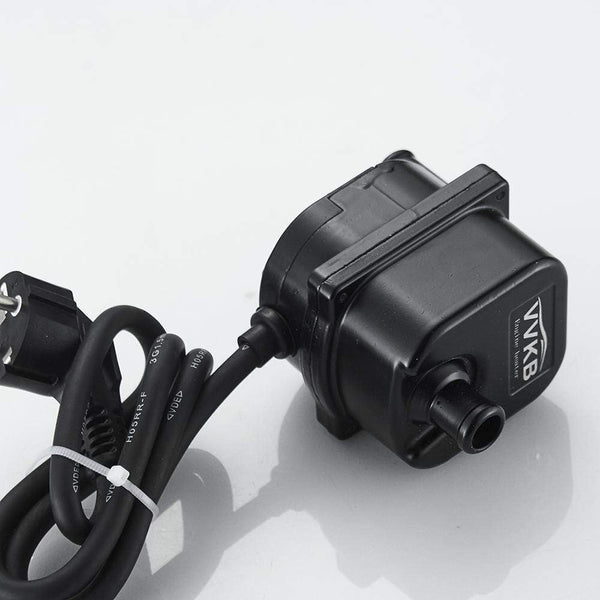

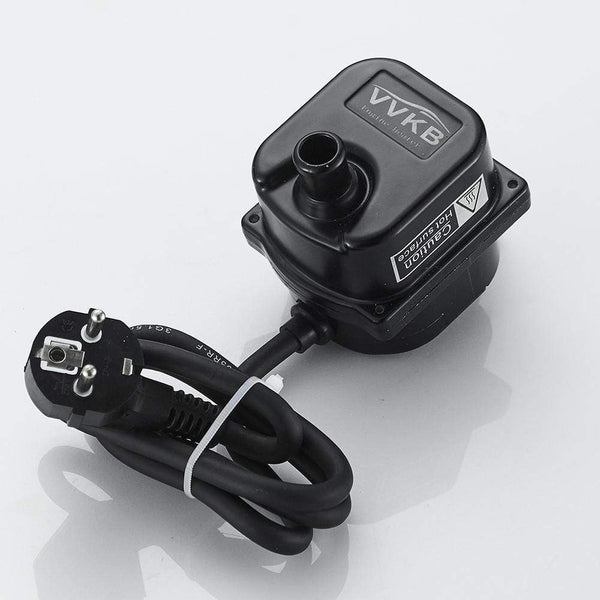

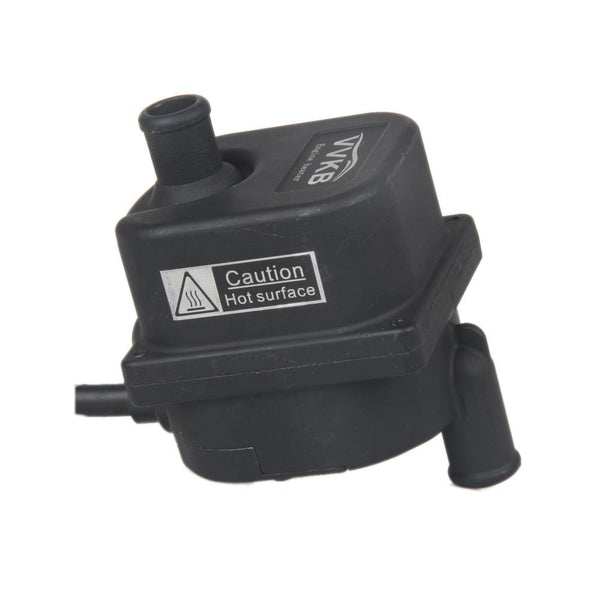

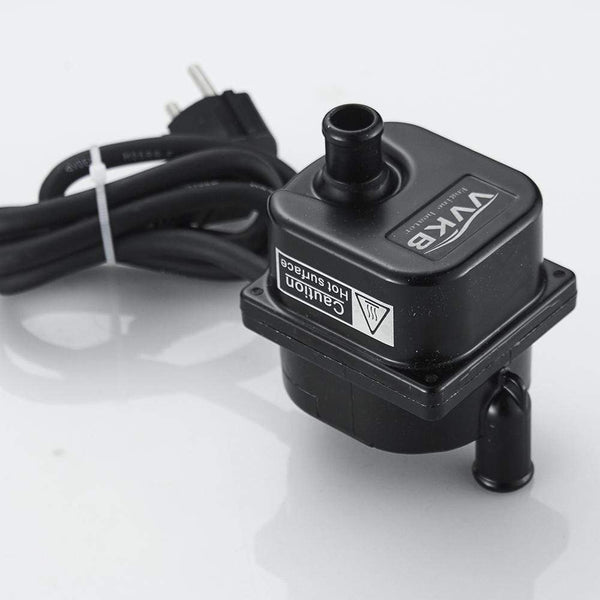

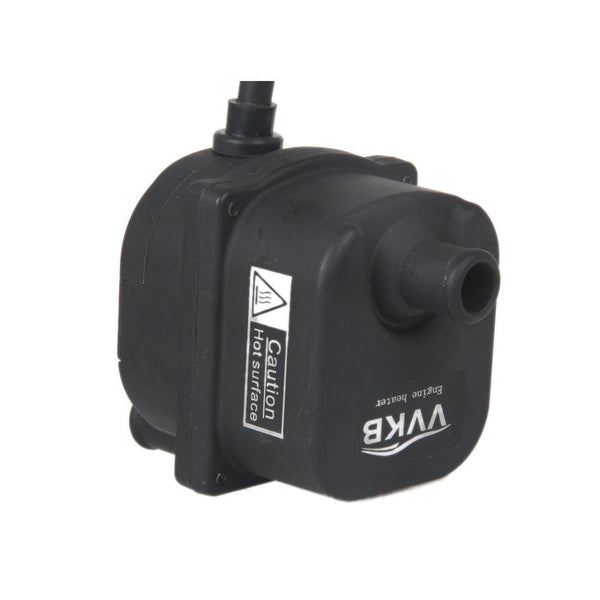

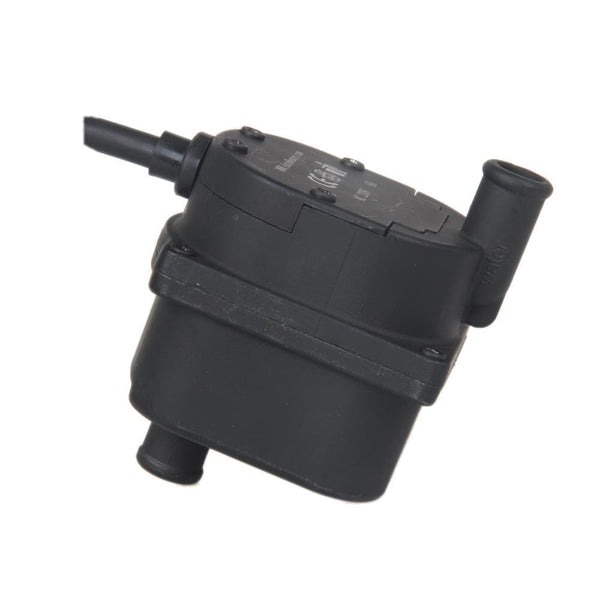

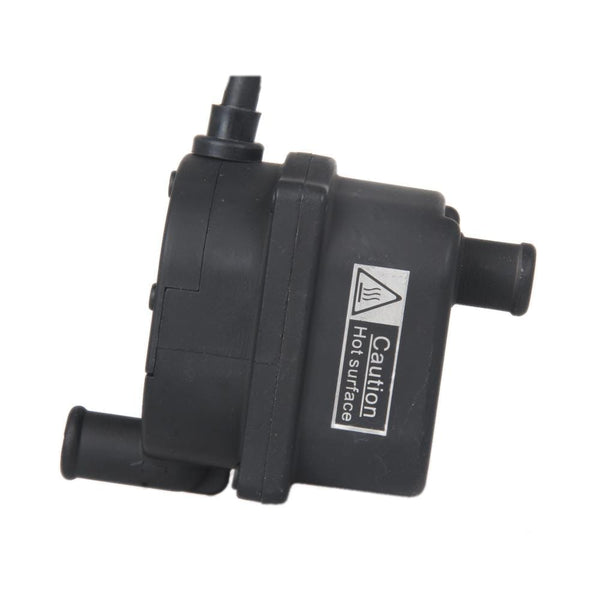

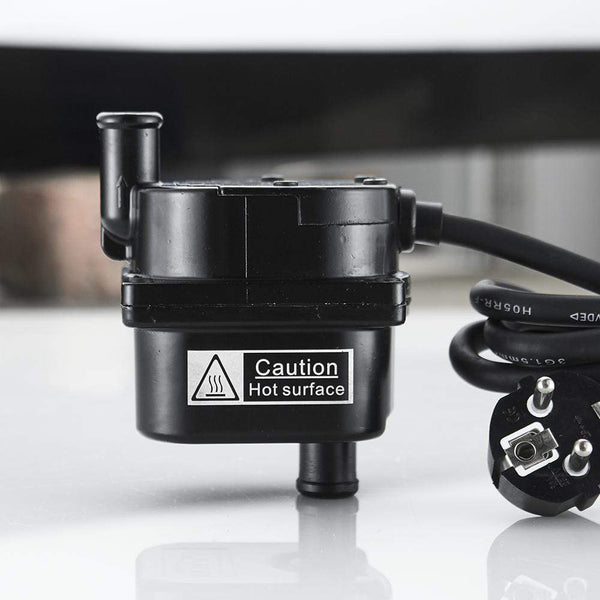

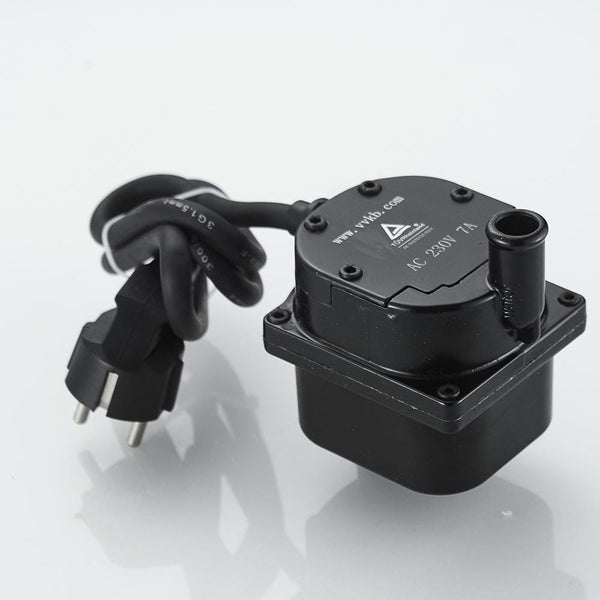

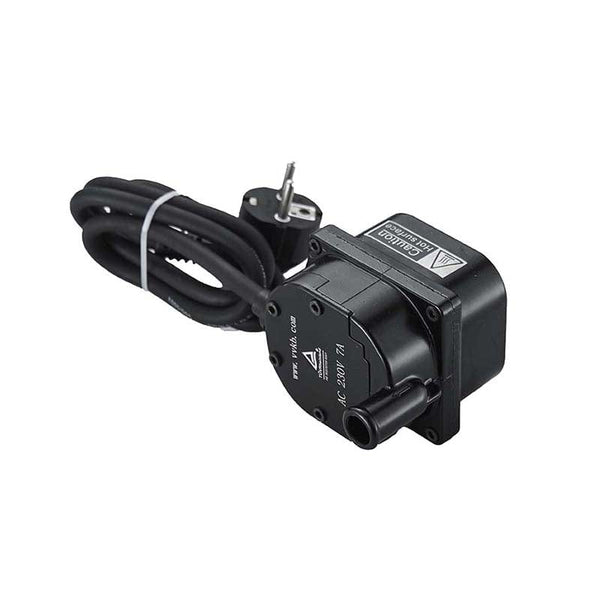

VVKB Block Heater Titan-P1 110V/230V With Built-in Pump

Write a review
  • $126.50


Why choose Vvkb engine block heaters?

There are various types of engine block heaters on the market, each varying in form factor and structure. Among them are ones that resemble Vvkb engine block heaters, but why should you choose Vvkb engine block heaters?

Vvkb engine block heaters have the following 7 advantages.

  1. Vvkb has 27 years of experience in engine block heater manufacturing.
  2. Over the past 27 years, more than 10 million customers have chosen Vvkb engine block heaters to solve their engine hard starting problems.
  3. Whether your vehicle is a small ATV, or a large truck and genset, Vvkb can provide engine block heaters in different power and form factors to fit your engines.
  4. Whether you are in Europe, or North America, Vvkb can provide engine block heaters for 110V and 230V voltages. And, depending on your country, we will provide you with European standard or North American standard and Australian standard plugs. So you can easily use Vvkb engine block heaters.
  5. Vvkb engine block heaters are TUV, CE, RoHS, and FCC certified. You will be satisfied with the quality of the Vvkb Engine Block Heater like our more than 10 million customers.
  6. We will also provide attentive service. No matter if you encounter any problem during the installation of the engine block heater or during the use of the Vvkb engine co-cylinder heater, you can send us an email and we will reply to you within 6-8 hours.
  7. We will also provide customization service. If you are a bulk buying customer and our regular engine block heater does not fit your requirements well, please tell us your requirements, our experienced engineers, will design your exclusive engine block heater according to your requirements so that you can use Vvkb engine block heater most easily.

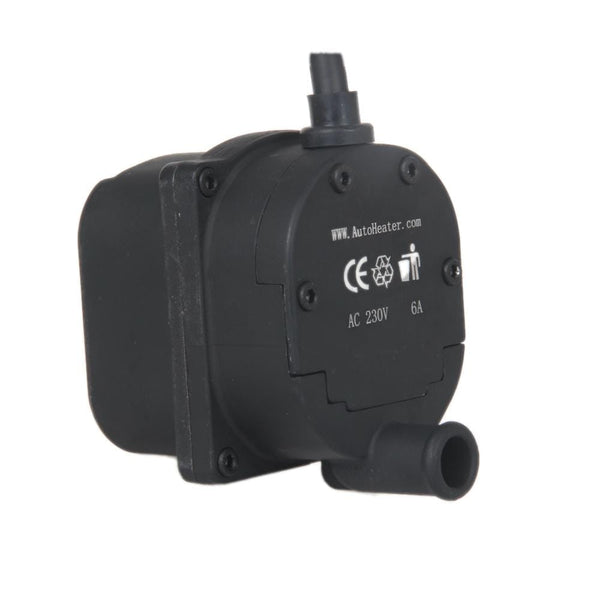

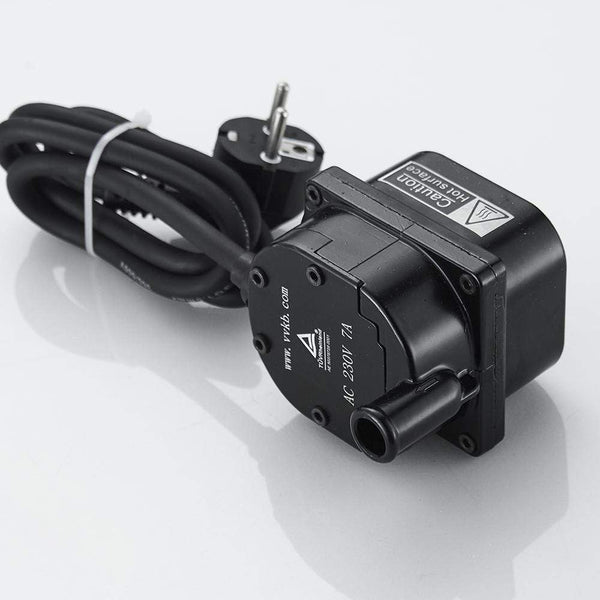

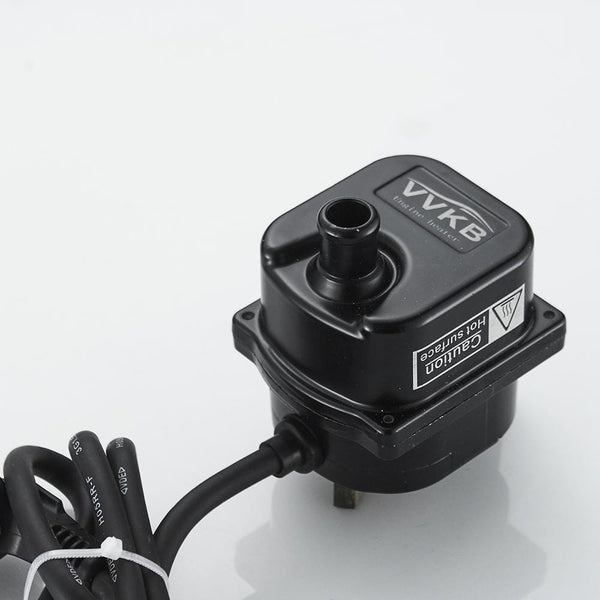

VVKB Block Heater Titan-P1 110V/230V With Built-in Pump

We designed this water-pump engine block heater in 2001 to solve cold-start problems for many users.

Titan-P1 has been one of our most popular items and has sold more than 3 million units worldwide.

Over the past 20 years, it has been trusted by our customers, and we believes it will be trusted by you too.

Advantages of the Vvkb Engine Block Heater Titan-P1:

  • Easy to install
  • Compact shape
  • Vibration resistant
  • With two thermostats
  • With built-in water pump
  • Wide range of applications
  • All accessories are replaceable
  • Multiple power options available


Data of Vvkb Engine Block Heater Titan-P1

Rated Voltage

110V/230V

Rated Power

500W/1000W/1500W/2000W

Rated Frequency

60Hz/50Hz

Weight

1.8 lbs (0.8 kg)
Dimension   110mm X 104mm X 73mm (4.3" X 4.1" X 2.9")
Interface Diameter 5/8" (16mm)
With Built-in Pump Yes
Pump Type Magnetic Pump
Pump Life 5000hr
Pump Flow 900L/Hr
Built-in Thermostat Two thermostats 45℃ - 65℃(113℉ - 149℉)
Waterproof Rating IP X4
Heating Tube Material and Process Copper, without processing
Heating Tube Life 8000hr
Shell Material Aluminum alloy die-casting
Shell Treatment Process Plastic painting and laser engraving
Certification TUV, CE, RoHS, FCC
Installation Method Connected in series to coolant hoses
Warranty One year



The heater has TUV CE FCC RoHS certifications.

The device works like a water heater, the cooling water is circulated and heated at the same time, the built-in thermostatic control regulates the device automatically.

Suitable for cooling water hoses 16-22 mm internal diameter, Just between the coolant supply and return line of the indoor heat exchanger integrated -Fertig!

Items in the package include: One set VVKB block heater , 2 X pipe clamps, instruction manual.

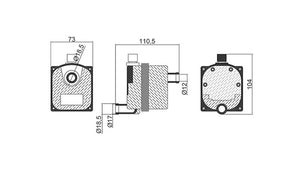

Vvkb Engine Heater Titan P1 External Dimensional Drawing

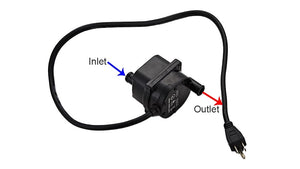

Vvkb block heater inlet and outlet schematic

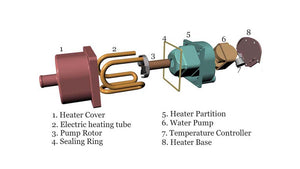

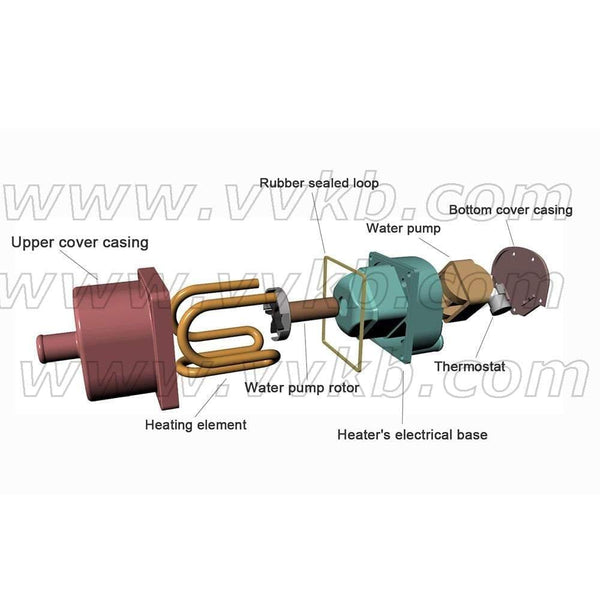

Vvkb Engine Heater Titan P1 3D Structural Drawing

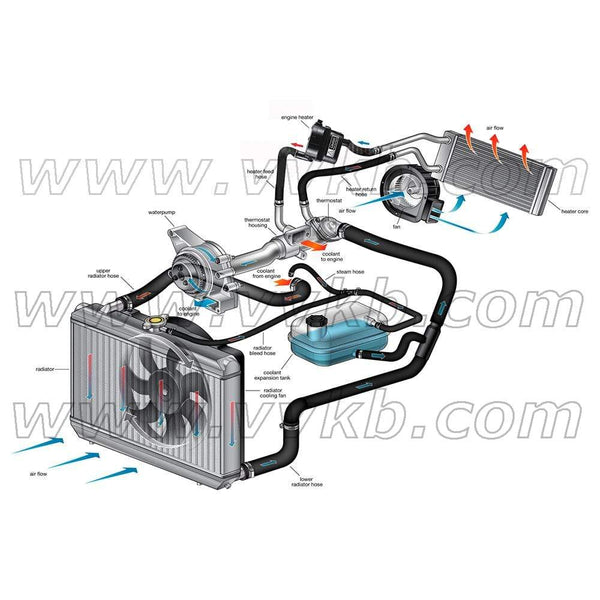

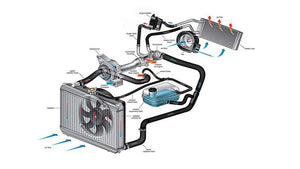

Vvkb Engine Block Heater-Titan-P1-Installation-Diagram

Engine block heater heating effect


Product Features

Fuel savings through shorter warm-up phase of the engine.
Faster action of the defroster vents and rapid heating of the interior.
Minimizes engine and catalyst wear. Minimizes wear on the vehicle battery.
Easy installation No intervention in the vehicle electrical system necessary. the heater is integrated at a suitable place in a radiator hose.
Compact design with integrated pump and heater Low circulation resistance.
Self-regulating through integrated thermostatic control.
Protects the environment;
Maintenance-free.
Strong built pumps.
External Testing Certification CE RoHS FCC






If you install Vvkb engine heater Titan-P1 in your car, your engine will not be afraid of the cold and it will start easily in low temperature. Your car's emissions will be reduced, which will help protect the environment.

By purchasing Vvkb engine heater, you can also greatly reduce the possibility of your engine failing in winter.
