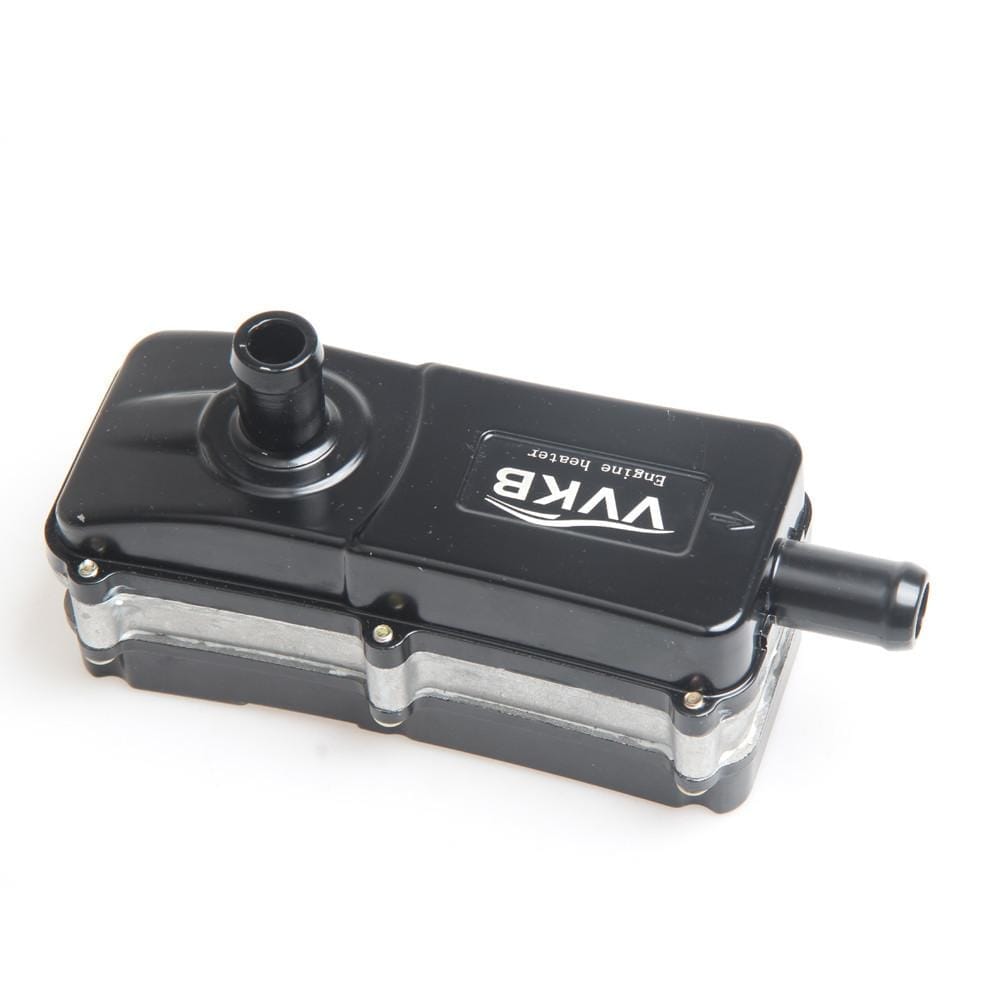

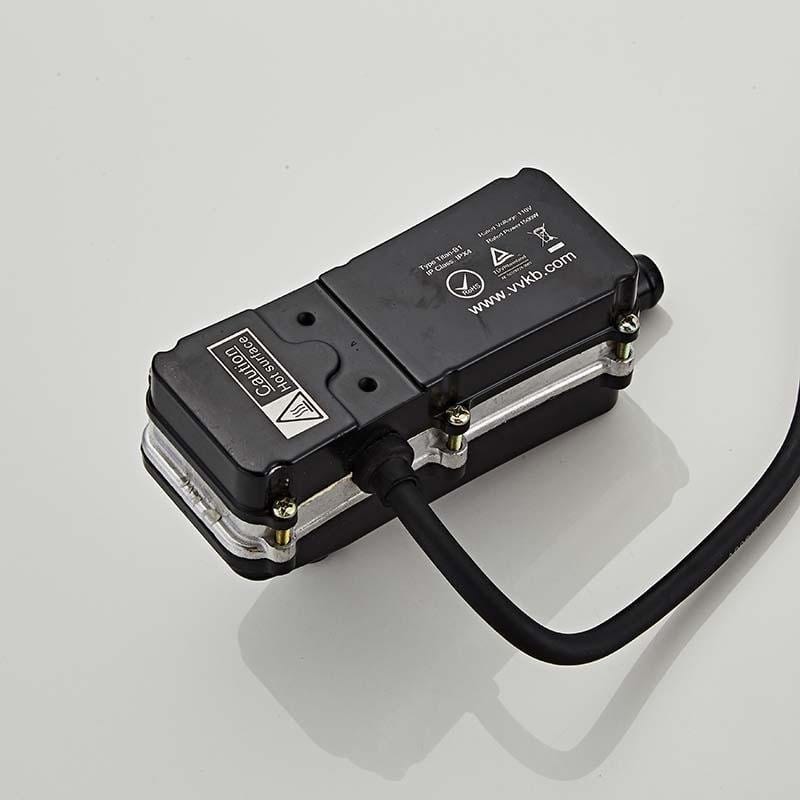

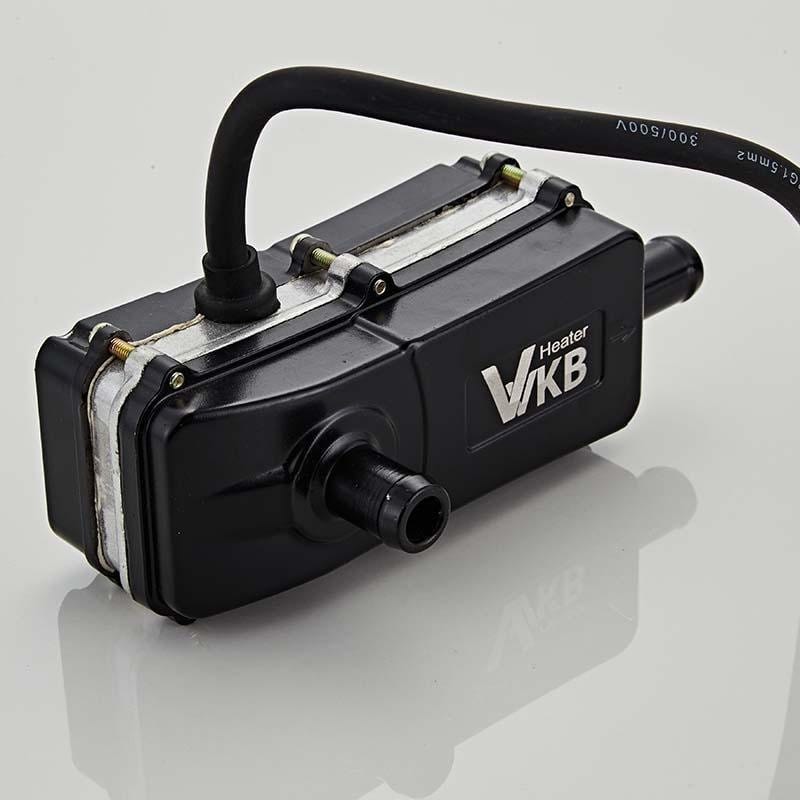

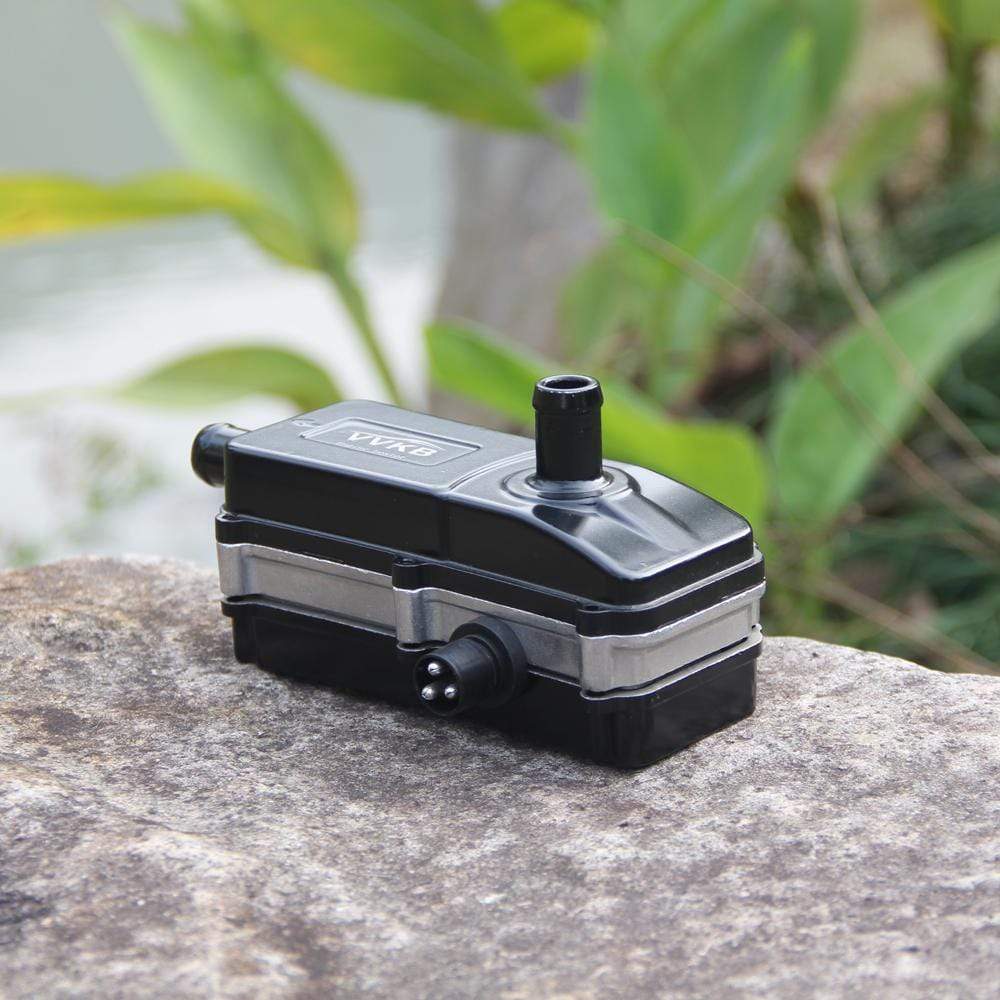

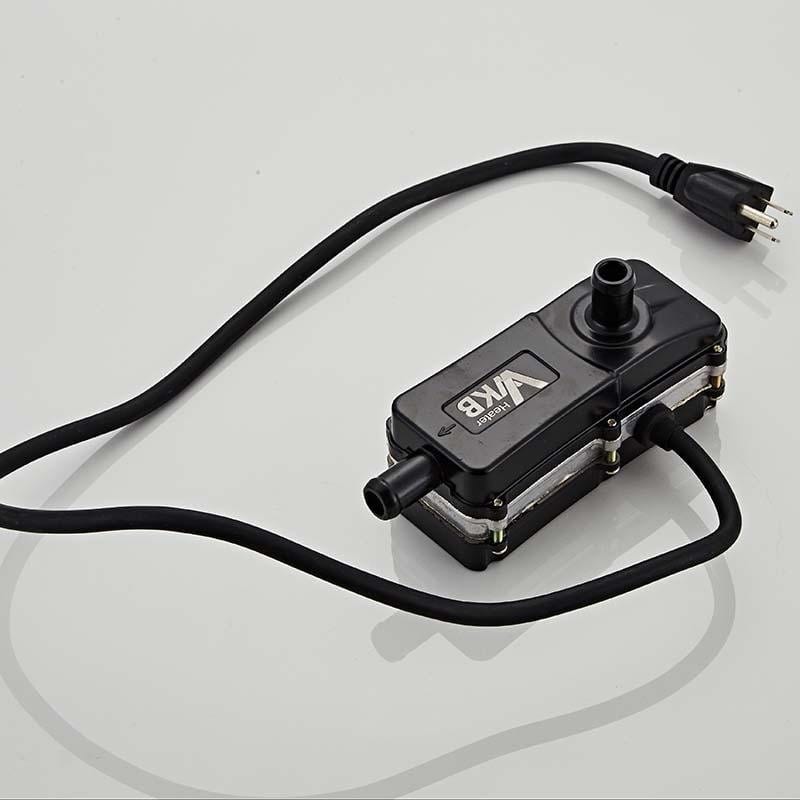

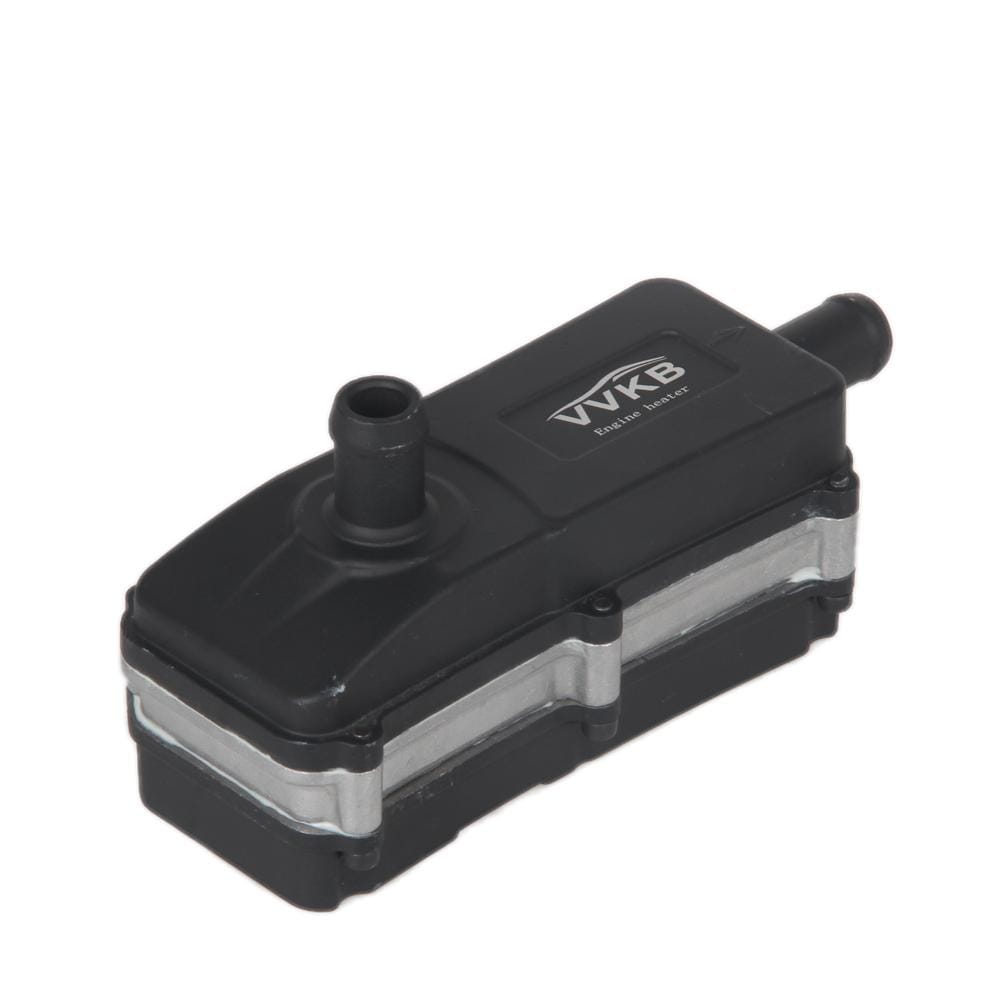

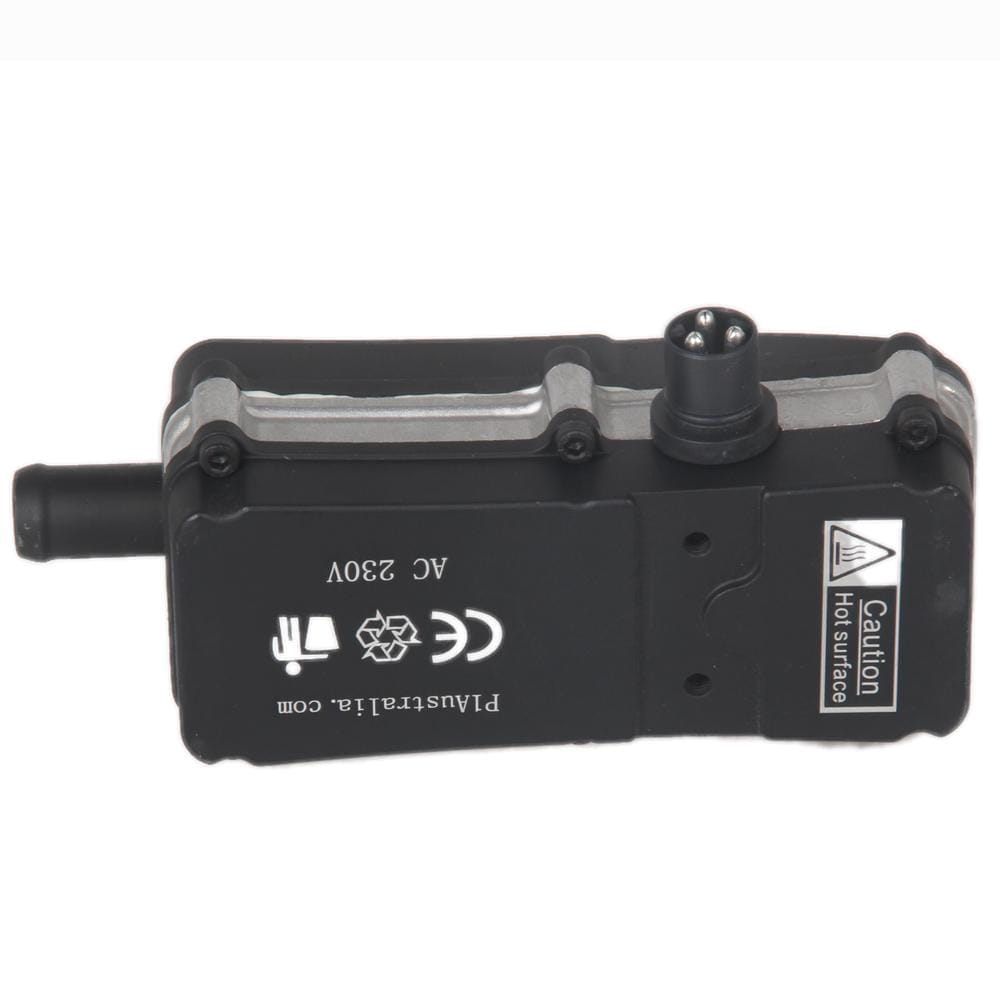

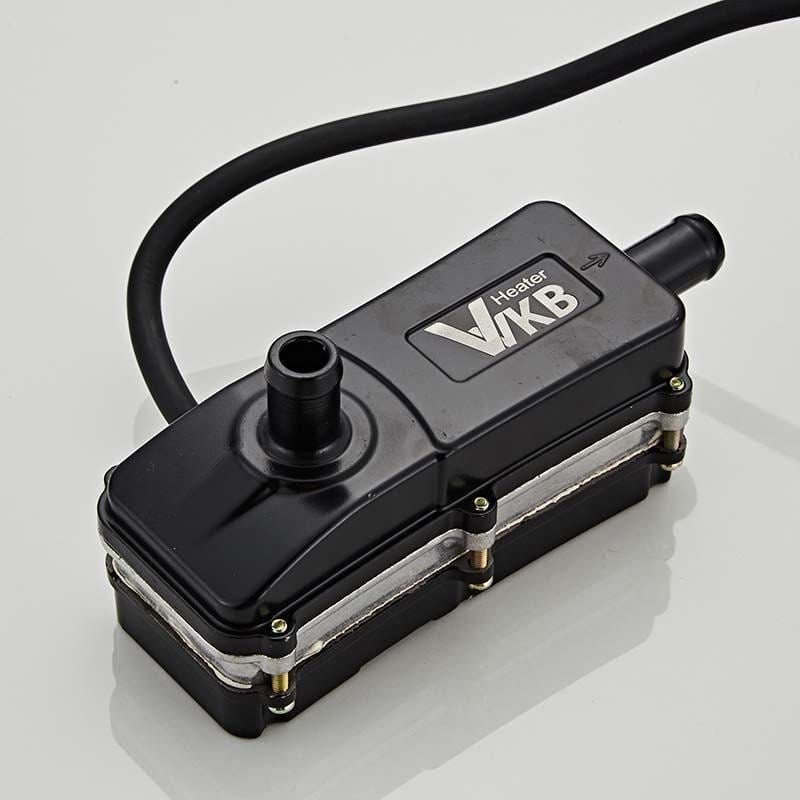

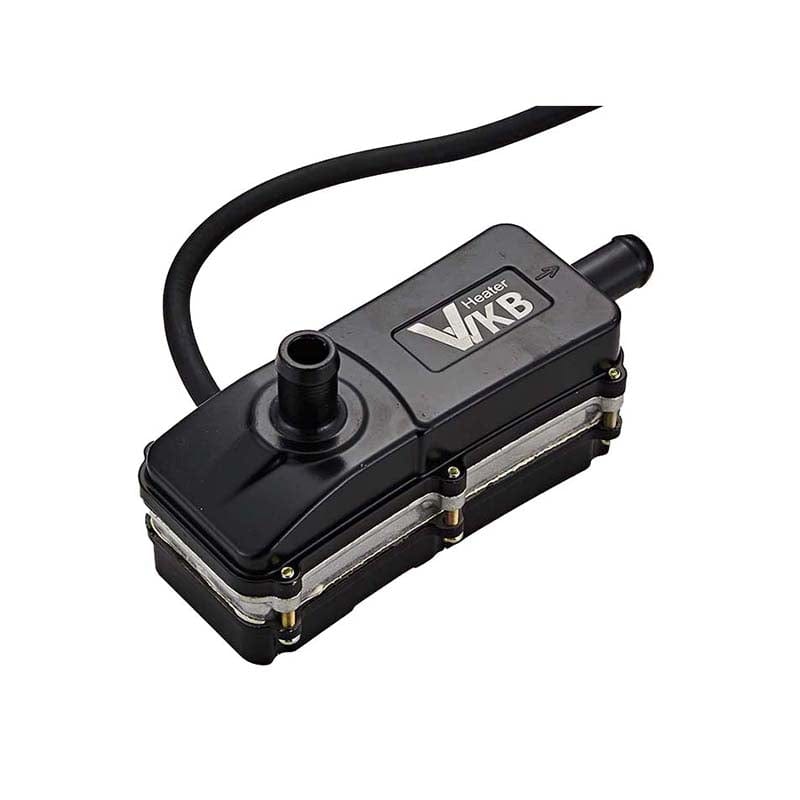

Vvkb Titan-B1 Compact Engine Block Heater — 1200W for Cars, ATVs and Snowmobiles
Only 9 in stock
Quick Start, Time-Saver: Warms your engine in 30–60 minutes — plug in 30–60 minutes before you start, and your engine turns over like it's 60°F outside.
Built for Compact Cars, Large ATVs, and Snowmobiles: Fits any 5/8" (16mm) coolant hose. Copper adapters for 3/4" and 1" hoses come in the box.
Fixed 1200W — No Setup, No Guessing: One model, one output. No wattage selection required. Plug in and heat.
Self-Regulating Dual Thermostat: Cuts power at 149°F (65°C), restarts at 113°F (45°C) — the heater manages itself so you don't have to.
CE & TÜV Certified: Backed by EU and German patents. Comes with US Standard, EU, and Australian power cables.
What Vehicles the Titan-B1 Is Built For
The Titan-B1 is built for compact cars, high-displacement ATVs, and snowmobiles — any liquid-cooled engine that needs 1,200W to warm up before the first cold start of the day.
Compact cars — Honda Civic, Toyota Corolla, VW Golf, Ford Focus, and similar small sedans and hatchbacks. If your car sits outside in winter or your garage drops below freezing, plug in 30–60 minutes before you head out.
ATVs and UTVs with 600cc+ engines — Polaris Sportsman 850/1000, Can-Am Outlander 650+, Yamaha Grizzly 700+, and other high-displacement machines. The fixed 1,200W output delivers more consistent heating on larger engine blocks than lower-wattage options.
Snowmobiles — Ski-Doo, Polaris, Arctic Cat, and Yamaha sleds with liquid-cooled engines. Standard interface is 5/8" (16mm) — if your hose is 3/4" or 1", select the matching adapter size when you order.
Why Die-Cast Aluminum Makes This Heater More Precise

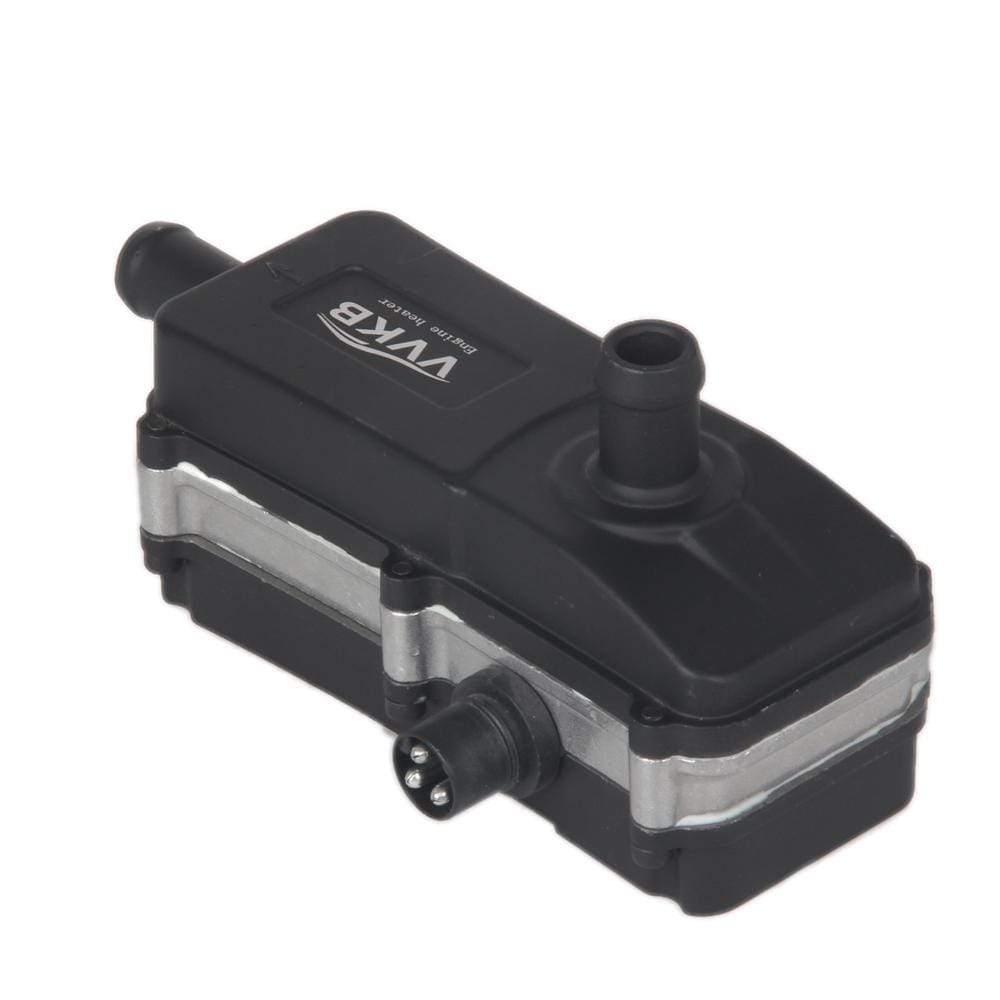

The Titan-B1's heating tube is die-cast directly inside the aluminum body — which means the dual thermostat reads the tube's actual temperature in real time, not just the surrounding coolant.
Most inline heaters monitor coolant temperature from the outside, which creates a lag between what the sensor reads and what the heating element is actually doing. With die-cast aluminum, the thermostat responds the moment the tube reaches 149°F (65°C) — no overshoot, no delay.
The result is consistent, repeatable heating every time you plug in — and a heating tube rated for 8,000 hours of operation.
Titan-B1 Technical Specifications
| Specification | Detail |
|---|---|
| Rated Voltage | 110V / 230V |
| Rated Power | 1,200W |
| Rated Frequency | 50Hz / 60Hz |
| Weight | 2 lbs (0.9 kg) |

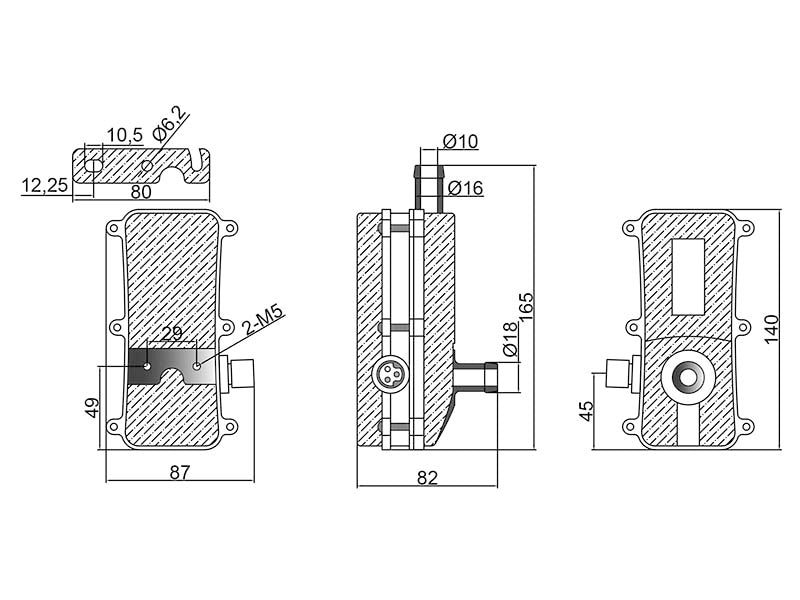

| Dimensions | 6.5" × 3.4" × 3.2" (165 × 87 × 82mm) |
| Interface Diameter | 5/8" (16mm) |
| Pump Type | Magnetic pump |
| Pump Flow | 900 L/hr |
| Pump Life | 5,000 hours |
| Thermostat | Dual — cuts off at 149°F (65°C), restarts at 113°F (45°C) |
| Heating Tube Life | 8,000 hours |
| Heating Tube Material | Stainless steel, die-cast in aluminum |
| Shell Material | Aluminum alloy die-casting |
| Waterproof Rating | IPX4 |
| Certification | CE, TÜV, RoHS, FCC |
| Warranty | 1 year |
| Installation Method | In-line with coolant hoses (series or parallel) |
How to Install the Titan-B1
Install takes under an hour. Full step-by-step instructions and a video walkthrough are at the engine block heater installation guide.

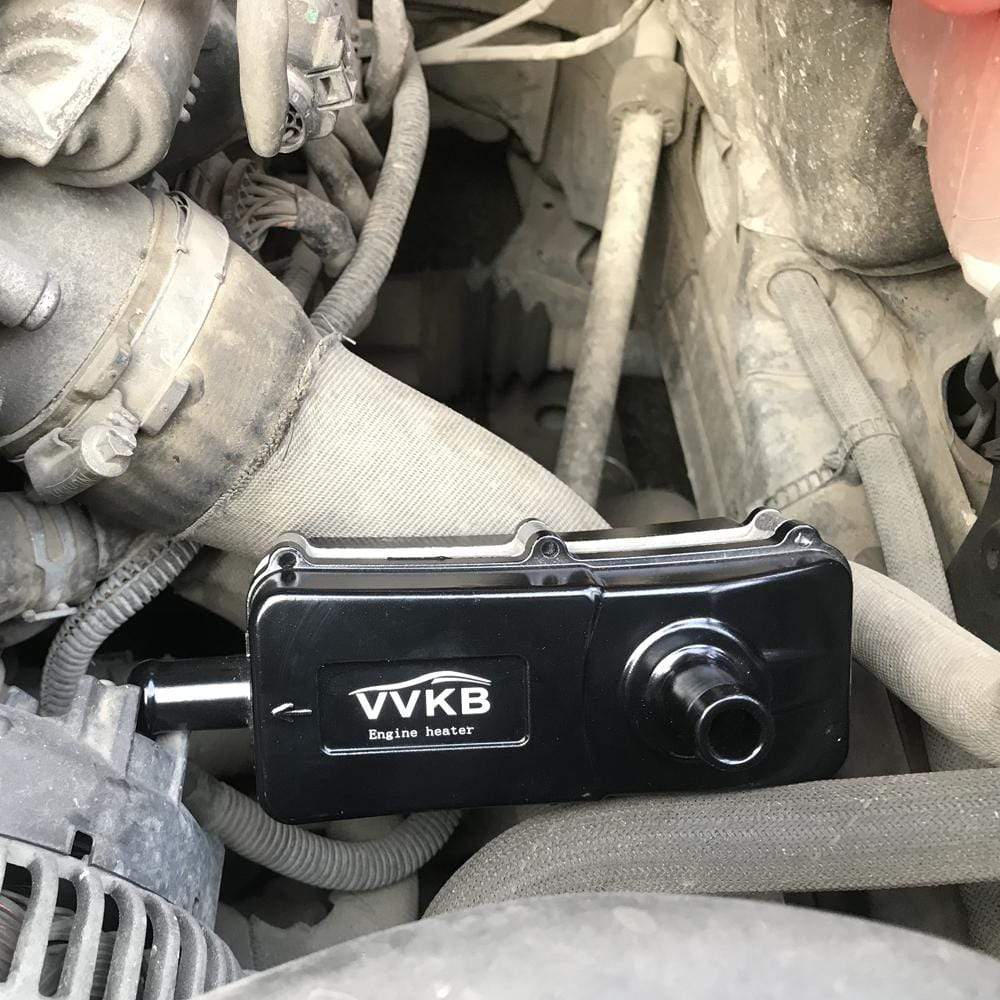

Step 1 — Connect in-line to a coolant hose near the bottom of the engine. Cut into the lower coolant hose and connect the heater in series. The heater needs to sit at the lowest point of the engine.
Step 2 — Point the outlet upward. The outlet port must face up or tilt upward toward the engine. This lets air escape naturally when you bleed the system.
Step 3 — Bleed all air from the heater and hoses. Air trapped inside is the most common installation problem — it stops coolant from circulating and causes the heater body to overheat. Take your time on this step.
Step 4 — Keep at least 4–6 inches (10–15 cm) from fuel lines. Mount the heater away from any fuel pipes or rubber hoses that could degrade from heat.
Step 5 — Plug in 30–60 minutes before you start the engine. Never run the engine while the heater is plugged in — starting the engine while it's connected creates air bubbles that can damage the heating element.
Frequently Asked Questions
Does the Titan-B1 work on air-cooled engines?
No — the Titan-B1 is an inline coolant heater and requires a liquid-cooled engine with coolant hoses. Air-cooled engines don't have a coolant system, so there's no hose to connect the heater to.
What's the difference between the Titan-B1 and the Titan-P1?
The Titan-P1 comes in multiple wattage options (1,000W–2,000W) and is designed for standard ATVs, UTVs, and snowmobiles. The Titan-B1 is a fixed 1,200W with a die-cast aluminum body and suits larger-displacement ATVs, compact cars, and extreme cold climates where you need more heating power with precise thermostat control.
How long does it take to warm up the engine?
30–60 minutes is enough for most engines in typical cold-weather conditions. Plug in before you head out — you don't need to leave it running for hours.
Can I leave the Titan-B1 plugged in overnight?
The dual thermostat cuts power automatically at 149°F (65°C) and restarts at 113°F (45°C), so the heater manages itself. That said, we recommend a plug-in timer set for 30–60 minutes before you start — there's no benefit to running it all night, and it puts unnecessary hours on the pump.
My heater feels hot but my engine isn't warming up — what's wrong?
Air is trapped inside the heater or the hoses — this is the most common installation issue. Re-bleed the system, make sure the outlet port is pointing upward, and confirm coolant is flowing freely. Full troubleshooting steps are in the engine block heater installation guide.
See the Titan-B1 Engine Block Heater Up Close — Unboxing and Overview

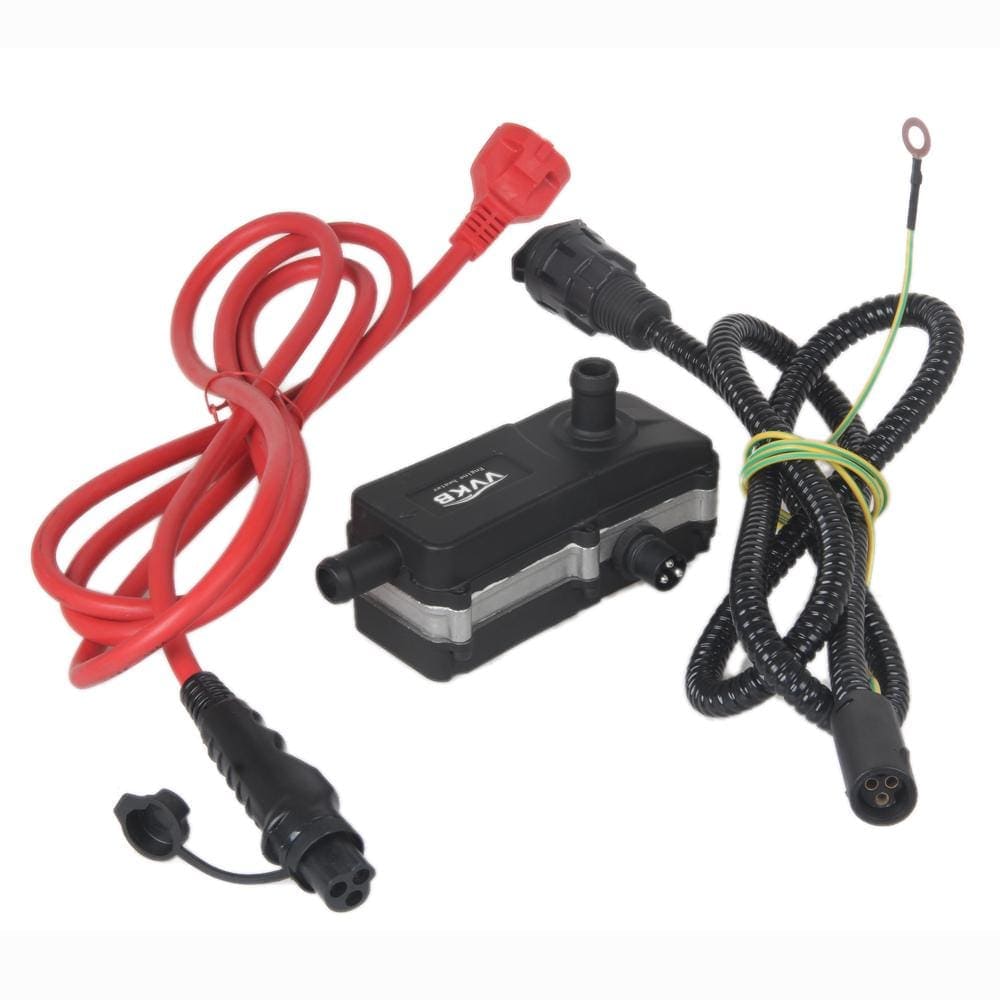

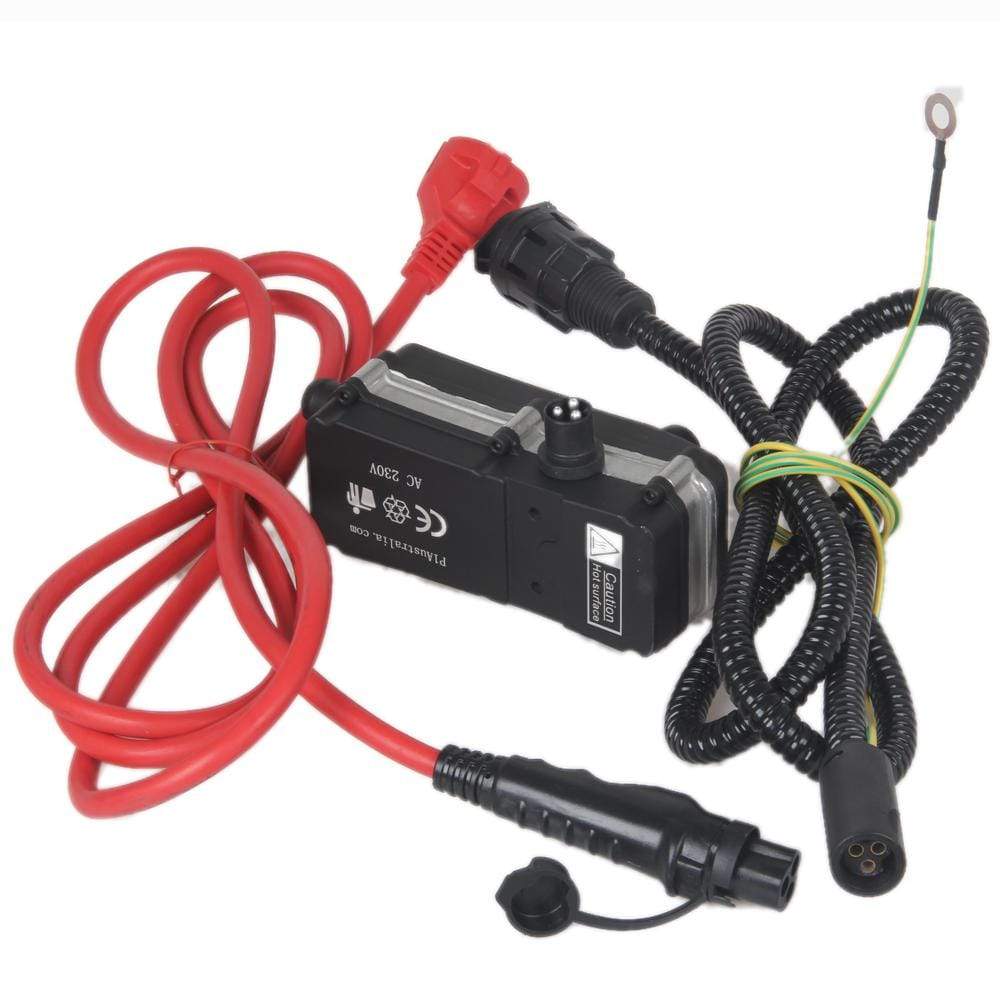

Watch a full unboxing of the Titan-B1 — see the die-cast aluminum body, the detachable power cable, and every component in the box before you install it.
