Diesel Fuel Tank Heater — Keep Diesel Flowing When Temperatures Drop

Your diesel engine can't start if the fuel won't flow. Below 32°F (0°C), wax crystals begin forming inside your diesel tank — slowly clogging your fuel filter, choking your fuel lines, and leaving your truck, tractor, or generator dead in the cold at the worst possible moment.

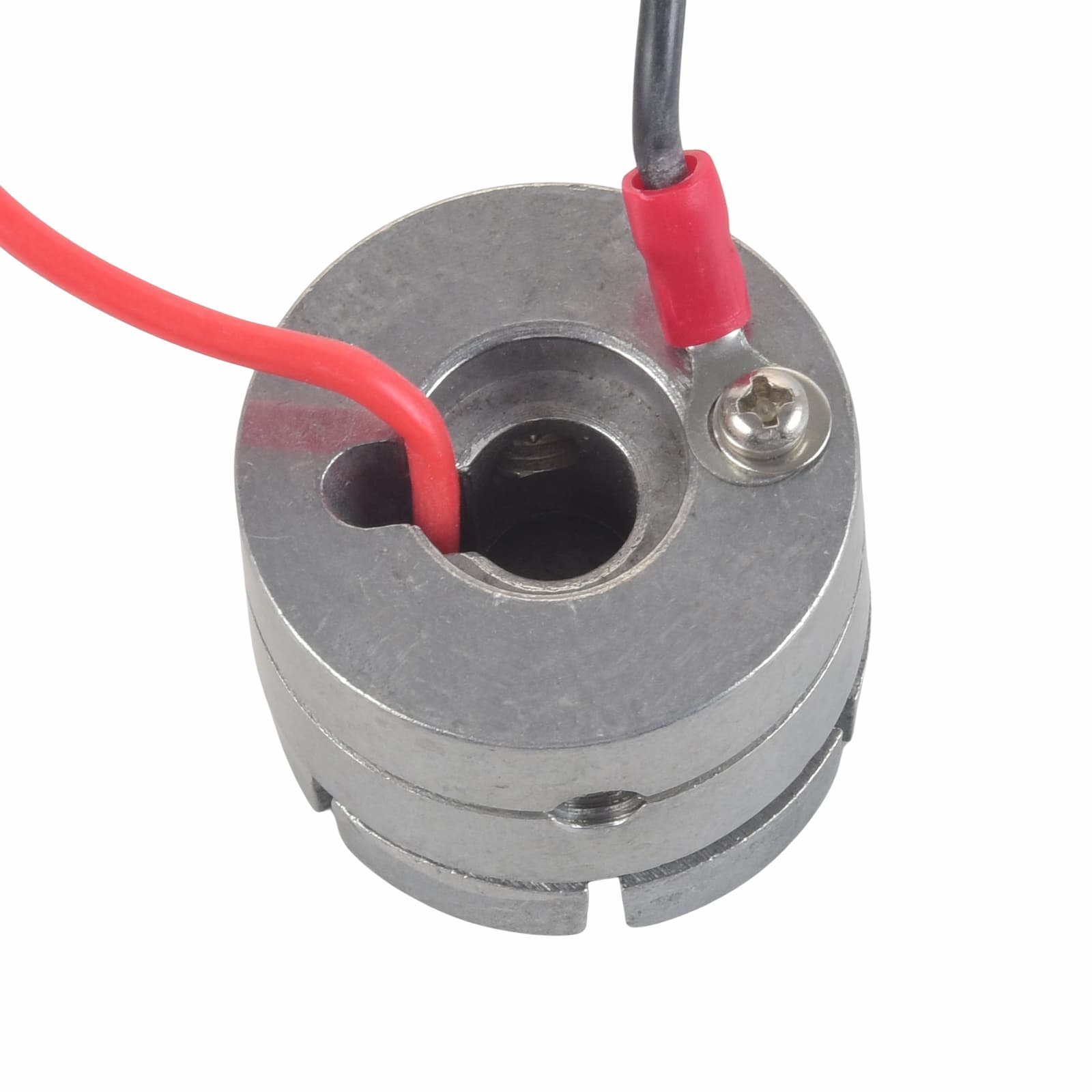

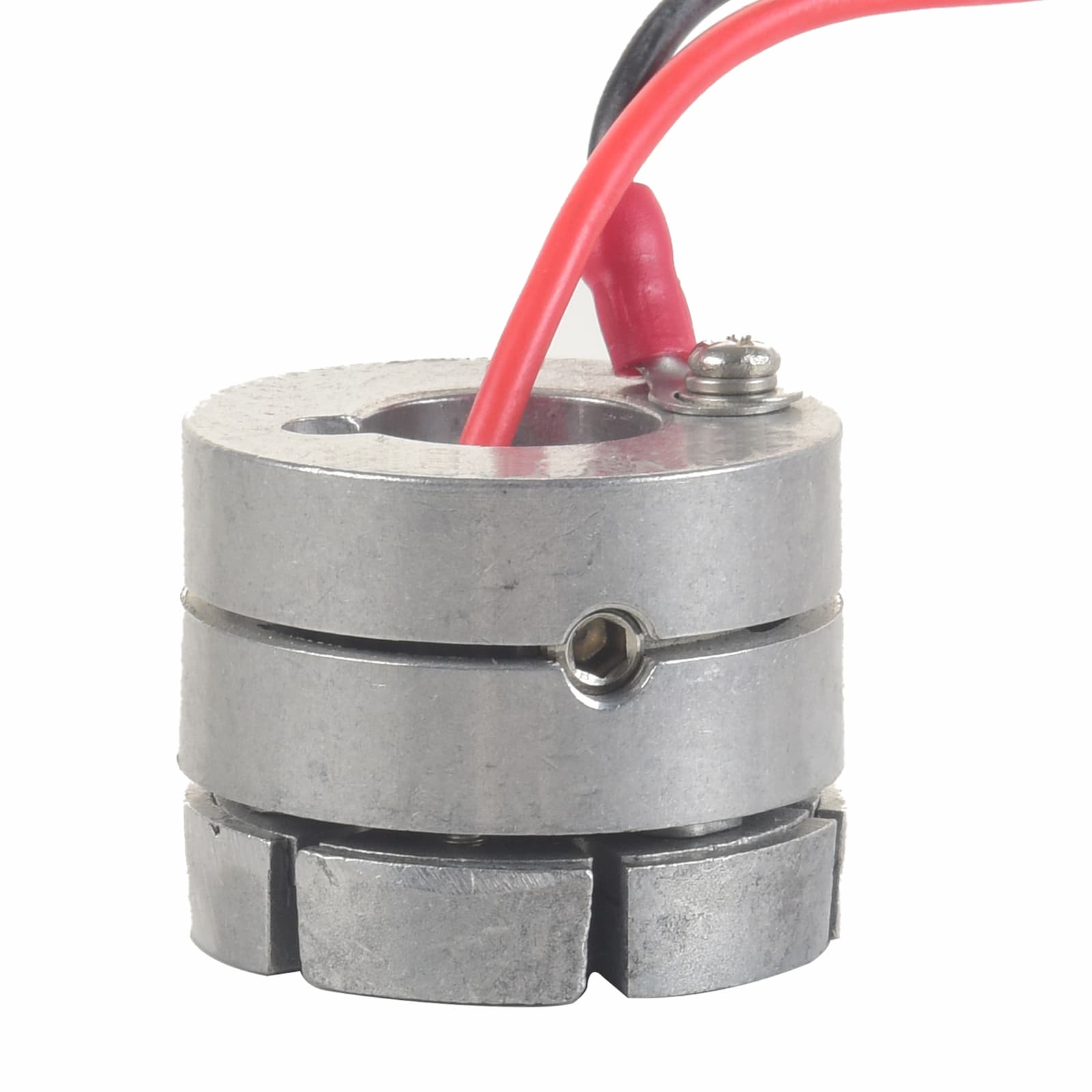

The VVKB Zeus-F3 diesel fuel tank heater stops the problem at the source. A 150W self-regulating PTC element installs inside your fuel tank and warms the diesel right at the pickup — the exact spot that feeds your engine — so the first fuel drawn on a cold start is already fluid. Push the button, wait 3–5 minutes, turn the key. The fuel flows. The engine starts. You move on.

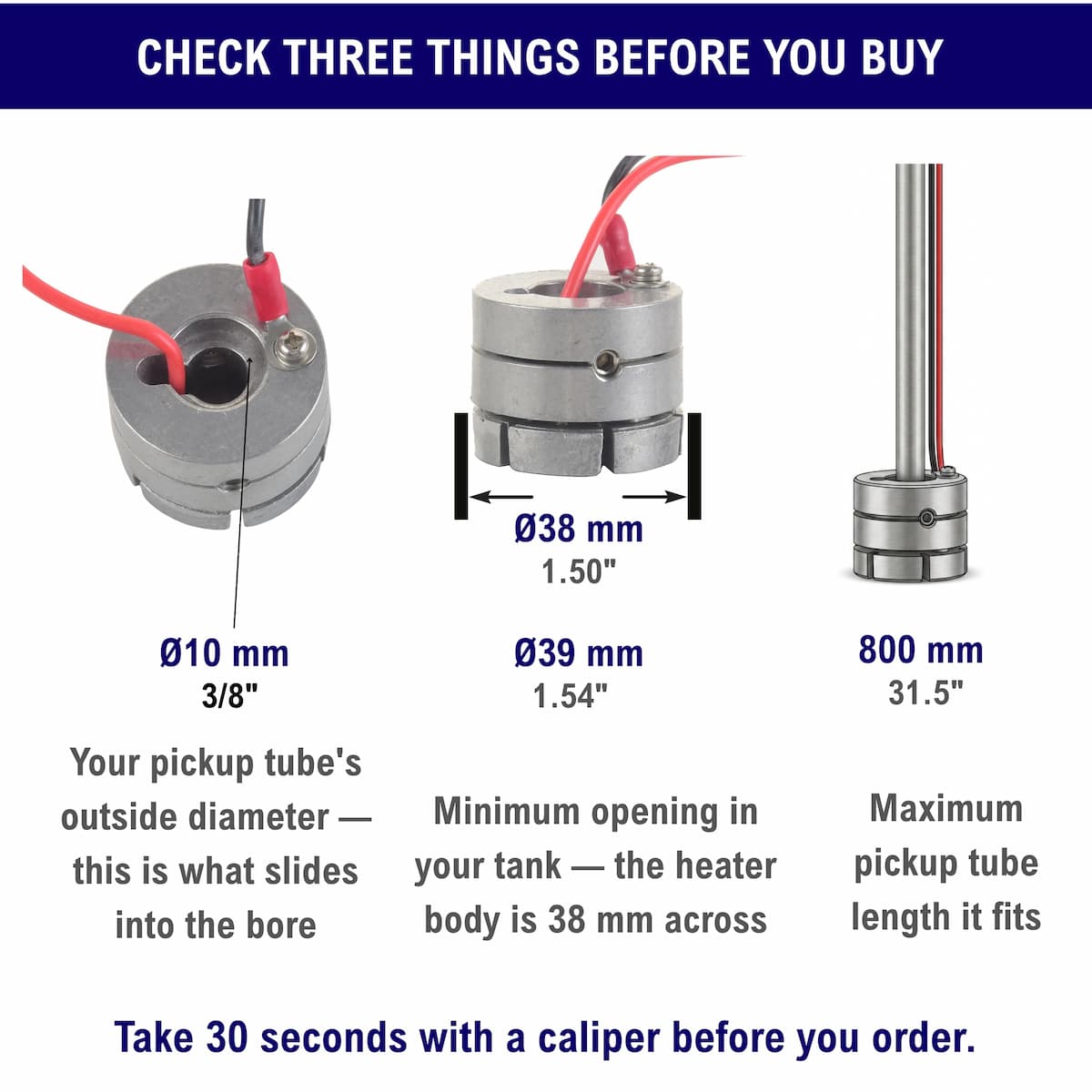

12V. Sealed to IP68, with a self-regulating PTC element that can't overheat — backed by a 1-year warranty and free shipping. Measure your tank opening before you order, and if it doesn't fit or arrives defective, we make it right.

Why Diesel Fuel Gels — And What It Actually Costs You

Diesel fuel starts forming wax crystals at 32°F (0°C) — its Cloud Point — long before your thermometer hits what most people consider "dangerously cold." As the temperature keeps dropping, those crystals thicken until, somewhere around 14°F (-10°C) for summer-blend fuel, they block your fuel filter completely. Your engine starves for fuel and shuts down.

There are two separate problems happening in your tank at low temperatures. First, the waxy hydrocarbons naturally present in diesel solidify and clump together. Second, any trace moisture dissolved in the fuel freezes and turns the filter paper into a solid block of ice.

Both failures produce the same result: no fuel reaches the injectors, and the engine won't start — or starts and dies minutes later.

The real cost isn't just the repair bill. A semi truck stuck roadside in January means a missed delivery window, a tow that runs $300–$500 or more, and hours of lost time. A farm tractor that won't start in harvest season means crops sitting in a field. A backup diesel generator that fails during a power outage means exactly the wrong kind of surprise.

Here's the math that matters: a few minutes of pre-start warm-up pulls about as much power as cranking your starter. A single winter tow costs $300–$500. You do the arithmetic.

How the VVKB Diesel Fuel Tank Heater Works

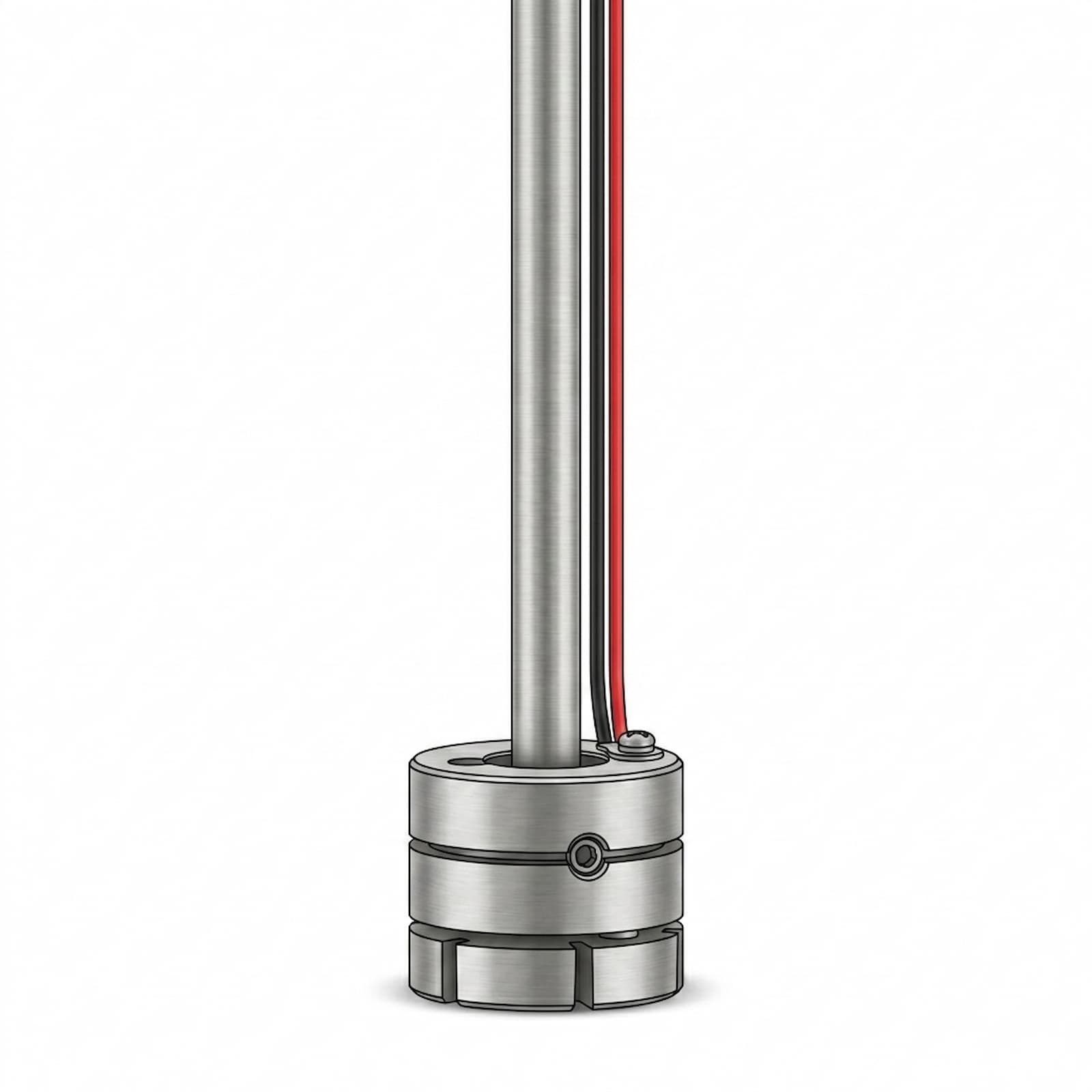

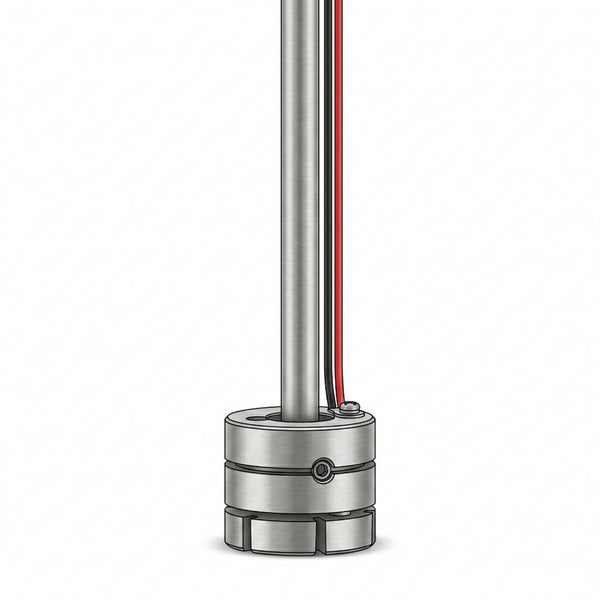

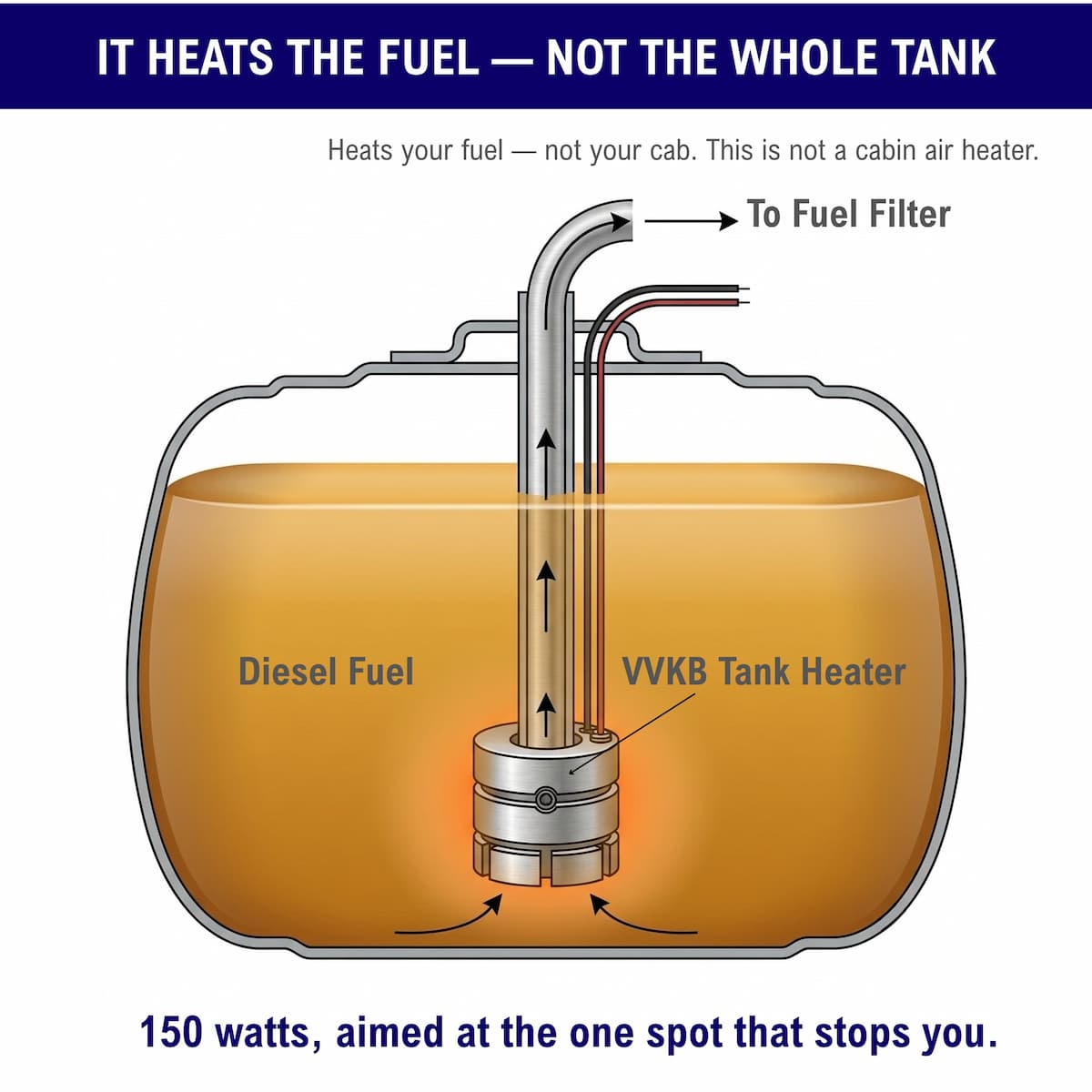

The Zeus-F3 is an in-tank heater — the heating element sits inside your fuel tank, submerged in diesel, mounted right at your fuel pickup. That direct contact means the fuel warms up fast, exactly where your engine draws it, with no heat lost through tank walls or fuel lines.

The element uses PTC (Positive Temperature Coefficient) technology. PTC material is self-regulating: as the diesel temperature rises, the electrical resistance of the element increases automatically, drawing less power. When the fuel is warm enough, the heater pulls minimal wattage. When temperatures drop again, it ramps back up. No thermostat needed. No risk of overheating.

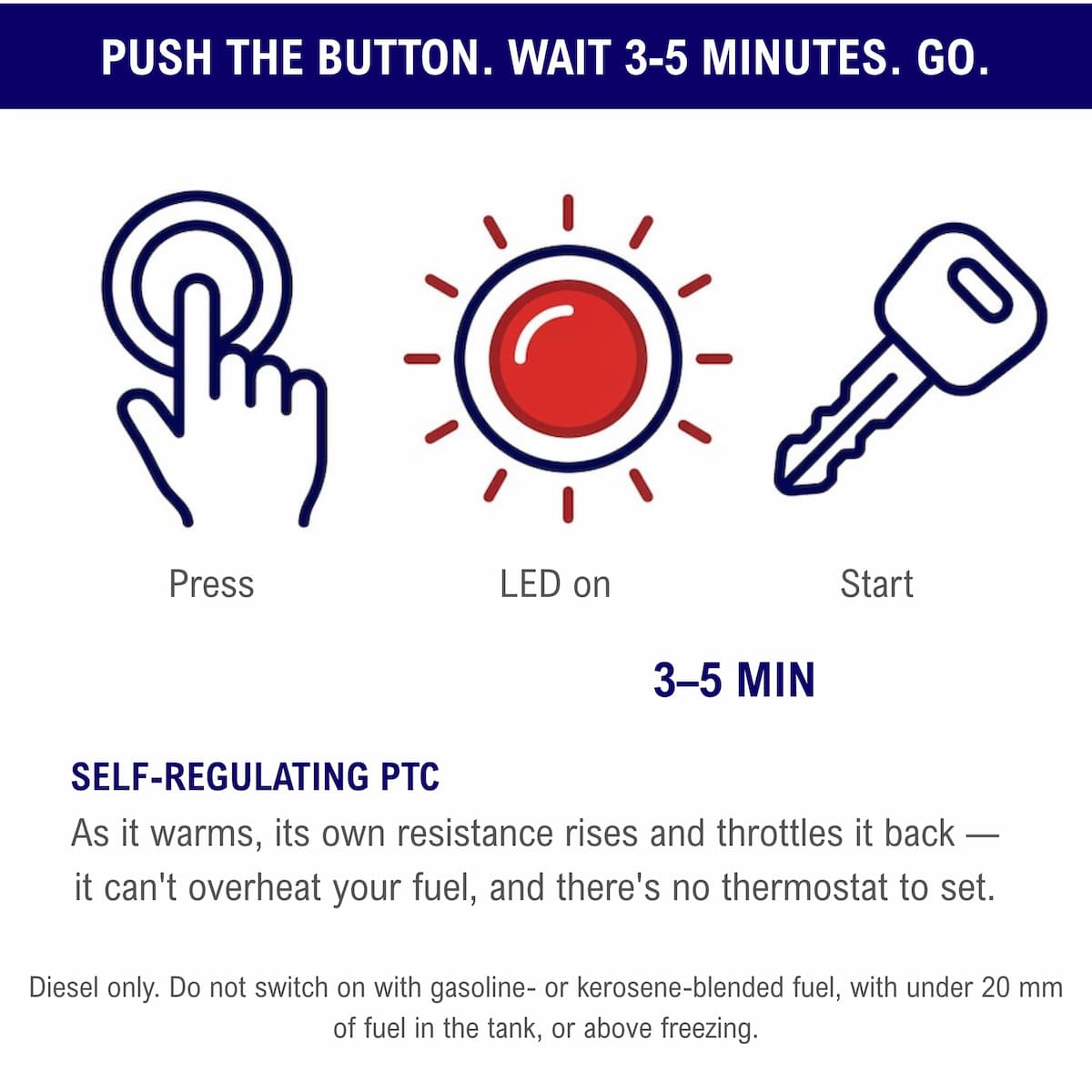

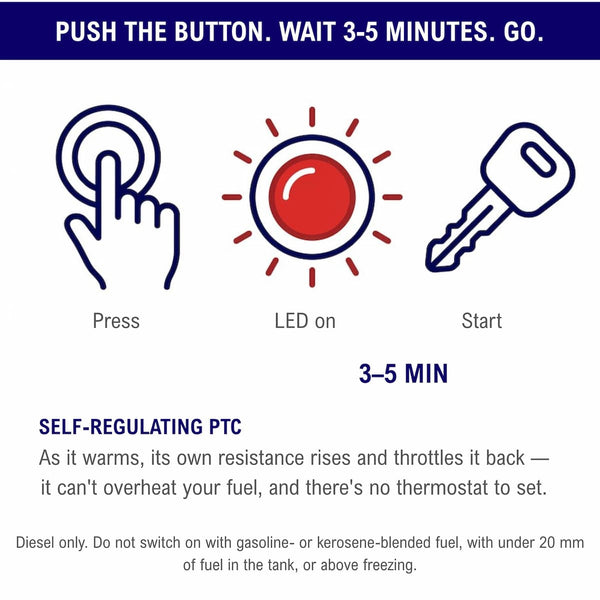

At 150 watts, the Zeus-F3 puts real heat exactly where it counts — the pickup point — instead of trying to warm a whole tank it can't. That's why it clears fuel fast enough to matter on a cold morning: press the dash button, give it 3–5 minutes, and the fuel moving toward your filter and injectors is already above the wax threshold by the time you crank.

One important distinction: this heater warms the diesel inside your tank. It does not burn fuel to produce heat — that's a completely different product category (diesel air heaters or parking heaters). The Zeus-F3 draws 150W from your 12V electrical system and uses that power entirely to keep your fuel fluid.

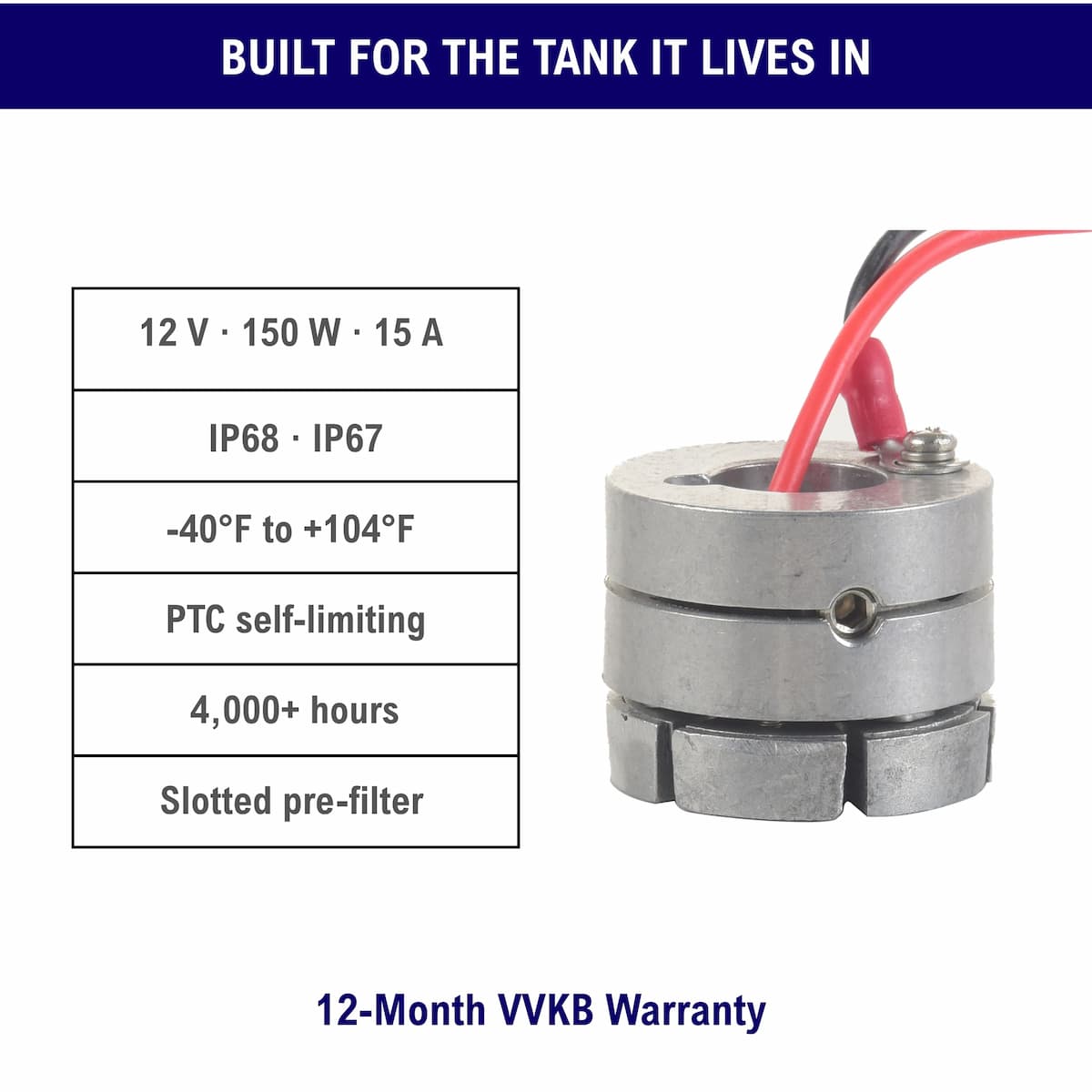

Product Specifications

Input Voltage	12V DC (10.8–15V)
Rated Power	150W
Current Draw	12.5A @ 12V (15A fuse included)
Heating Technology	PTC (self-regulating)
Installation Location	Inside fuel tank, at the pickup
Ingress Protection	IP68 / IP67
Operating Temperature	-40°F to +104°F (-40°C to +40°C)
Element Lifespan	4,000+ hours
Compatible Fuel	Diesel, biodiesel up to B20
Warranty	1 year
Shipping	Free

The 4,000+ hour element lifespan covers several full cold seasons of use before the heating element needs replacing. Many operators swap the whole unit every few years as cheap insurance against a dead-of-winter no-start.

At 150W, the draw is modest for your starting battery over a short pre-start warm-up — and once you're driving, the alternator carries it without you noticing. (For reference, 150W is roughly what a pair of auxiliary driving lights pulls.)

Who Needs a Diesel Fuel Tank Heater

If you run any diesel-powered equipment through winter, this heater belongs in your fuel tank. These are the four situations where a frozen fuel tank costs you the most.

Semi Trucks & Commercial Fleets

A fuel-gelled semi truck in January isn't just a mechanical problem — it's a missed delivery window, a breach of contract, and a $400+ tow bill before 6am. The old workaround is to idle all night to keep the fuel warm — but idling burns roughly a gallon of diesel an hour (about $30–$40 over a cold night), piles engine hours onto your maintenance clock, and runs afoul of anti-idling laws in a growing list of states. The Zeus-F3 delivers the same result — fluid fuel at first crank — without the fuel bill, the wear, or the ticket.

If you're operating in the northern US, Canada, or any region that regularly drops below 20°F (-7°C), summer-blend diesel in your tank is a liability from October through March. The Zeus-F3 warms the fuel at your pickup so the engine fires on the first turn of the key.

Farm Tractors & Agricultural Equipment

Harvest doesn't wait for warm weather, and neither does planting season. If your tractor won't start at 5am, you're losing daylight you can't get back — and calling a mechanic to a remote field in winter is a slow, expensive process.

Farm equipment sits idle for long periods between uses, which makes cold-start gelling even more likely. The Zeus-F3 installs directly into your tractor's fuel tank and clears the fuel at the pickup whether the machine runs daily or sits for a week between jobs.

Diesel Generators

A backup generator that fails to start during a power outage defeats its entire purpose. Diesel generators are particularly vulnerable to fuel gelling because they often sit unused for months — and the first time you need them is usually during a winter storm.

The Zeus-F3 runs on your generator's own 12V system, or on any external 12V DC power source. Warm it before you start during cold months and your generator fires on the first attempt, every time.

RVs, Camper Vans & Boats

Winter camping and cold-weather cruising push your diesel system harder than summer use ever will. When your RV or boat sits overnight in sub-freezing temperatures, fuel gelling is a real risk — especially if you're running winter-blend diesel at the edge of its rated range.

Rather than relying on anything to keep an entire tank warm all night, you run a short pre-start cycle: give the Zeus-F3 a few minutes before you turn the key, and the fuel at your pickup is fluid. Wake up, warm up, start — no fuel-system bleed, no morning spent thawing a filter.

In-Tank vs Inline vs Filter Heater — Which One Do You Need

There are three ways to heat diesel fuel before it reaches your engine. Each installs at a different point in your fuel system and solves a slightly different problem.

	In-Tank Heater	Inline Fuel Heater	Filter Heater
Where it installs	Inside the fuel tank	Between tank and filter	Around the filter housing
What it heats	Fuel at the tank pickup	Fuel moving through the line	Fuel at the filter only
Works before the engine starts	✓ Yes	✗ No	✗ No
Prevents gelling at the source	✓ Yes	Partial	Partial
Best for	Cold-start prevention	Added line protection	Frozen-filter emergencies
VVKB model	Zeus-F3 (this product)	Zeus-F2	Zeus-F1

The in-tank heater is the only solution that works before the engine starts. Inline and filter heaters only activate once fuel is already flowing — which means they can't help you on a cold morning when the fuel at the tank has already gelled overnight.

For most trucks, tractors, and generators in consistently cold climates, the Zeus-F3 in-tank heater is the right starting point. If you're in an extreme-cold region — below -22°F (-30°C) — pairing it with a Zeus-F1 filter heater gives you full coverage from tank to injector.

Frequently Asked Questions

Is this the same as a diesel air heater that burns fuel to heat my cab?

No — these are two completely different products. A diesel air heater (parking heater) burns diesel as fuel to generate heat for your cab or living space. The Zeus-F3 does not burn anything. It uses 150W of electricity from your 12V system to warm the diesel already sitting at your tank pickup, so it flows properly to your engine. One produces heat for people. The other keeps fuel fluid for your engine.

Do I still need an anti-gel additive if I run this heater?

You can run both, and many experienced diesel owners do. Here's the difference: an anti-gel additive only works as prevention — it has to be mixed into the fuel before it clouds, and once the fuel has already gelled, an additive won't rescue it (that takes a warm shop or a reliquefier like Diesel 911). The Zeus-F3 works physically, not chemically: it warms the fuel at your pickup so it flows even after a cold night, and unlike a bottle you have to remember at every fill-up, it's built into the vehicle and works on every cold start for years. Think of the heater as your permanent first line of defense, with additive as cheap backup in the cab.

At what temperature does diesel fuel start to gel?

Diesel begins forming wax crystals at around 32°F (0°C) — the Cloud Point. By roughly 14°F (-10°C), those crystals are dense enough to clog a standard fuel filter, and near -20°F (-29°C) untreated summer fuel stops flowing entirely. Summer-blend diesel gels faster than winter-blend, so if you filled up in October and temperatures dropped in November, your fuel may already be at risk. The Zeus-F3 warms the fuel at your pickup back above the Cloud Point regardless of outside temperature.

Will a tank heater keep my fuel lines and filter from gelling too?

The Zeus-F3 warms the fuel at the tank pickup — the fuel your engine actually draws when you start it, which is what gets you running on most cold mornings. Be aware of its limit, though: if your rig sits outside for long stretches in extreme cold, the exposed fuel lines and filter can still gel on their own, because a tank heater can't reach them. For deep-cold operation (below about -22°F/-30°C) or long outdoor parking, pair it with a Zeus-F1 filter heater so you're covered from tank to injector.

Do I have to cut or drill my fuel tank to install it?

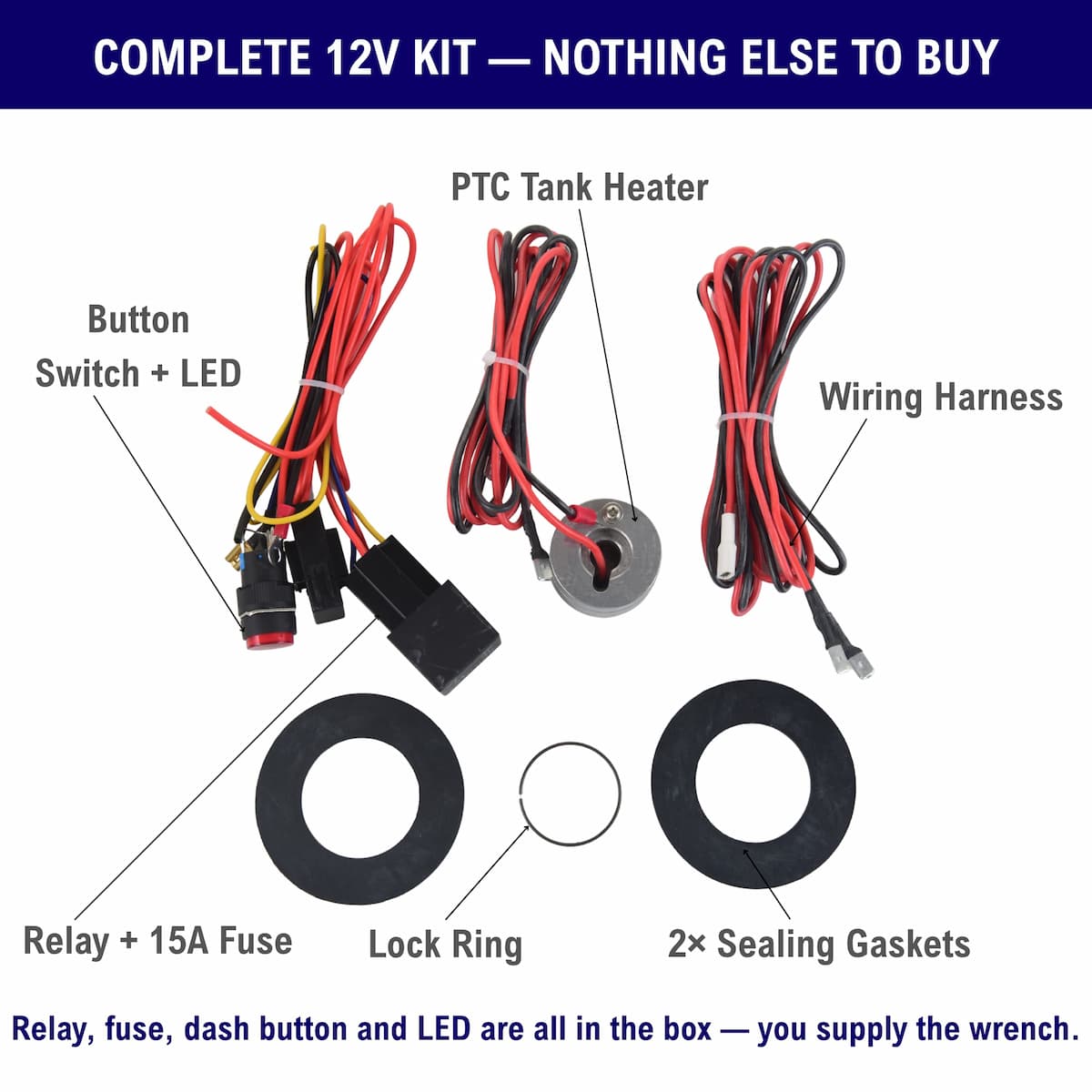

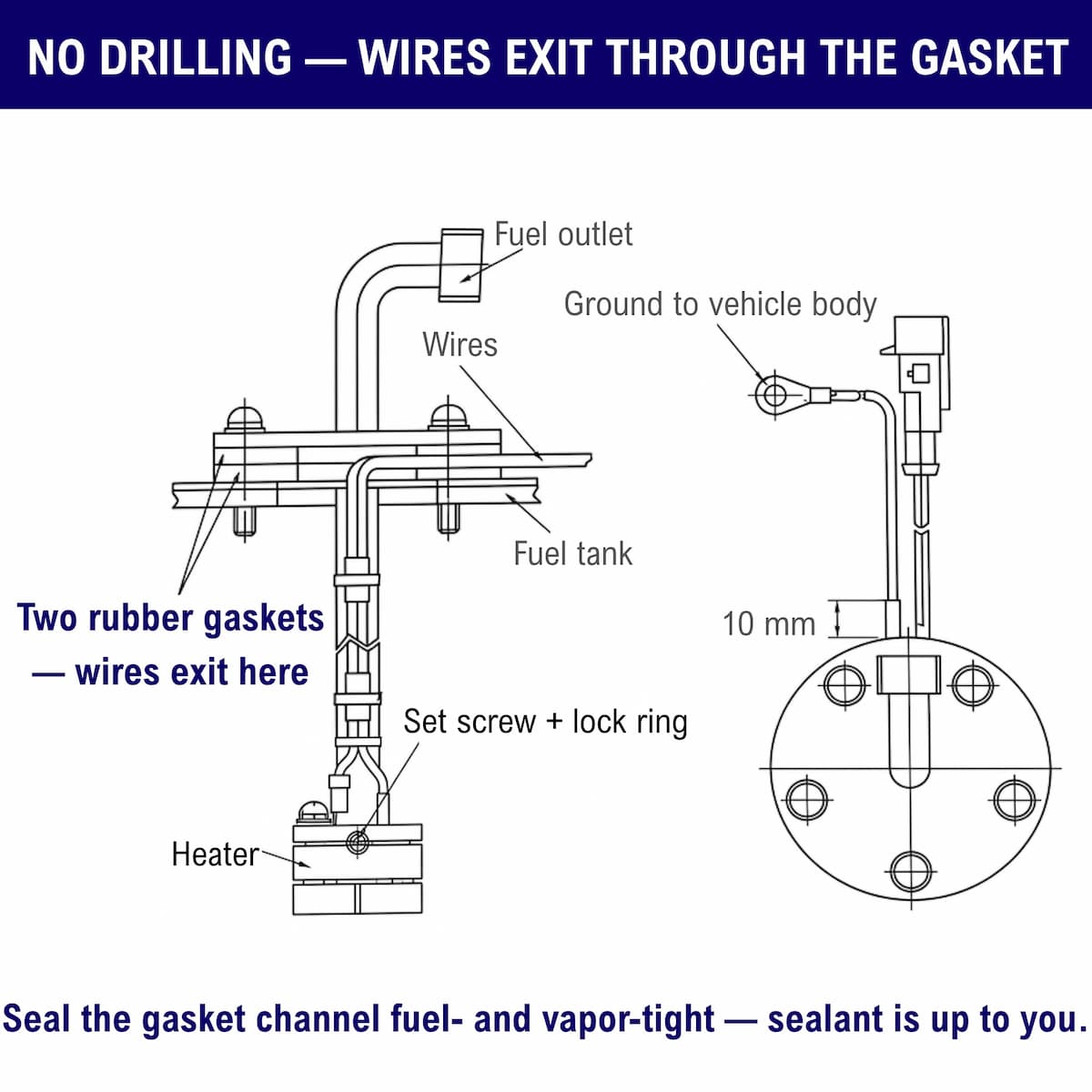

No. The Zeus-F3 mounts through your tank's existing sending-unit / fuel-pickup opening — the heater collar clamps onto the pickup tube, and the wires exit through two rubber sealing gaskets, so there's no cutting or drilling of the tank itself. On reassembly you seal the gasket channel fuel- and vapor-tight. If you can pull and reseat your fuel sending unit, you can install this heater.

Will the heater drain my battery?

Not in normal use. The Zeus-F3 isn't meant to run unattended overnight on a battery. You use it two ways: switched on a few minutes before you start each cold morning to warm the fuel above the gelling threshold, and on while driving so fuel stays warm as the engine runs. At 150W (about 12.5A at 12V), a few minutes of pre-start warm-up has negligible impact on your battery, and while driving, the alternator handles the load easily.

Is it safe to put an electrical element inside a fuel tank?

Yes — PTC heating elements are specifically designed for immersion in diesel fuel. The Zeus-F3 operates at low surface temperature, and PTC technology means the element cannot overheat: as the fuel warms, resistance rises and power draw drops automatically. The unit is sealed to IP68/IP67 and carries a 4,000+ hour rated element lifespan.

My truck has a block heater — doesn't that already prevent gelling?

No. A block heater warms your engine's coolant and oil so the engine cranks and starts more easily — but it does nothing for the fuel, which sits in a tank mounted away from the engine. If the diesel in your tank has gelled, warm oil won't help: no fuel reaches the injectors. The Zeus-F3 solves the other half of the cold-start problem by keeping the fuel itself fluid.

Can I use it on a diesel generator?

Yes, and generators are one of the best use cases for this heater. Backup generators often sit unused for months, then get called on during a winter power outage — exactly when fuel gelling is most likely. Connect the Zeus-F3 to the generator's own 12V starting battery and warm it during cold months. Your generator will start on the first pull when you need it most.

Does it work with biodiesel blends?

Yes. The Zeus-F3 is compatible with standard diesel and biodiesel blends up to B20. Biodiesel has a higher Cloud Point than petroleum diesel — it starts gelling at warmer temperatures — so if you're running B20, activate the heater earlier in the season, around 40°F (4°C) rather than waiting for freezing temperatures.

Winter doesn't give you a warning before your fuel gels. The Zeus-F3 costs less than a single tow call, installs at your tank pickup, and puts 150 watts exactly where cold fuel stops you.

Free shipping. 1-year warranty.
