At 32°F (0°C), two things start attacking your diesel filter at the same time. Most drivers only know about one of them. They meet the second one at 6 a.m., when the engine cranks and won't catch.
Two Reasons Your Diesel Filter Dies in Winter
Your fuel filter is the first thing cold weather kills. Two separate enemies clog it — and they hit together.
Frozen water. Water rides in every tank of diesel. It freezes at 32°F (0°C). Modern filters trap particles down to 2 microns, so they catch ice crystals too. Once ice packs the filter paper, fuel stops. Your engine quits.
Paraffin wax. Diesel carries dissolved wax. At 32°F (0°C) it starts to crystallize. By 14°F (-10°C) it turns semi-solid and blankets the filter as tightly as ice. This is the one that catches most drivers off guard.

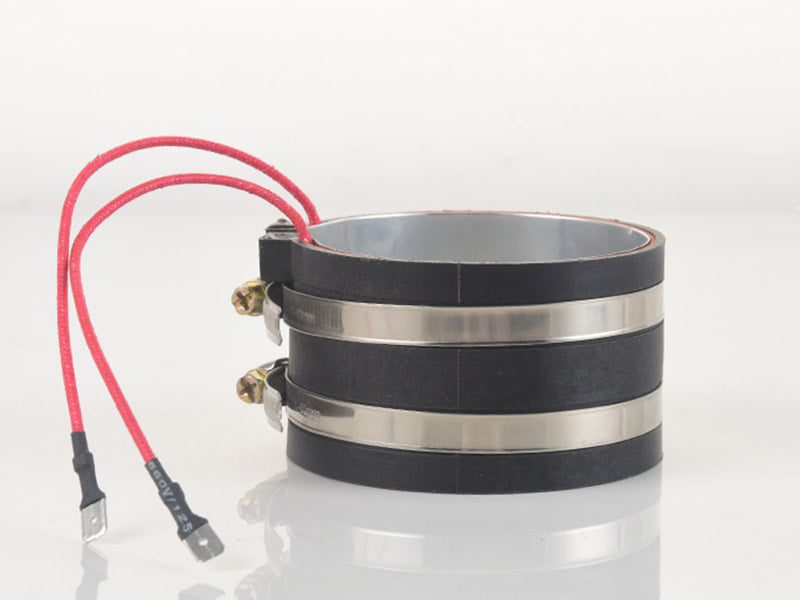

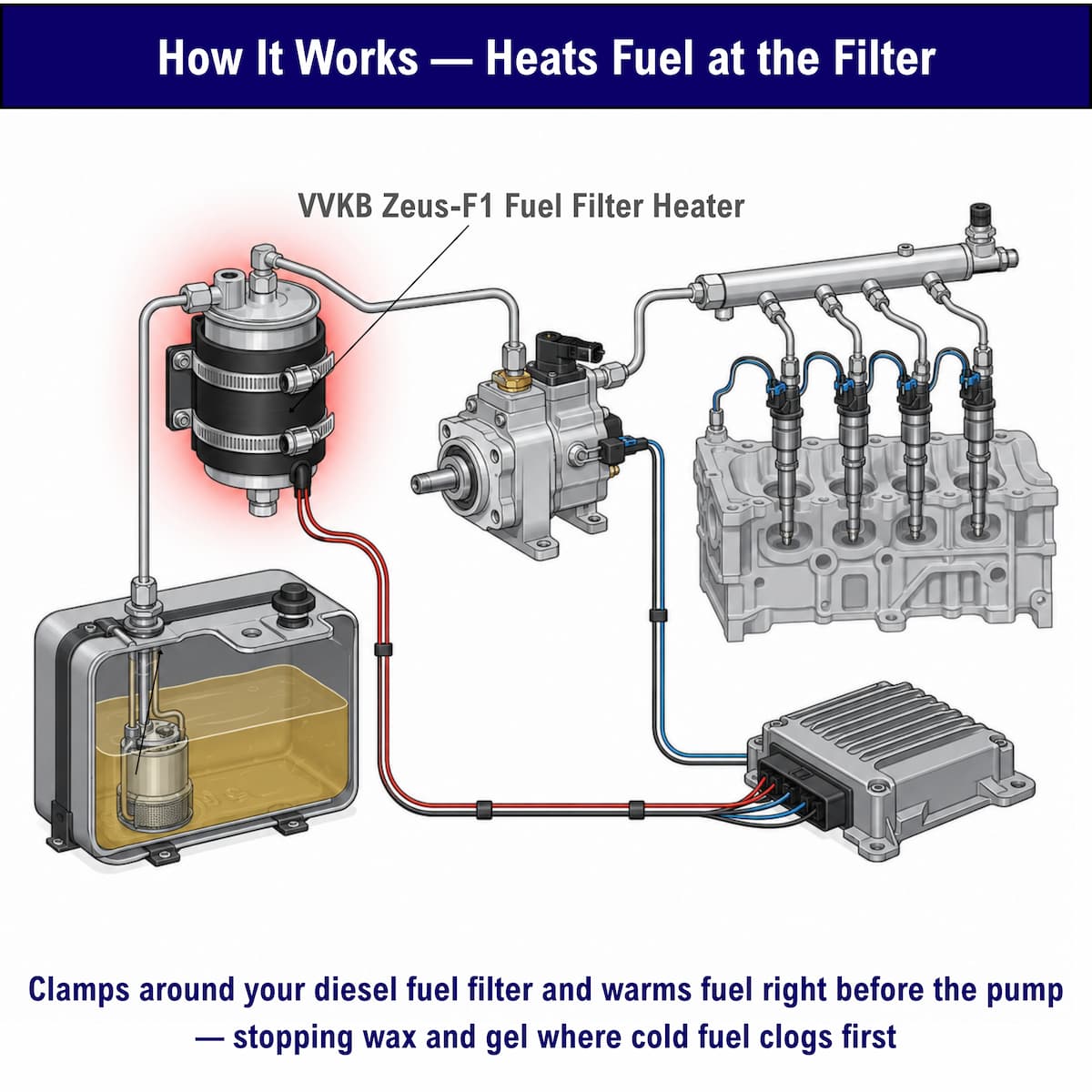

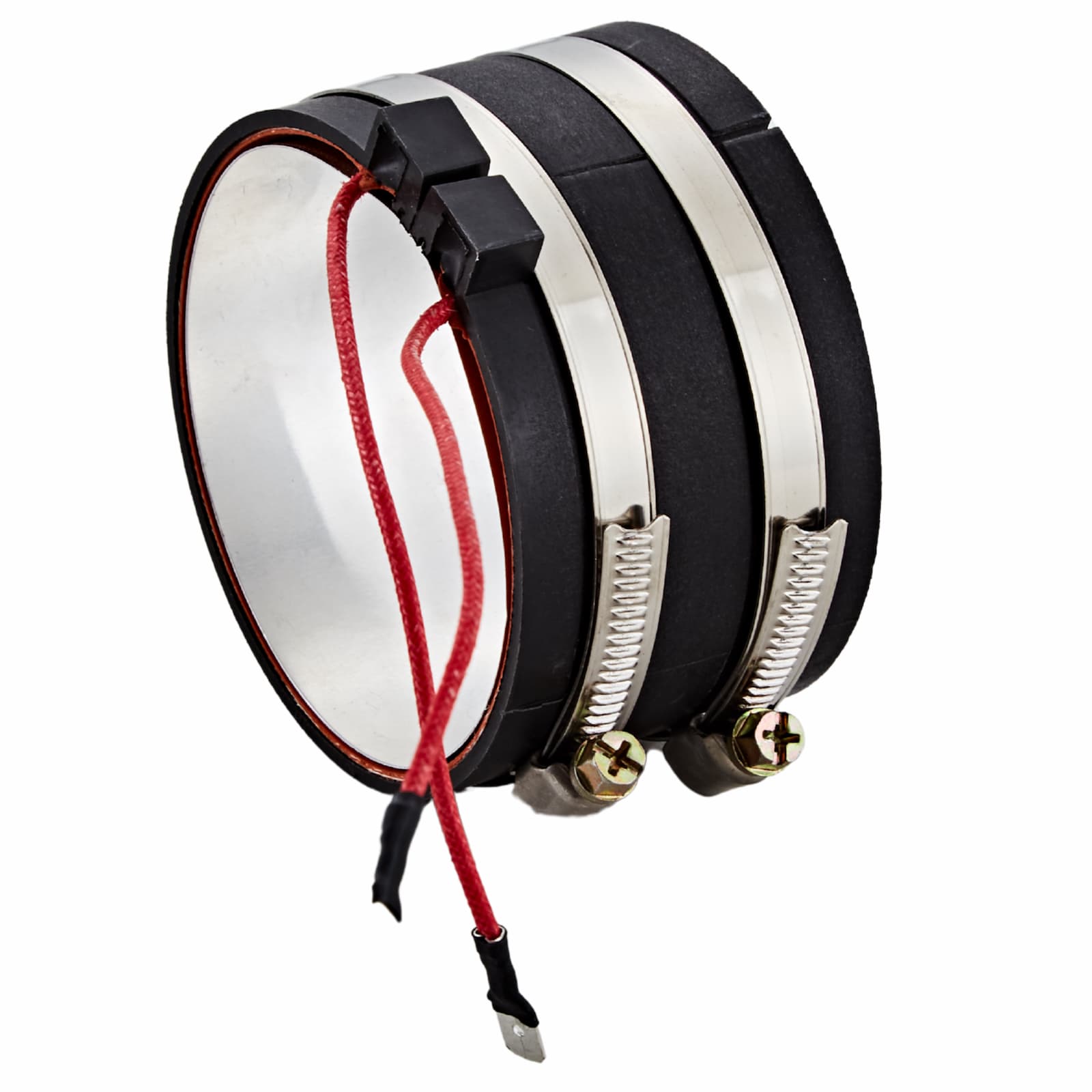

The Zeus-F1 clamps around the outside of your filter housing. It holds the filter warm enough that neither ice nor wax can form. Fuel flows. The engine starts.

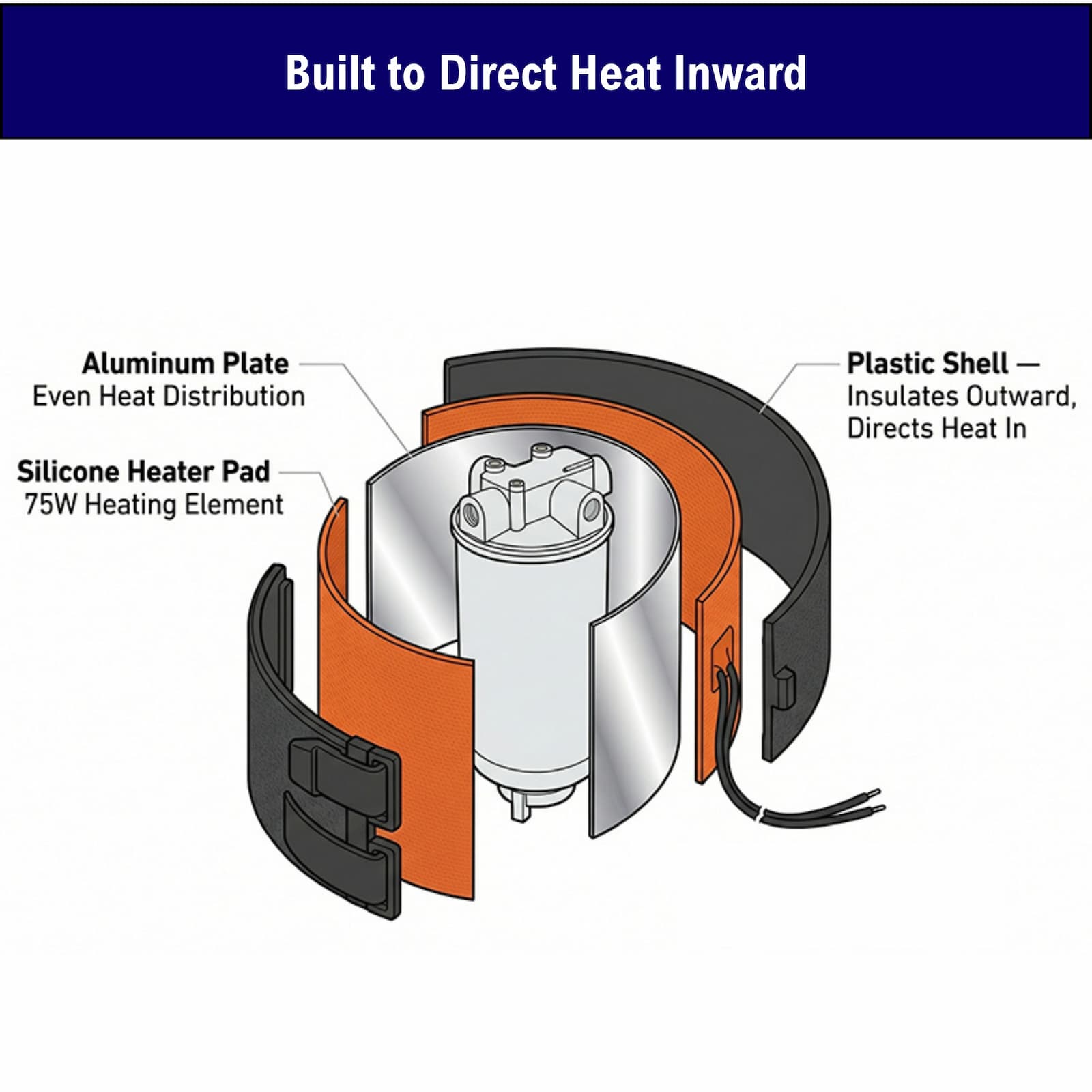

Three Layers That Warm the Filter — Not Just Wrap It
The Zeus-F1 is not a plain heat wrap. It has three layers, each doing one job.
The inner layer is a thin aluminum plate that sits flush on your filter housing. Aluminum spreads heat fast and evenly across the whole filter surface, so you get no hot spots.
Behind it sits a silicone heater pad. It gives steady, self-limiting heat — low enough that no thermostat is needed. The outer plastic shell closes the circuit and insulates the outside, so heat drives into the filter instead of the air.
You reach working temperature in 3–6 minutes, with no complex electronics to fail.
Measure Your Filter First — Then Pick Your Size

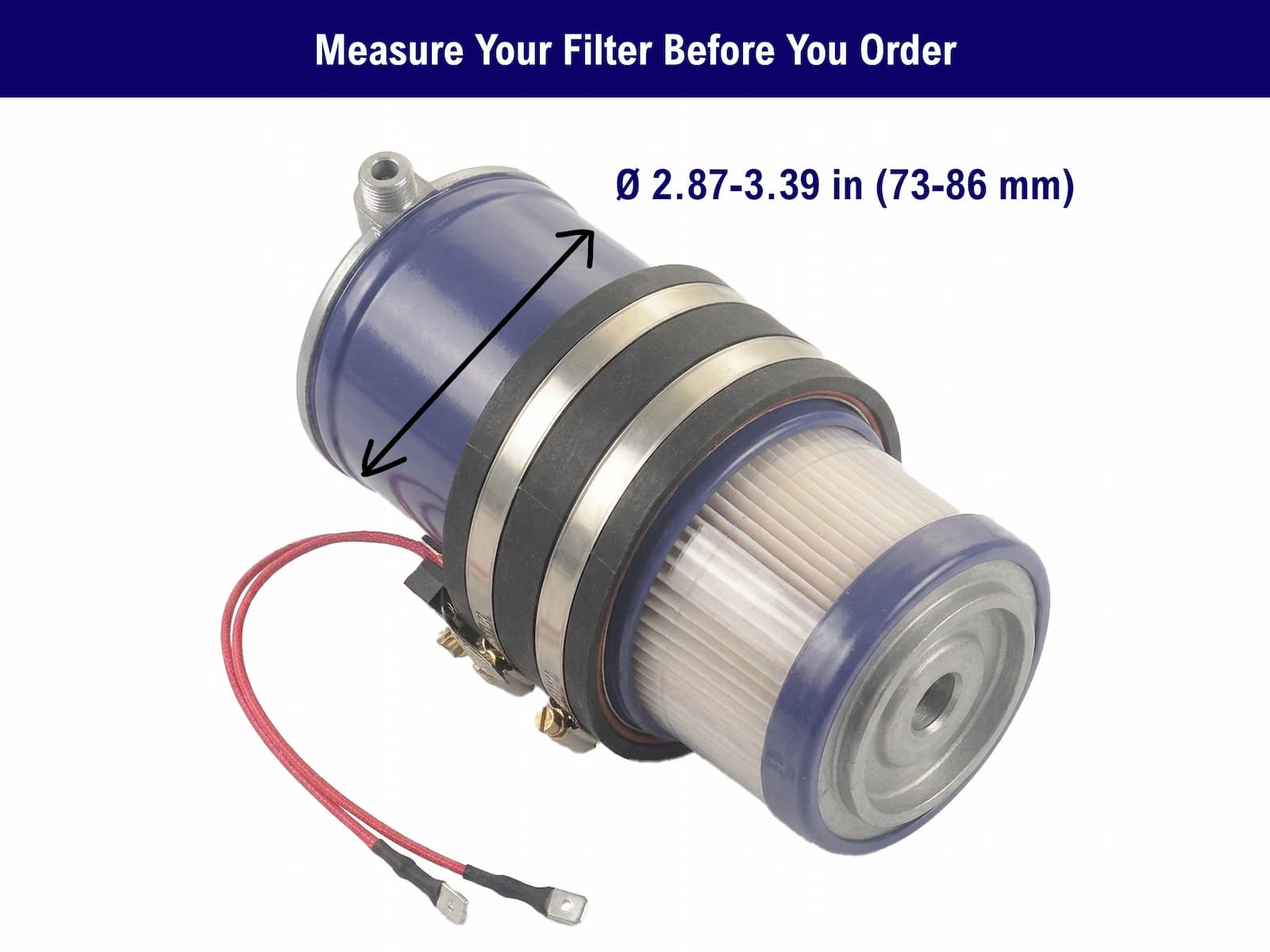

You need exactly one number: the outer diameter of your fuel filter housing. No calipers? Wrap a string around the widest part, mark where it meets, measure it, then divide by 3.14 for the diameter in inches.
| Size | Fits Filter Outer Diameter | Power | Availability |
|---|---|---|---|
| Standard | 2.9"–3.4" (73–86mm) | 75W | In stock — add to cart above |
| Medium | 3.1"–3.6" (78–91mm) | 100W | Made to order |
| Large | 3.4"–4.1" (86–105mm) | 120W | Made to order |
If your measurement lands in the overlap between two sizes, choose the larger one — it clamps more securely.
Running a filter above 86mm, or fitting out a whole fleet? Email info@vvkb.com with your filter diameter and quantity, and we'll match the band to your housing before you order.

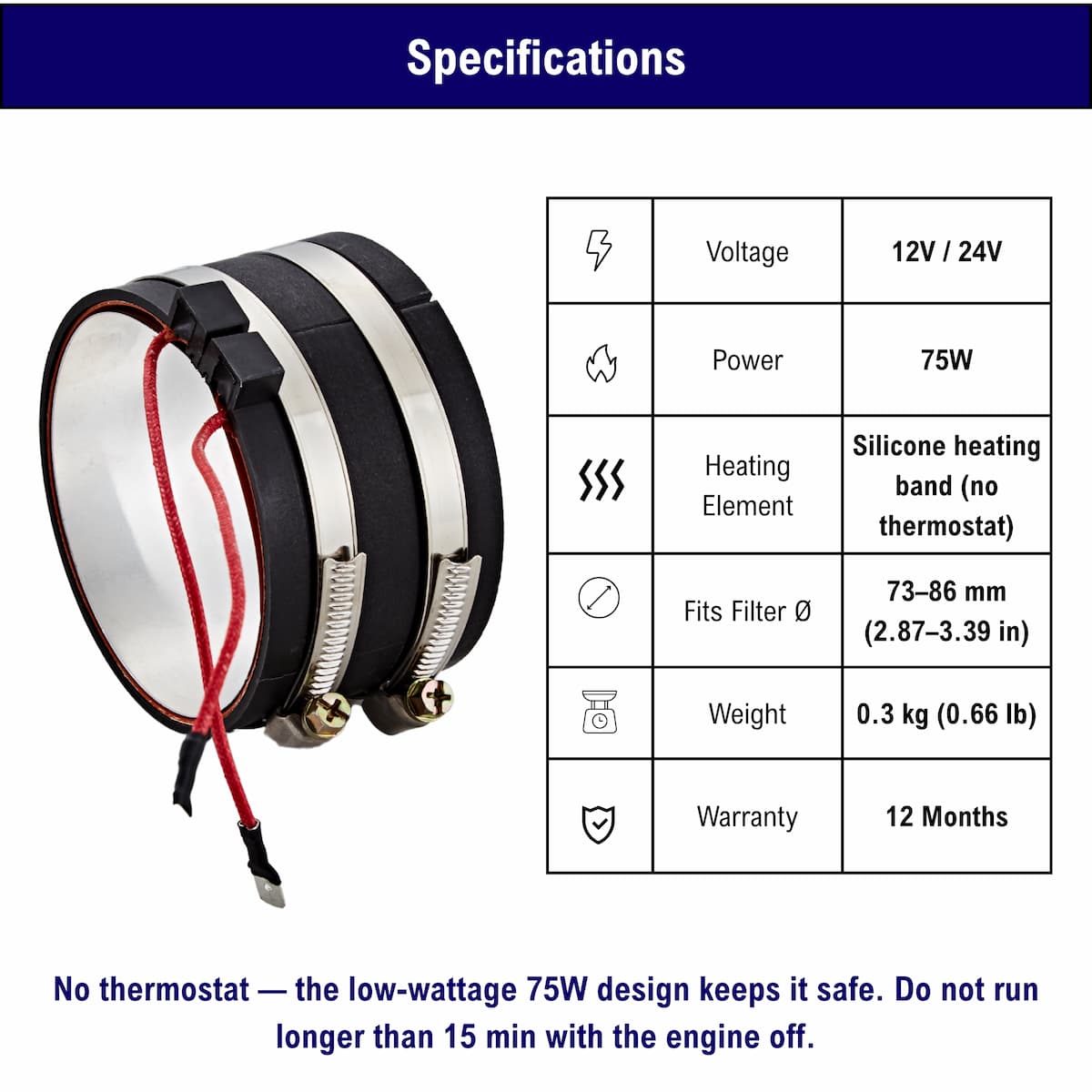

Specifications
| Brand | Vvkb |
| Model | Zeus-F1 |
| Rated Power | 75W standard (±10%) — 100W / 120W for made-to-order larger sizes |
| Voltage | 12V / 24V (voltage-specific — choose to match your system) |
| Fits Filter Diameter | Standard 2.9"–3.4" (73–86mm); up to 4.1" (105mm) made to order |
| Preheat Time | 3–6 minutes |
| Operating Temperature | -40°F to +104°F (-40°C to +40°C) |
| Heating Element | Silicone heater pad with aluminum plate (self-limiting, no thermostat) |
| Weight | 0.3 kg (0.66 lb) |
| Warranty | 12 months |

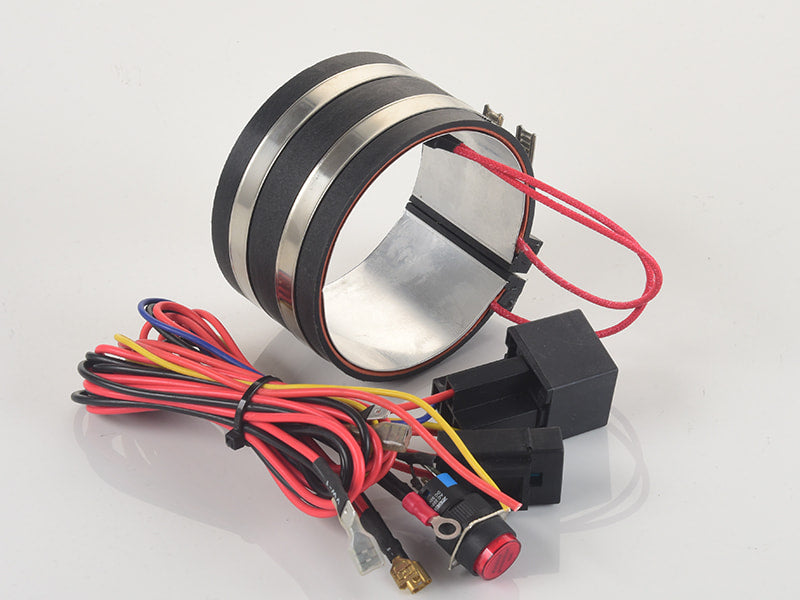

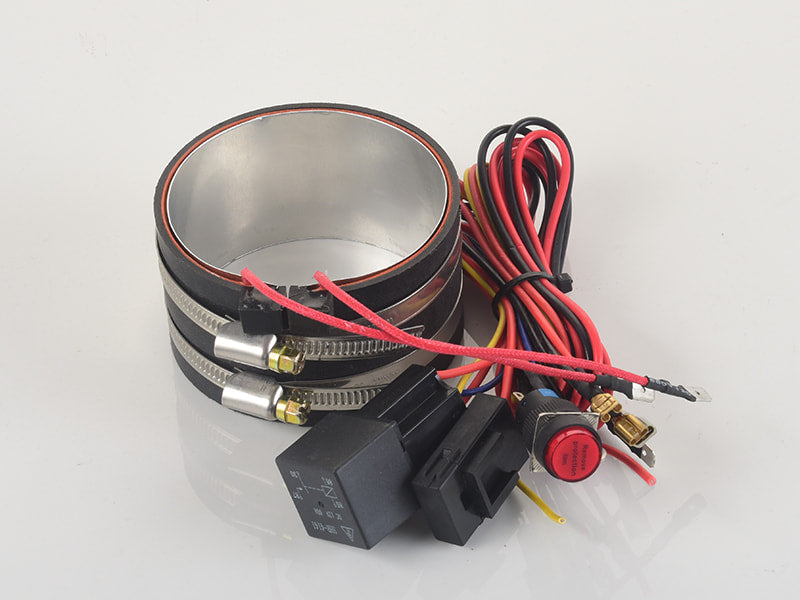

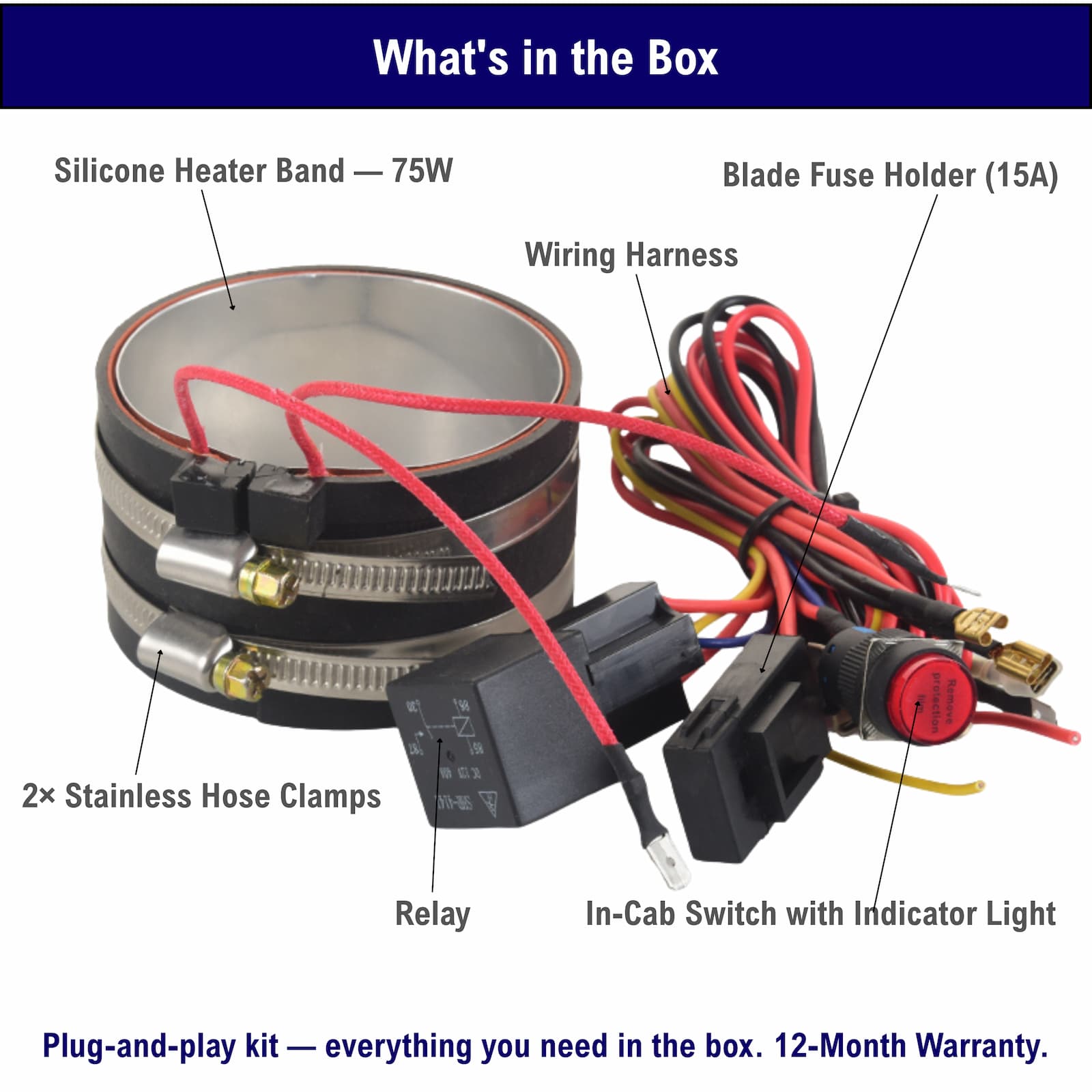

What's in the Box
- Zeus-F1 heater band ×1
- Wiring harness ×1
- Relay ×1
- Fuse box with 15A fuse ×1
- Indicator button ×1
- Hose clamps ×2
- Installation manual ×1

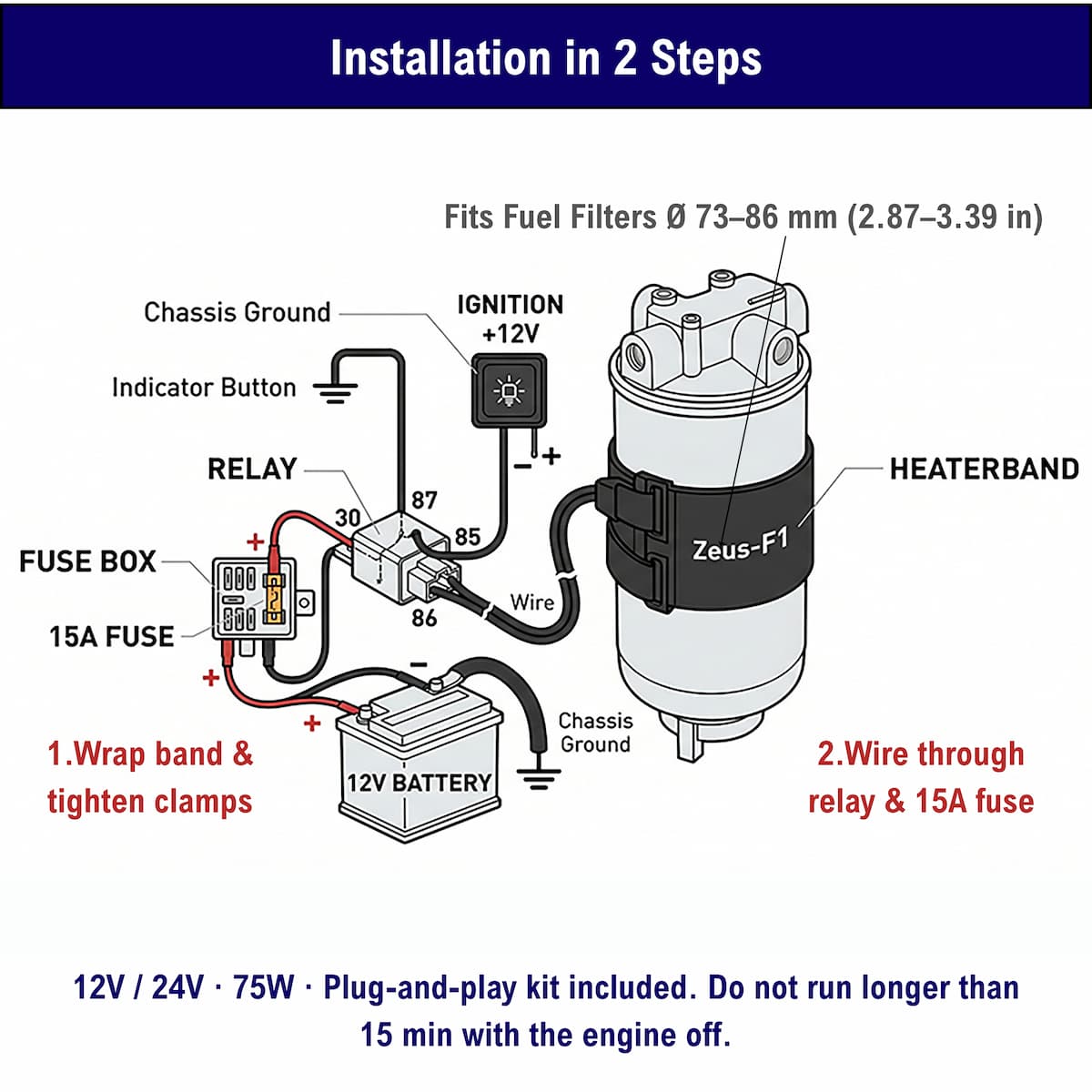

Install It in Under an Hour — No Cut Lines, No Drilling
You install the Zeus-F1 with basic hand tools. You never cut a fuel line or drill the housing.

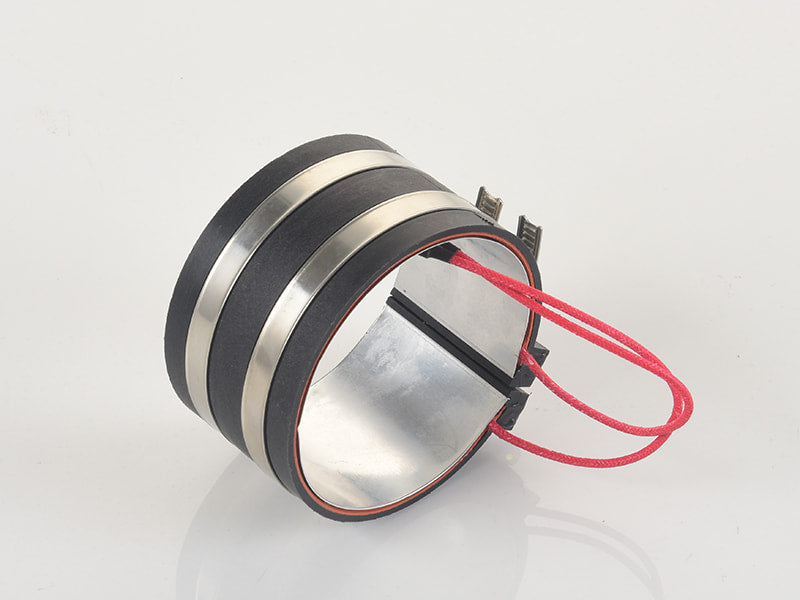

Step 1 — Wrap and clamp. Open the band and set it around your filter housing. The aluminum plate should sit flush on the filter. Tighten the two hose clamps until the band is secure.
Step 2 — Wire it through the relay. Run the cable from the band to the relay, then to the 15A fuse box, then the positive wire to your battery's positive terminal. Ground all chassis wires to the vehicle body.
Step 3 — Connect the ignition trigger. Tie the trigger wire to a switched +12V source — a wire that goes live with the key on. The relay then activates on its own when the engine runs.
Step 4 — Mount the indicator button. Fit the button inside the cab at a comfortable height. It shows when the heater is live and lets you switch it on by hand before you start.
Turn the key on, press the button, wait 3–6 minutes. Your filter is at working temperature.
⚠️ Do not run the heater more than 15 minutes with the engine off. It has no low-fuel or runaway protection when the engine isn't running, and it will drain your battery.
Built for Trucks, RVs, Tractors, and Generators
Long-haul trucks run the coldest stretches of a route with nowhere to stop. A blocked filter at 14°F (-10°C) doesn't just cost time — it costs the load.
RV owners park far from help. Tractor drivers can't push the morning schedule because the engine won't fire. Both need a filter that works the first time, every time.
Diesel generators sit in cold storage and must start on demand. A clogged filter at the wrong moment means no backup power when you actually need it.
In-Tank vs. Filter vs. Inline: Which Heater Do You Actually Need?
Cold hits fuel in three places — the tank, the filter, and the lines. Each heater targets one. Match the heater to where your fuel actually stalls.
| Heater | Where it heats | Choose it when |
|---|---|---|
|
Filter — Zeus-F1 (this page) |
The fuel filter housing, where wax clogs first | Your filter is the choke point — especially an aftermarket or external filter with no factory heater. The most common first upgrade. |
| In-Tank — Zeus-F3 | The fuel at the pickup, inside the tank | Fuel gels in the tank before it ever reaches the filter — extreme cold, big tanks, or fuel that sits cold overnight. |
| Inline — Zeus-F2 | The fuel line between tank and filter | Long, exposed fuel runs under the frame that gel mid-line before the filter sees the fuel. |
For full cold-weather cover, most owners pair the filter heater with the Zeus-F3 Diesel Fuel Tank Heater — it stops fuel gelling in the tank before it ever reaches your filter.
Frequently Asked Questions
How do I know which size to order?
Measure the outer diameter of your filter housing. If it falls between 73–86mm (2.9"–3.4"), order the standard band above — it's in stock. For housings up to 105mm, or for a fleet order, email info@vvkb.com with your diameter and we'll build the right size. If your filter sits in the overlap between two sizes, go with the larger band for a tighter clamp.
My aftermarket filter (AirDog, FASS, or a pre-filter) has no heater — is this what I need?
Yes — that gap is exactly what the Zeus-F1 fills. Many trucks heat only the factory filter, so an added pre-filter or external filter sits out in the cold and gels first. The band clamps onto any housing between 73–86mm and gives that filter its own heat.
My truck already has a factory fuel heater — do I still need one?
Maybe. Factory heaters warm only the factory filter, not a second or relocated filter you added. They also fail — a dead heater element quietly lets wax build up, because it isn't watched by your engine computer. The Zeus-F1 is a simple, self-contained backup with no shared failure point.
I already run winter-blend fuel and a block heater — do I still need this?
They cover different problems. A block heater warms the engine block, not your fuel — it does nothing for wax already forming in the filter. Winter-blend diesel helps, but its CFPP rating has a floor, and a hard cold snap or a bad batch drops below it. The Zeus-F1 keeps the filter itself warm, which is the one spot the other two never reach.
My filter is already clogged with gel — will the heater clear it?
No. Once wax has packed the filter media, heat won't bring it back — that filter needs replacing. The Zeus-F1 is preventive. It keeps the housing warm so crystals never form in the first place. Fit it before the cold, not during a no-start.
Is 75W enough — and could it overheat or cook my fuel?
No, it can't cook your fuel. The Zeus-F1 warms the filter just enough to keep wax and ice from forming — it doesn't boil fuel. The silicone element is self-limiting, so it needs no thermostat and won't run away. You reach working temperature in 3–6 minutes.
Will it drain my battery or be a fire risk if I leave it on?
Run it only 3–6 minutes before you start, and it barely touches a healthy battery. The silicone element is self-limiting, so it holds a safe temperature and won't run away or catch fire. But don't leave it on with the engine off for more than 15 minutes — with nothing charging the battery, longer runs flatten it.
Does it protect my tank and fuel lines too?
No — the Zeus-F1 heats the filter housing only. If fuel gels back in the tank or mid-line, a filter heater can't reach it. For full protection, pair it with the Zeus-F3 Diesel Fuel Tank Heater, which warms fuel before it leaves the tank.
Do I still need anti-gel additives if I run a filter heater?
Treat them as layers, not either-or. In moderate cold the Zeus-F1 handles the filter on its own. But additives can fall short on a bad batch of fuel or below -4°F (-20°C) — plenty of drivers have gelled up despite dosing the tank. The heater is the hardware backup that doesn't depend on the fuel being right.
Does it work on diesel oil-water separators?
Yes. The Zeus-F1 fits any cylindrical oil-water separator housing between 73–86mm (2.9"–3.4"). Same clamp, same wiring, same result as on a spin-on filter.
Which voltage do I order — 12V or 24V?
Order the one that matches your system. The heating band is voltage-specific, so a 12V band on a 24V truck won't heat properly, and a 24V band on 12V under-performs. Check your battery setup and pick 12V or 24V before you buy.
Keep Your Diesel Starting All Winter
A gelled filter is a preventable no-start. Clamp the Zeus-F1 on before the cold sets in, and your filter stays warm every morning.
Confirm your filter size, choose your voltage, and add the Zeus-F1 to your cart above.
